OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
59

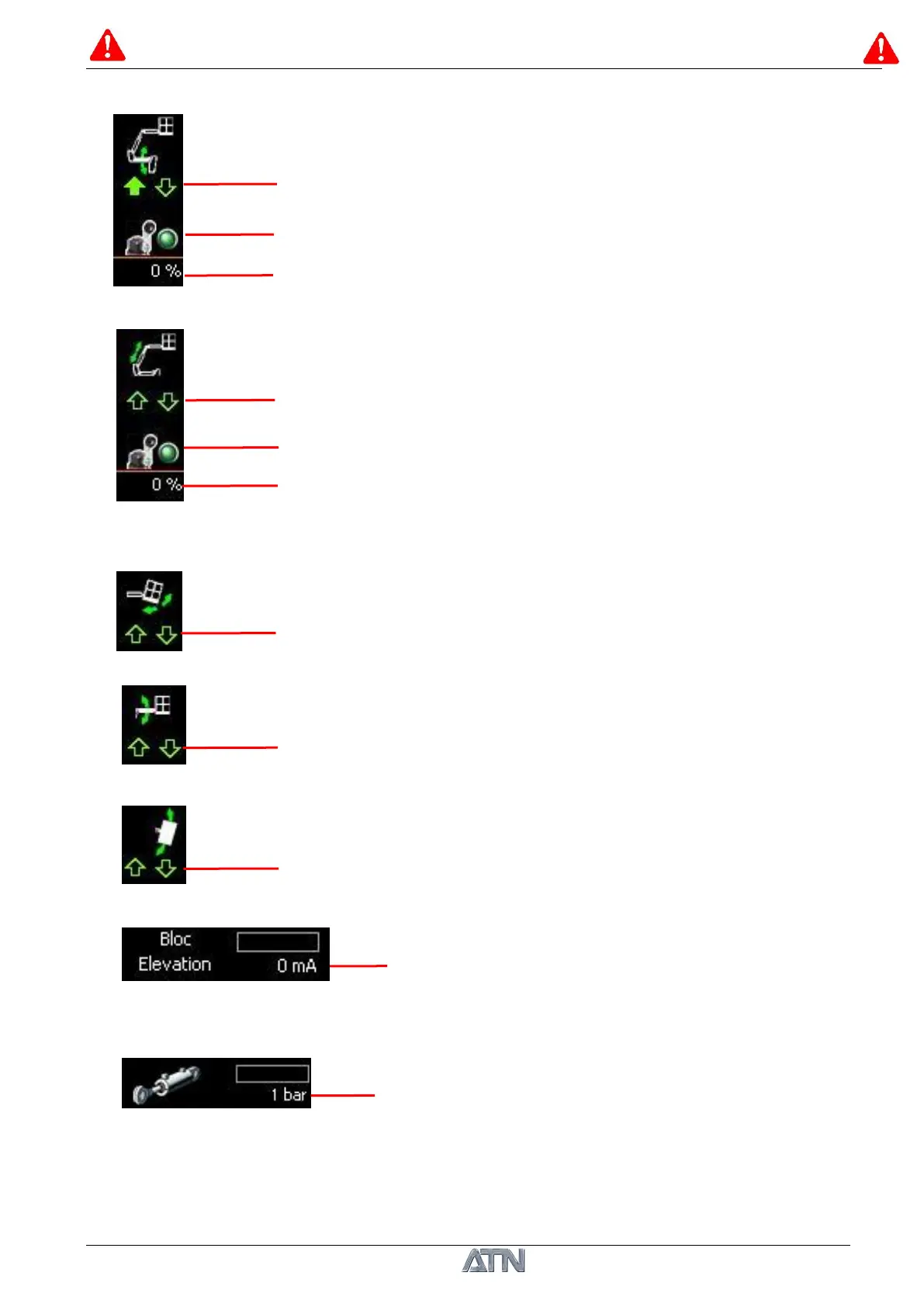

3- Entry parameters – Jib 1
4- Entry parameters – Telescope
5- Entry parameters – Levelling
The arrows light up when the corresponding movement is controlled
6- Entry parameters – Jib 3
The arrows light up when the corresponding movement is controlled
7- Entry parameters – Platform rotation
The arrows light up when the corresponding movement is controlled
8- Proportional valve control value.
9- Elevation manifold pressure value.
10- Light – Supply to the pressure relief valve electrically controlled : the light is on when the
pressure relief valve is actuated.
The arrows light up when the corresponding movement is controlled.
Status light - Jib 1 position sensor (the light is on when the jib is lowered).
Proportional valve control value
The arrows light up when the corresponding movement is controlled.
Status light - Telescope position sensor (the light is on when the telescope
is retracted).
Proportional valve control value
Proportional valve control value.
(Movements levelling, Jib 3, Platform Rotation /
Generator (Option))
Pressure value in the hydraulic circuit
