OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
60
11- Light - Overload.
Green light: admissible load not reached
Red light: admissible load exceeded
12- Light – Tilt / Tilt angle values.
Green light: admissible tilt not reached
Red light : admissible tilt not exceeded
13- Light – Enable button / auxillary group light actuated – Diesel engine start button
actuated.
14- Light - Diesel engine start button activated.

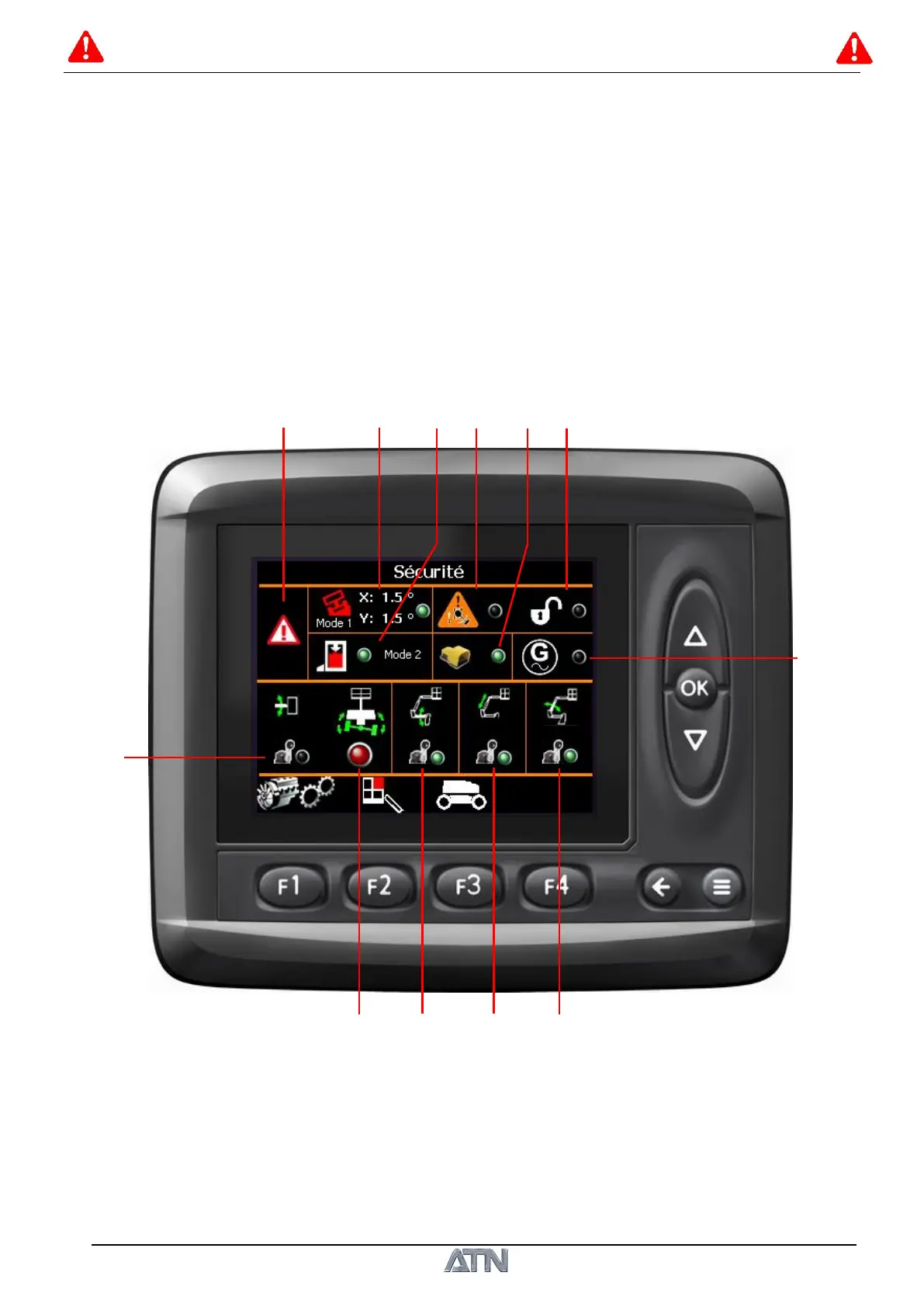

8.2.3 SAFETIES (F4)
1- Status light- Structure position sensor (the light is on when the tower is in line with the
chassis).
2- Status light - Oscillating axle unlocking valve control
Green light - unlocking valve piloted / oscillating axle unlocked
Red light - unlocking valve not piloted / oscillating axle locked
3- Status light - Jib 1 position sensor (the light is on when the arm is lowered).
(1)
(2)
(4)
(3)
(10
)
(6)
(8)
(5)
(12)
(7)
(9)
(11)
