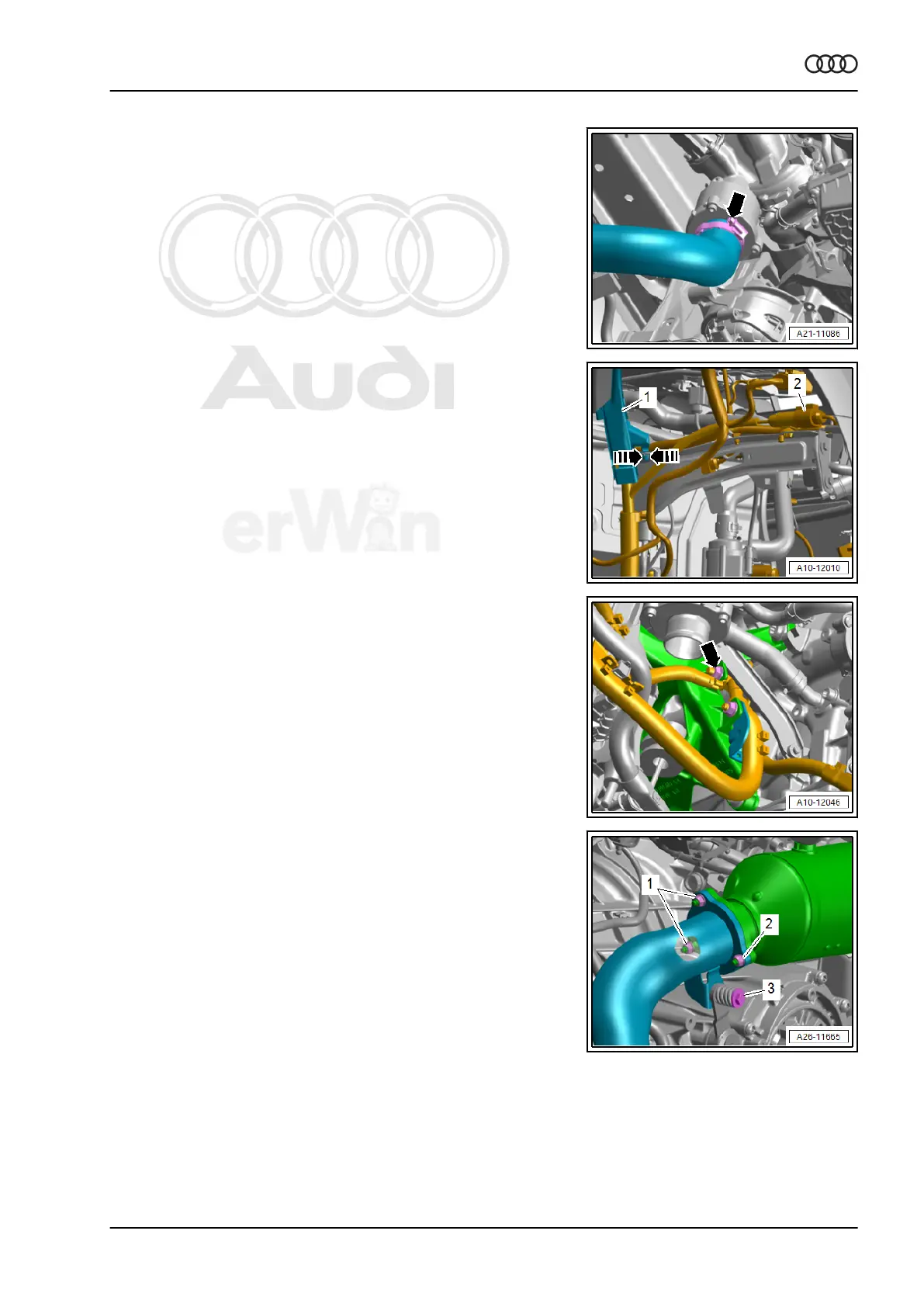

– Loosen the hose clamp -arrow- and remove the air duct hose
at the right from the turbocharger.
– Remove the connector -2- from the bracket and disconnect it.
– Release the retainers in direction of -arrows- and free up the
wiring duct -1-.
– Free up the wiring harness to the engine.
– Remove the nut -arrow- and free up the ground wire.
– Remove the right drive axle heat shield. Refer to ⇒ Suspen‐
sion, Wheels, Steering; Rep. Gr. 40 ; Drive Axle; Drive Axle
Heat Shield, Removing and Installing .
– Remove the left and right drive axles from the transmission.
Refer to ⇒ Suspension, Wheels, Steering; Rep. Gr. 40 ; Drive
Axle; Drive Axle, Removing and Installing .
– Remove the nut -2- and bolt -3- for the front muffler.
Audi A4 2015 ➤ , Audi A4 China 2016 ➤ , Audi A5 2016 ➤
4-Cylinder Direct Injection 2.0L 4V TFSI Engine (EA 888 Generation III) - Edition 11.2019
1. Engine, Removing and Installing 9
