iD48 Master clock via ADAT or S/PDIF
In this setup, the iD48 would be acting as the master clock and sending the clock to an external
device via the Optical ports.

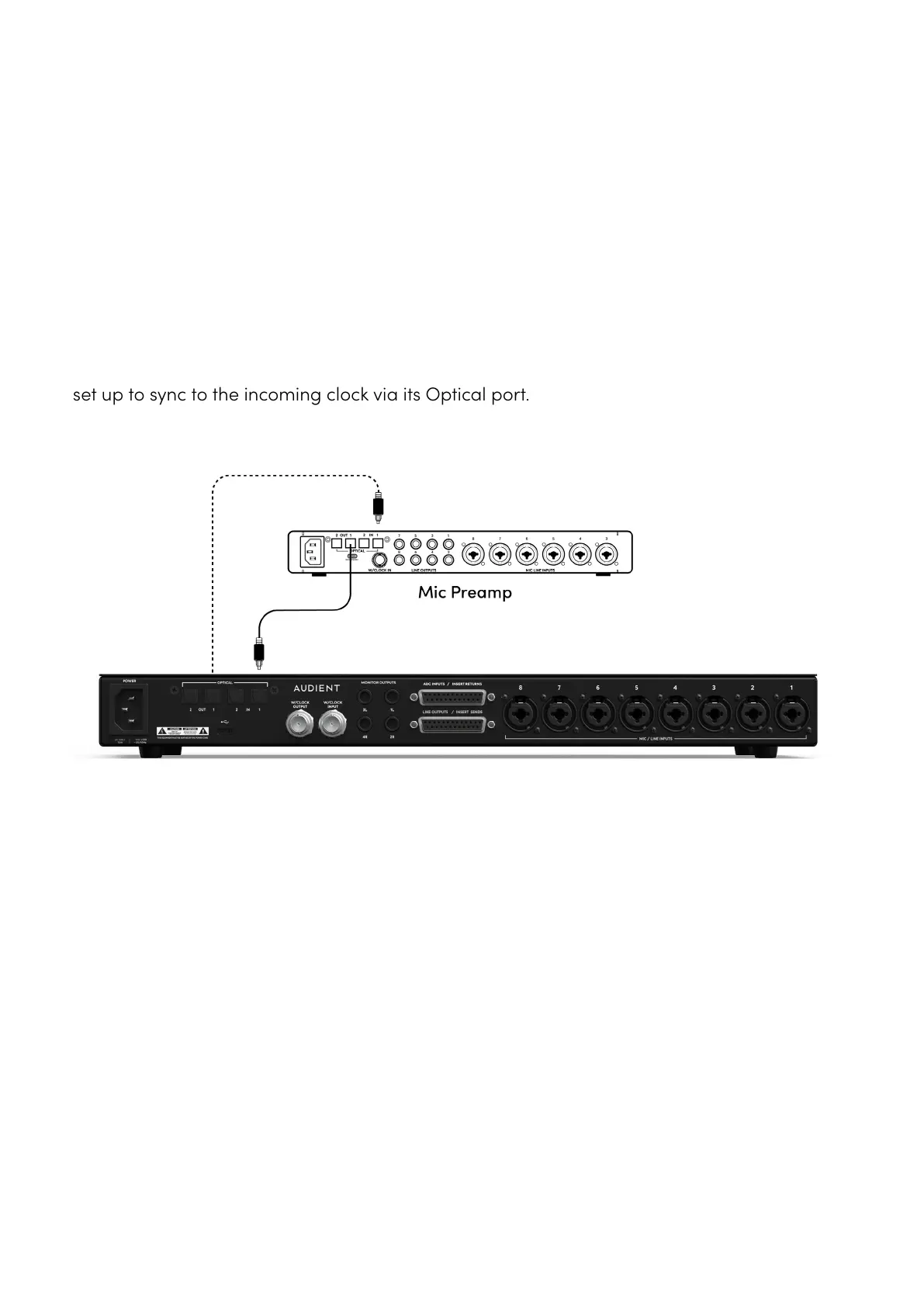

The External Device’s Optical output is connected to iD48’s Optical Input 1 and iD48’s Optical
Output 1 is connected to the external device’s Optical Input.
The iD48’s Clock source is set to Internal as it is acting as the master clock. The external device
is set up to sync to the incoming clock via its Optical port.
