Audio Ltd. Envoy - MXiR Receiver; Controls, Displays, and Connections

88
29
CHAPTER
6
MXiR Receiver
The MX iR is a multi-frequency UHF non-diversity
receiver, with an integral battery compartment for
portable use with a mixer or camcorder. All settings
can be read or changed via infra-red control using
the Switch
iR .
○○○ ○○○○○○○○○○○○○○○○○○○○○
Controls, displays, and connections

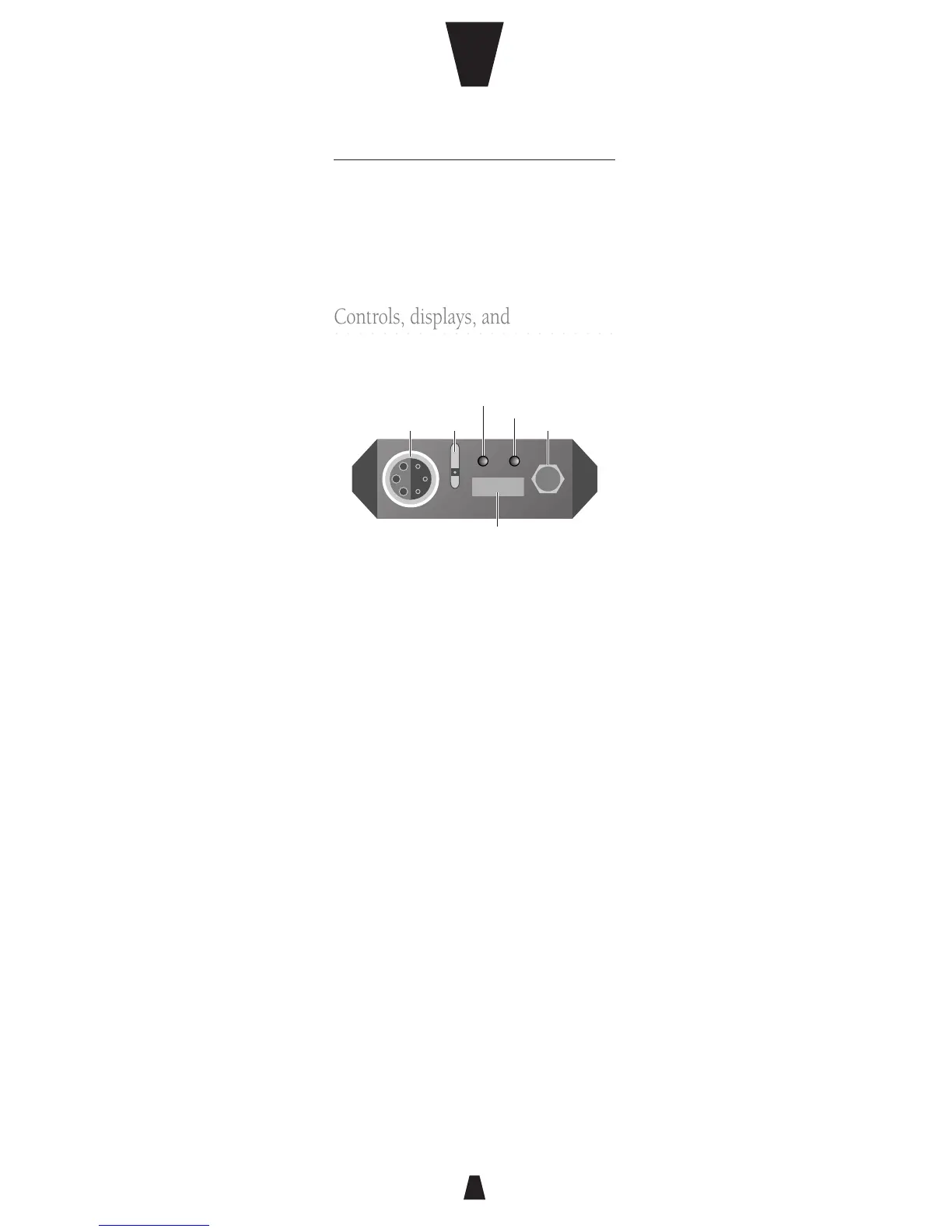

Top panel
Antenna
No signal (red)
Low battery
RX (green)
TX (red)
Infra-red
port
Audio
output
On/Off
Audio output
Provides balanced microphone level and adjustable
headphone outputs.
On/Off
Switches the power on or off. The output cable includes
a link which disconnects power when the Lemo plug is
removed, in which case the switch can be left on.
Low battery indicator
Illuminates red when the unit detects low battery power
in the transmitter, and green when the unit detects low
battery power in the receiver. The units should not be
used when a low battery indicator is illuminated as poor
operation may result.
No signal indicator
Illuminated when no carrier signal is being received,
such as when the transmitter is switched off or set to an
incorrect frequency.
Antenna
SMA socket to which the antenna is connected.
Infra-red port
Receives commands from and transmits status
information back to the Switch
iR infra-red controller.
