Audio Ltd. Envoy - Cable Wiring Diagrams

88
41
CHAPTER
9
Cable wiring
diagrams

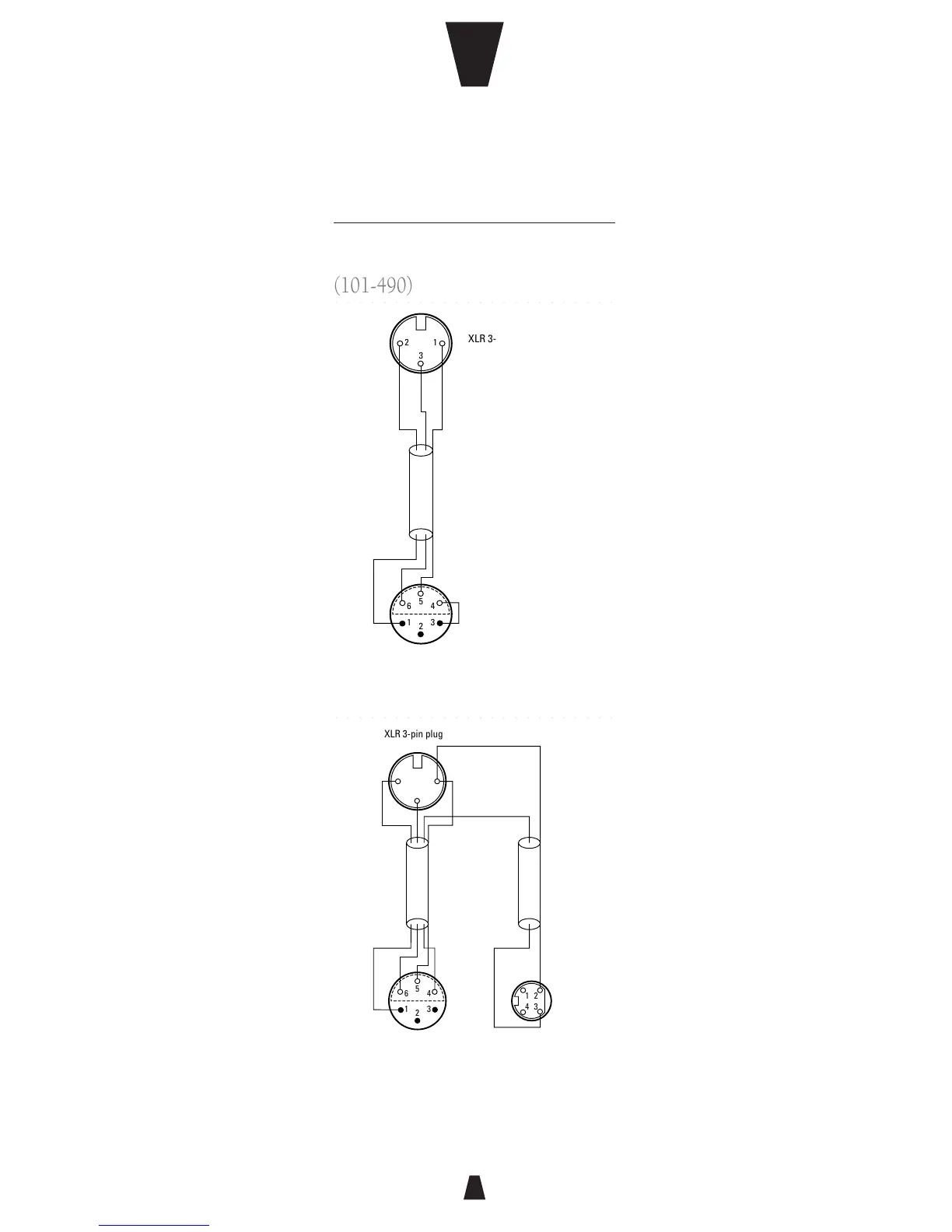

Receiver/RK 2 output cable
○○○ ○○○○○○○○○○○○○○○○○○○○○
(101-490)
12
3
2
64
31
5
XLR 3-pin plug
viewed from solder side
Lemo 6-pin plug
viewed from solder side
Receiver/RK 2 output and mixer
○○○ ○○○○○○○○○○○○○○○○○○○○○
power cable (900-017)
12
3
2
64
3
1
4
2
3
1
5
XLR 3-pin plug viewed from solder side
Lemo 6-pin plug
viewed from solder side
Hirose 4-pin plug
viewed from solder side
