Page 29

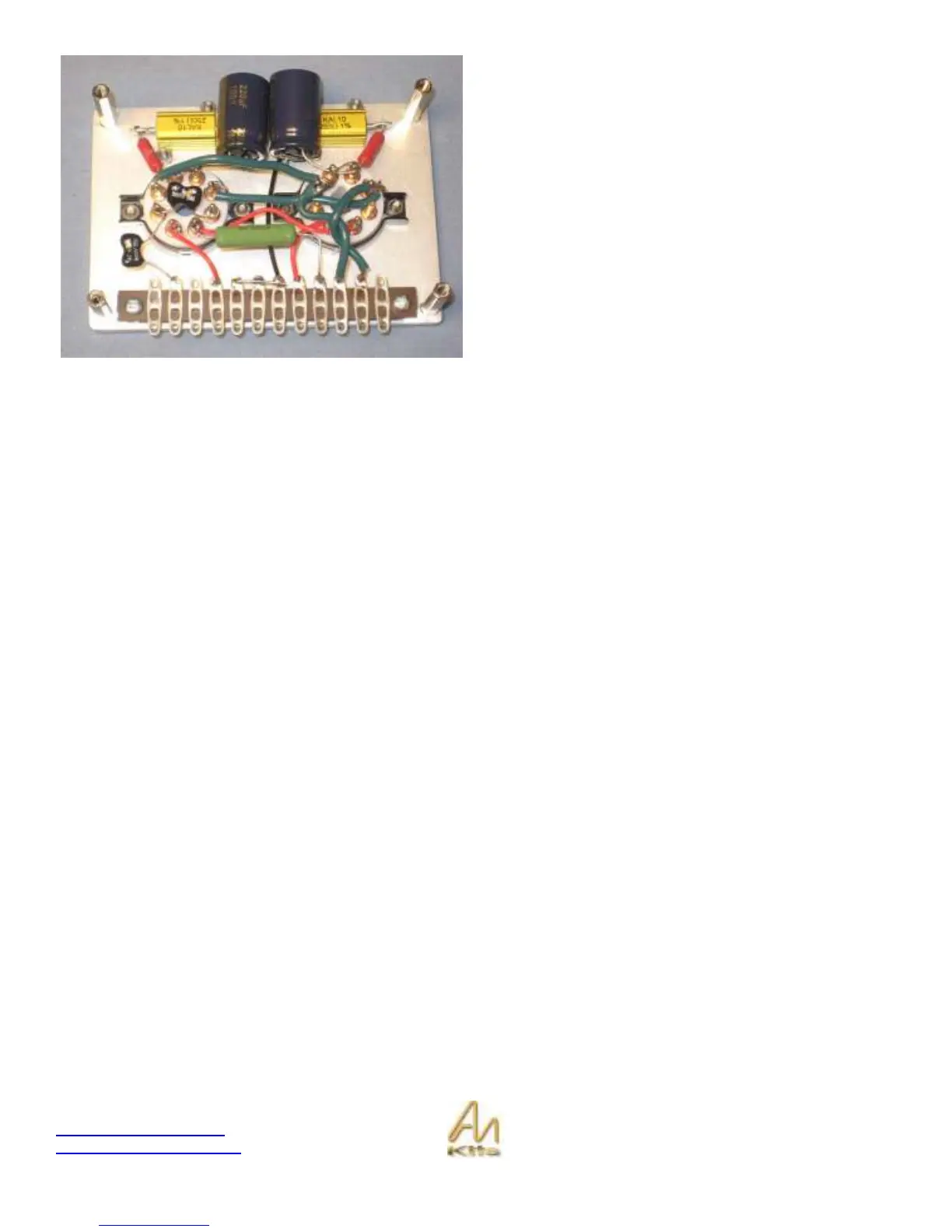

Then you can twist these wires slightly and connect to pins
2 & 7 of the right EL34 valve base.
Congratulations! Well done if you have made it this far.
You will have to repeat this whole board build for the other
channel but I think a good nights sleep is in order!
