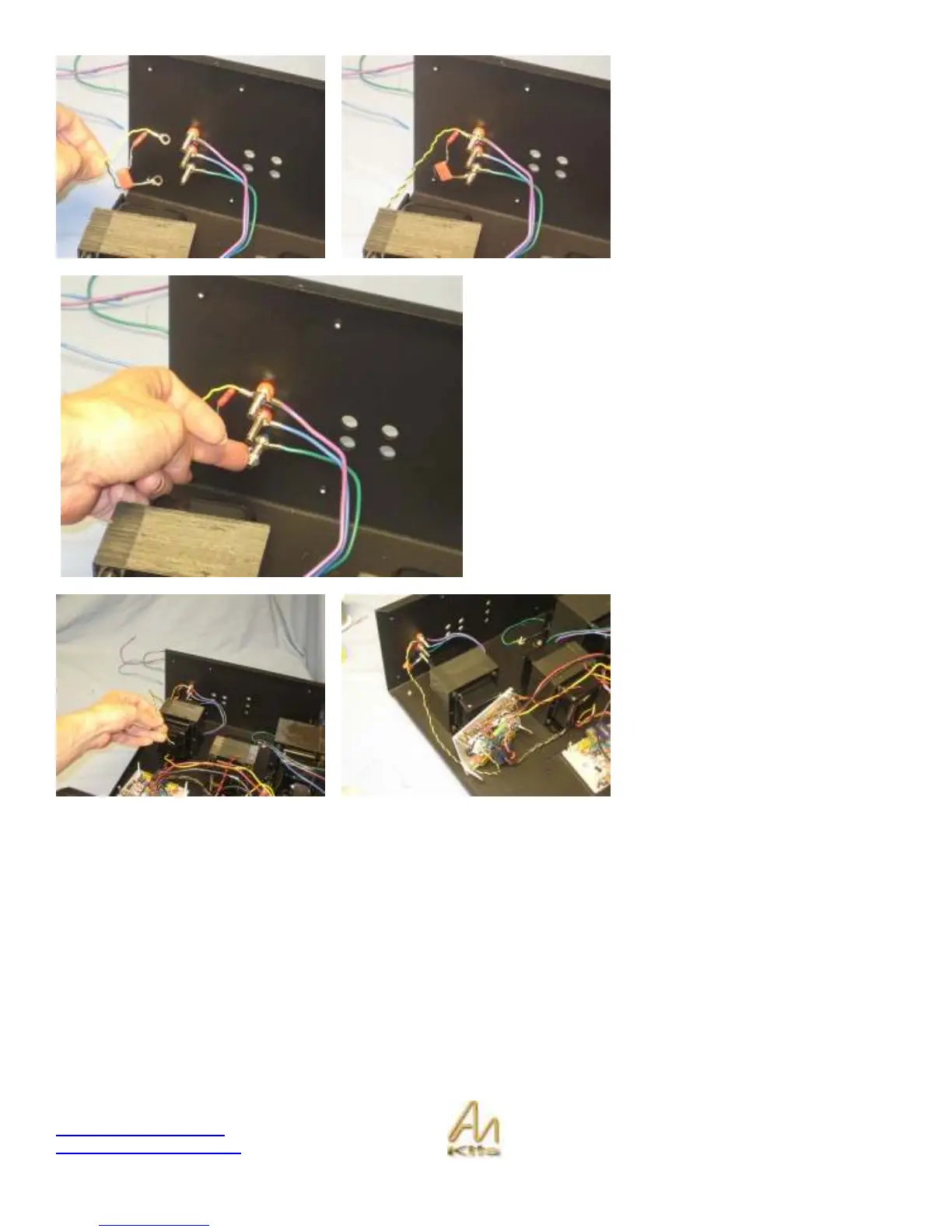

Here we are placing the assembly
onto the speaker posts – be sure to
position the resistor and the yellow
wire side on the 8 ohm post and the
cap and black wire on the ground post.
You can now use a nut to finalize each speaker post
connection.
Well done – now lets complete the wiring of the twisted
yellow and black on the other end...
Take the yellow black wire and trim the
ends.
Position your EL34 board as shown
and route the wire under the board.
