Page 40

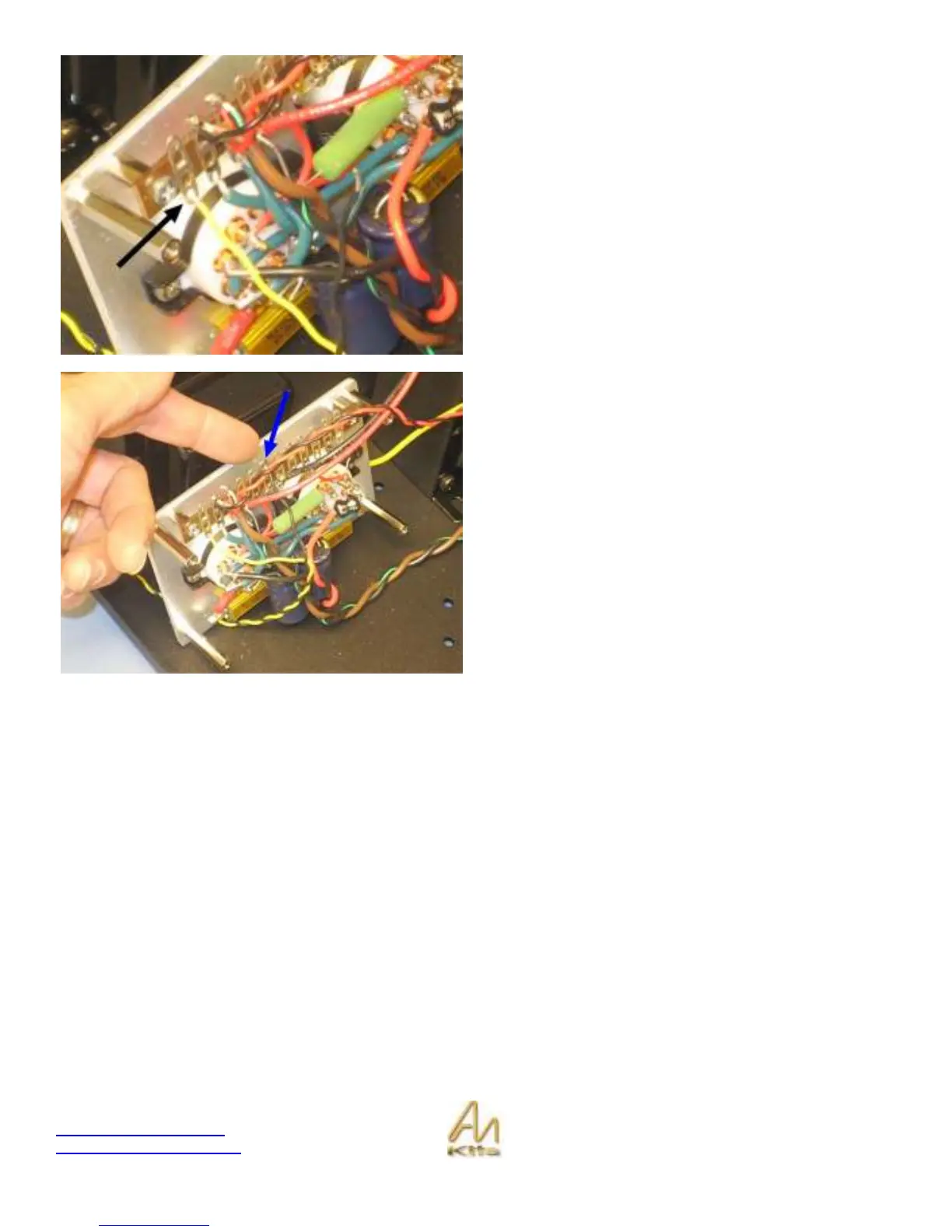

Solder the yellow wire into TAG position 1 – this is beside
the filament – remember you are looking at the board
upside down.
We will be connecting to that same terminal later from the
Driver Board.
Wire the black wire from the twisted yellow black into the
PGND position 6 7 or 8 – Note you may want to keep the
wire on the valve base side of the tag strip so that you can
use these holes when connecting to the ECF80 board later.
Well done once again – Now you just have to repeat the
process for the other channel! Maybe take a break or
charge ahead!
