System configuration examples

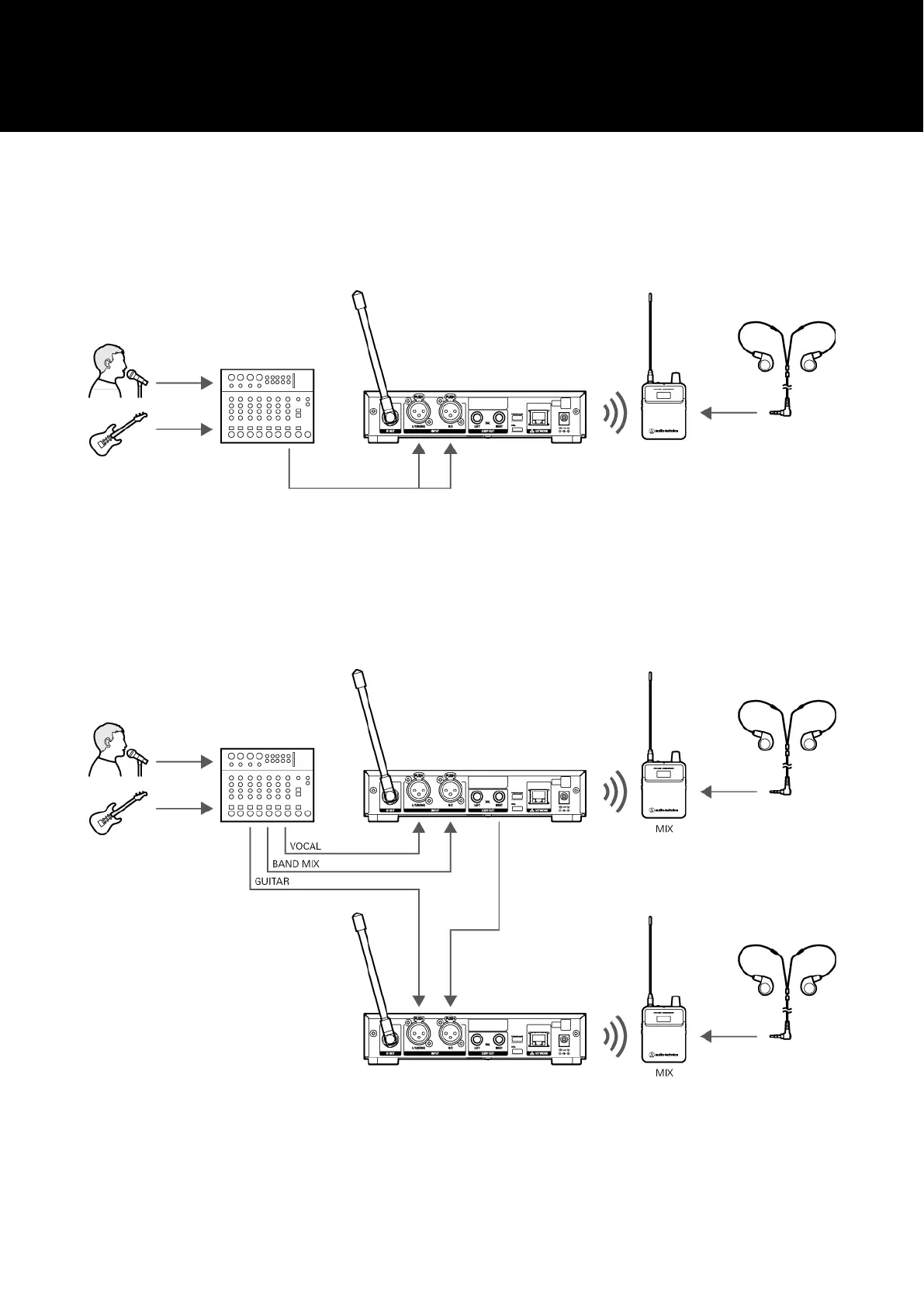

Basic connection example
The mixer mixes the sound of vocals, guitars, and other instruments, transmits that sound from the transmitter to the
receiver, and monitors it through headphones from the receiver.
Loop out connection example (1)
Use the loop out to send the band mix from the mixer and individual vocals, guitars, and other instrument sounds from
the transmitter to the receiver, mix them at the receiver, and monitor them through headphones. The band mix is shared
to all transmitters using the loop out, with individual sound and mix balance adjustments.
