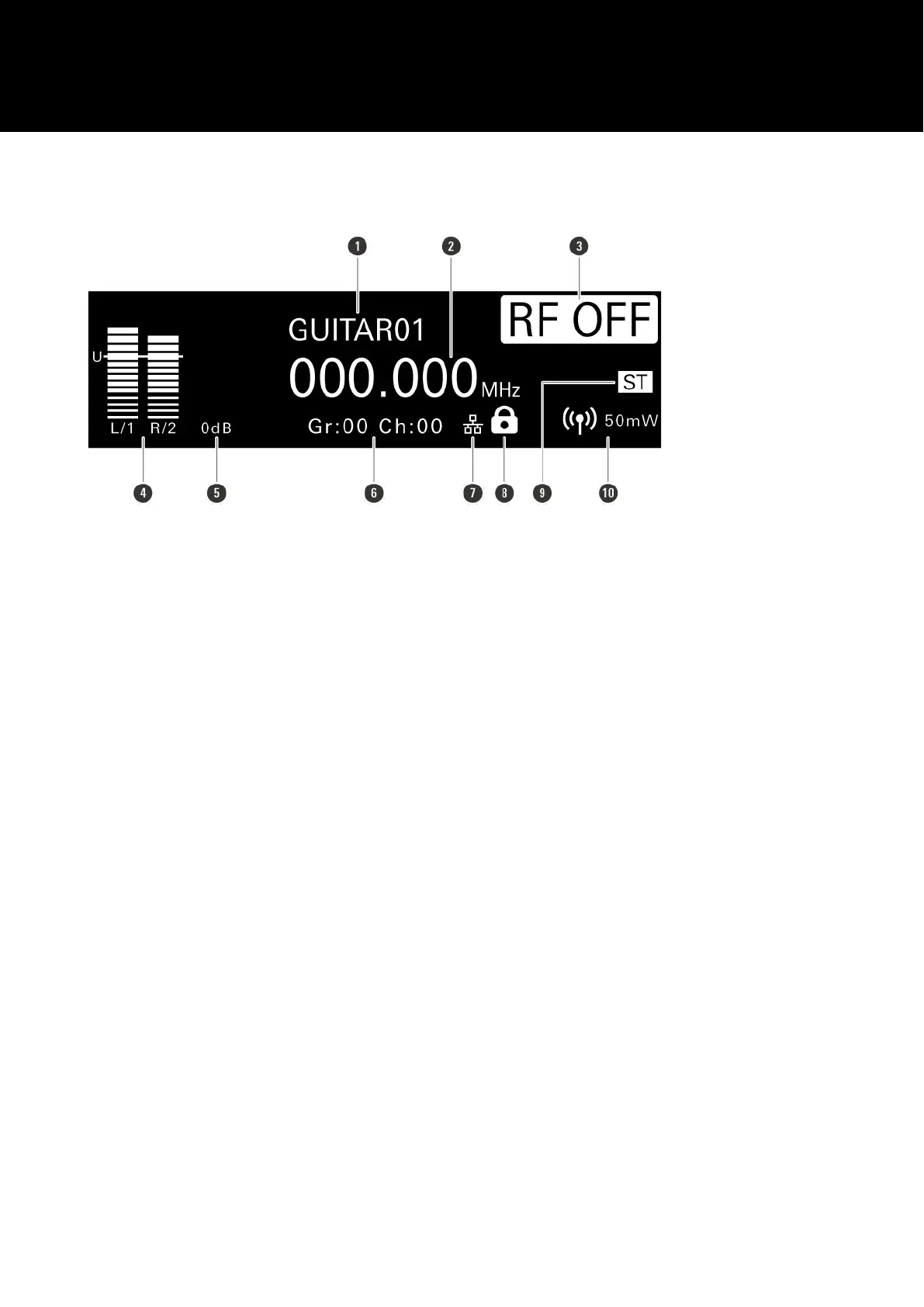

How to read the display
ATW-T3205
➊ Name display
Displays the specified name.
➋ Frequency indicator
Displays the specified frequency.
➌ RF OFF indicator
Indicates when the RF output is turned off.
➍ AF level indicator
Displays the level of the audio signal output from the transmitter to the receiver.
When Mode is set to “Mono” or “3000Link”, only L/1 is displayed.
For AF peak, “!” mark will appear.
➎ Audio i
nput level
indicator
➏ Group and channel display
➐ Network display
Icon is displayed when the transmitter is connected to a network.
➑ Lock status display
➒ RF mode display
ST: Stereo
MO: Mono
3KL: 3000Link
➓ RF power display
