AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
Table 3-4: FXO Module LED Description
Color State Description
Green On Off-hooks the line toward the PBX.
Blinking Detects a ring signal from the PBX.
Red On Error - malfunction in line or out of service due to Serial Peripheral
Interface (SPI) failure.
BRI Module
The BRI module provides the Integrated Services Digital Network (ISDN), Basic Rate Interface
(BRI) interfaces. Up to five BRI modules can be installed in the device. Each BRI module can
provide up to four BRI line interfaces and therefore, the device can support up to 20 BRI
interfaces (i.e., 5 modules x 4 ports).
Ports Description
Each BRI module provides up to four analog RJ-45 ports. The ports are labeled I, II, III, and IIII.

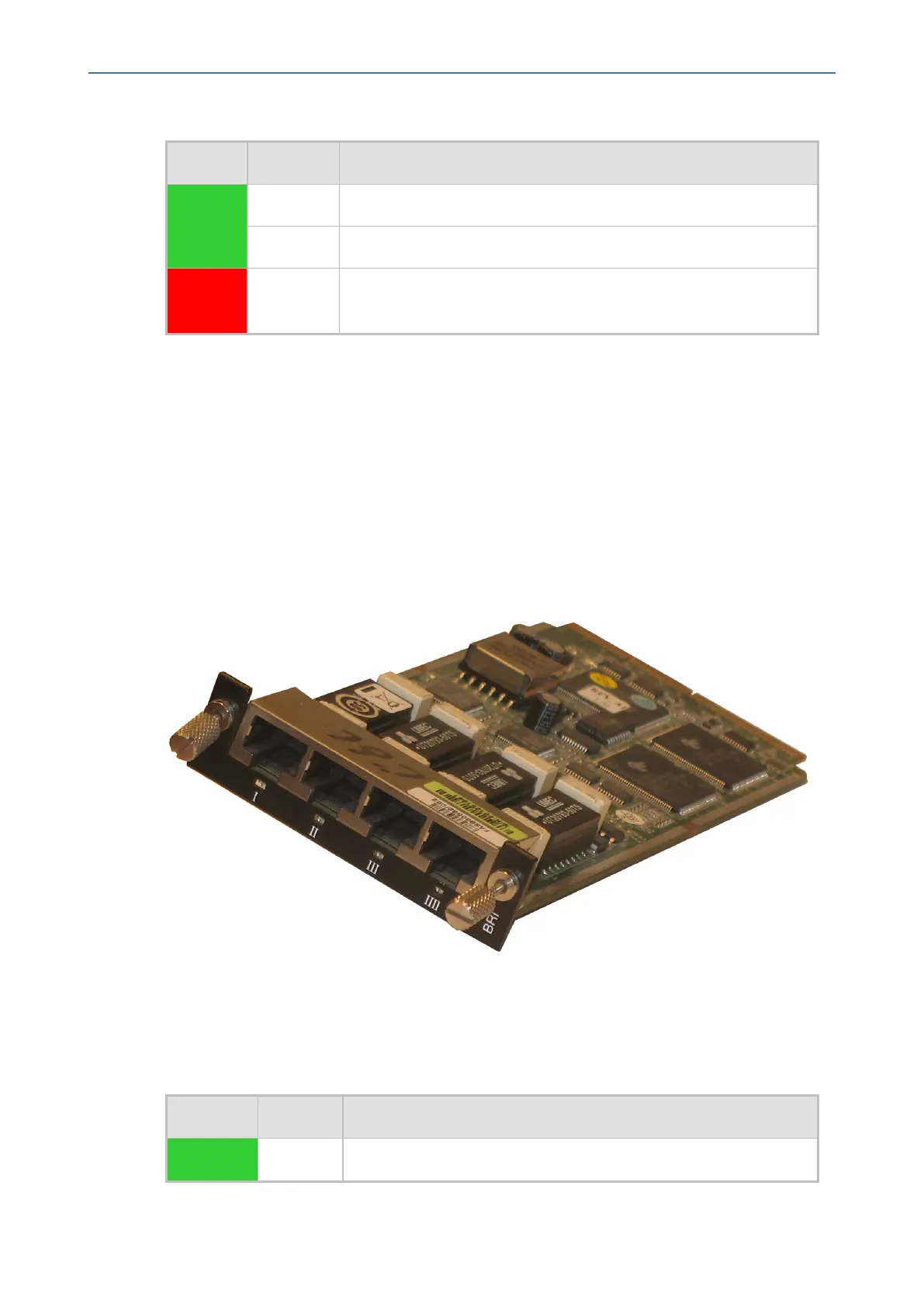

Figure 3-4: BRI Module
LED Description
Each BRI port provides a LED indicating operating status, as described in the following table:
Table 3-5: BRI Module LED Description
Color State Description
Green On Physical layer (Layer 1) is synchronized (normal operation).
- 7 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
