AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
● Assurez-vous que les ports FXS sont connectés aux appareils externes
appropriés ; autrement, vous risquez d’endommager l’appareil.
The FXS module is a separate orderable item. This section is applicable only if your
device is installed with such a module.
Indoor FXS Cabling
The following procedure describes how to cable FXS ports for indoor routing. Any FXS module
can be used (see FXS Module ).
Cabling specifications:
■ Cable: Standard straight-through RJ-11-to-RJ-11 telephone cable
■ Connector: RJ-11
■ Connector Pinouts:

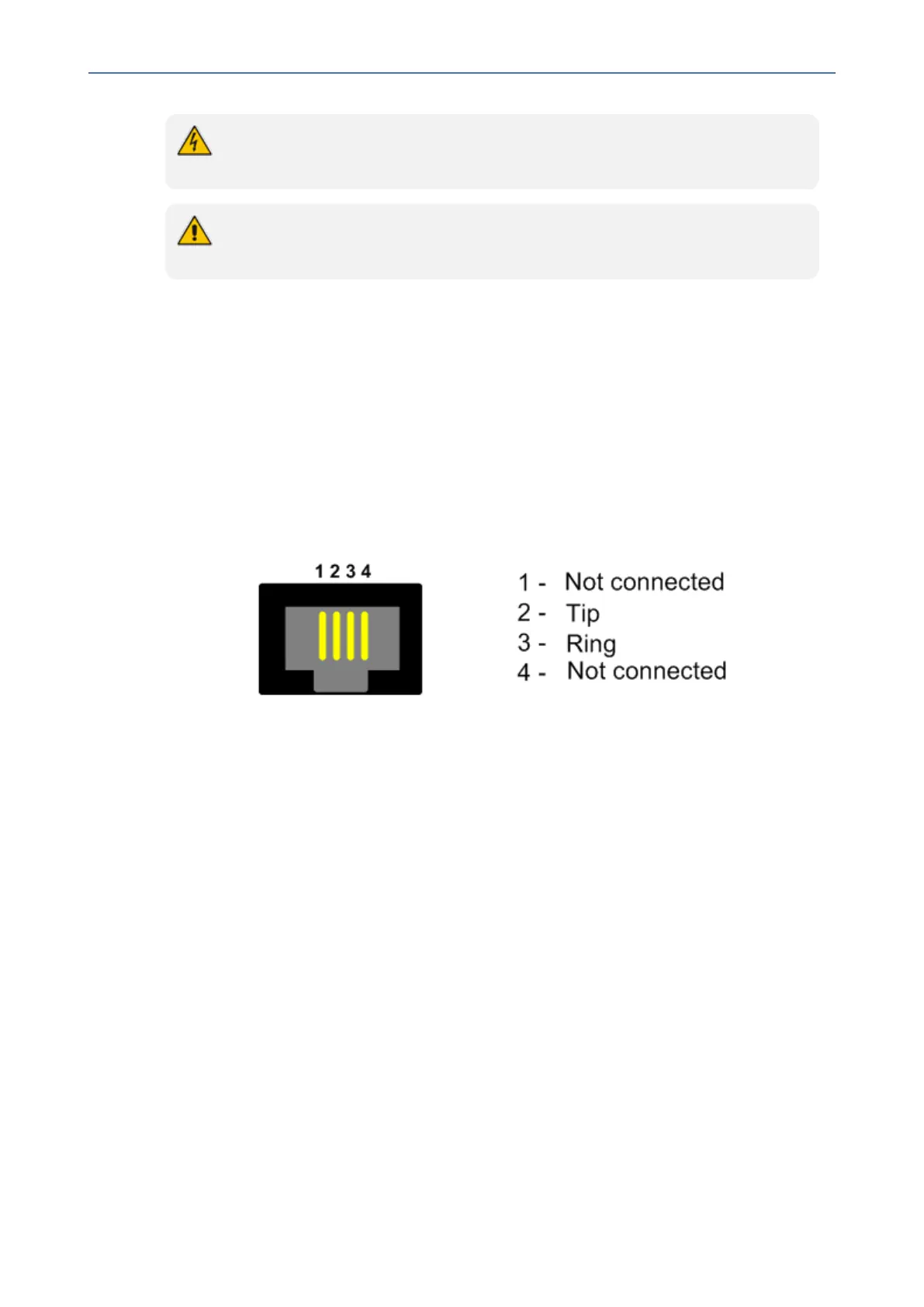

Figure 5-5: RJ-11 Connector Pinouts for FXS
➢ To connect FXS interfaces for indoor routing:
1. Connect one end of the straight-through RJ-11 cable to the RJ-11 port on the FXS module.
2. Connect the other end of the cable to the RJ-11 port on the analog equipment (e.g.,
telephone or fax machine).
- 37 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
