AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER6 Hardware Maintenance
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
Replacing Blank-Panel Slot Covers with I/O Modules
The procedure below describes how to install a module into a slot that is currently not used
(unoccupied) and covered by a blank panel.
Before replacing a blank-panel slot cover with a module, power down the device.
(French) Avertissement: Assurez-vous de bien éteindre l’appareil avant d’installer un
module dans une fente vide.
➢ To replace a blank-panel slot cover with a module:
1. Power down the device.
2. On the device's front panel, locate the two screws securing the blank-panel slot cover to
the slot in which you want to install the module.

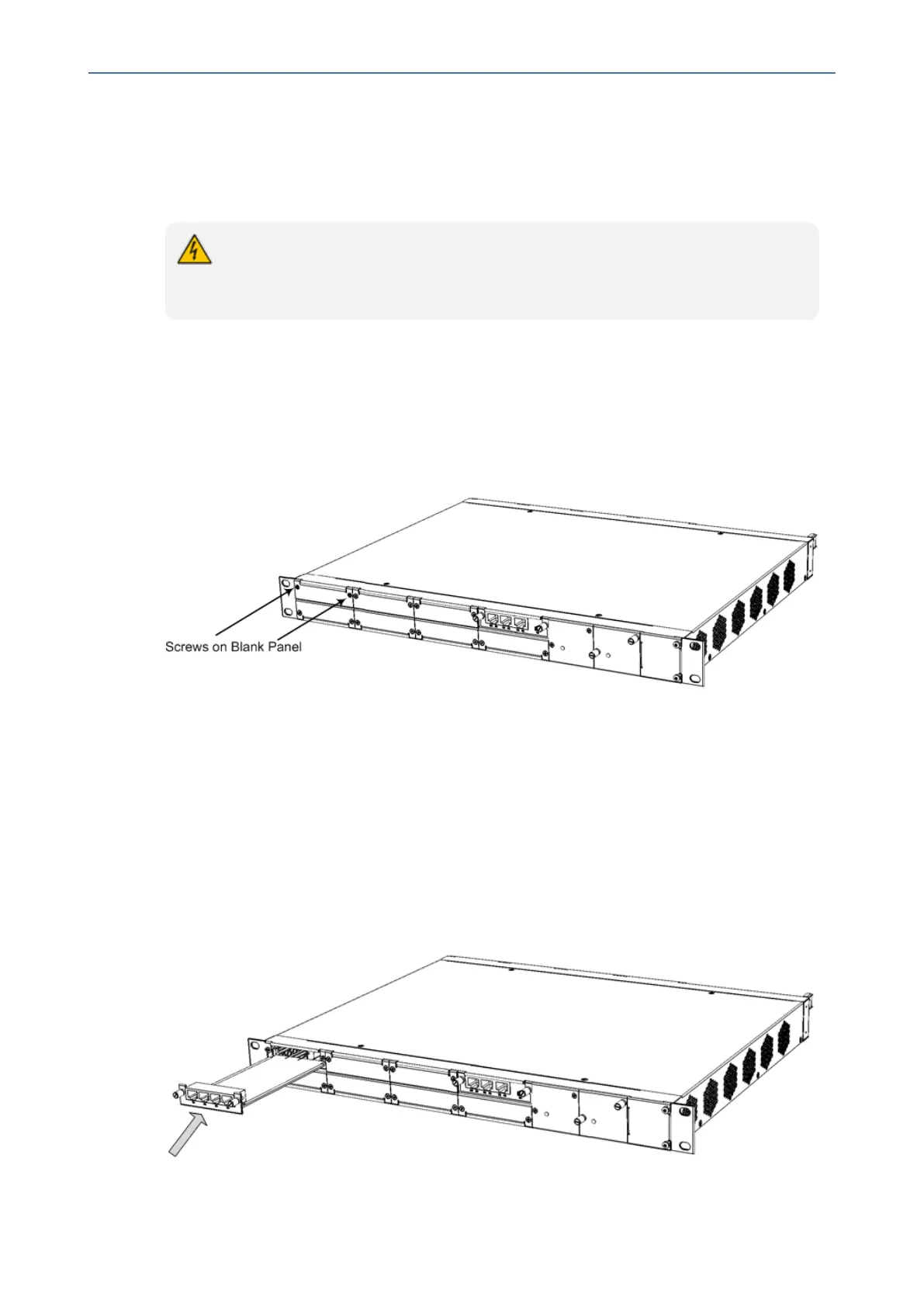

Figure 6-4: Screws on Blank-Panel Slot Cover
3. Using a Phillips screwdriver, unscrew the two screws to remove the blank-panel slot cover
from the chassis.
4. Gently insert the module into the empty slot, aligning the module with the rails in the slot
in the following module orientation, depending on whether you are inserting it in the top-
or bottom-row slots:
● Top-row slots: Ensure that the module is orientated such that the port-number labels
are located at the bottom of the module's front panel. This module orientation is
considered as facing up.
Figure 6-5: Inserting a Module into the Empty Slot
- 59 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
