AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

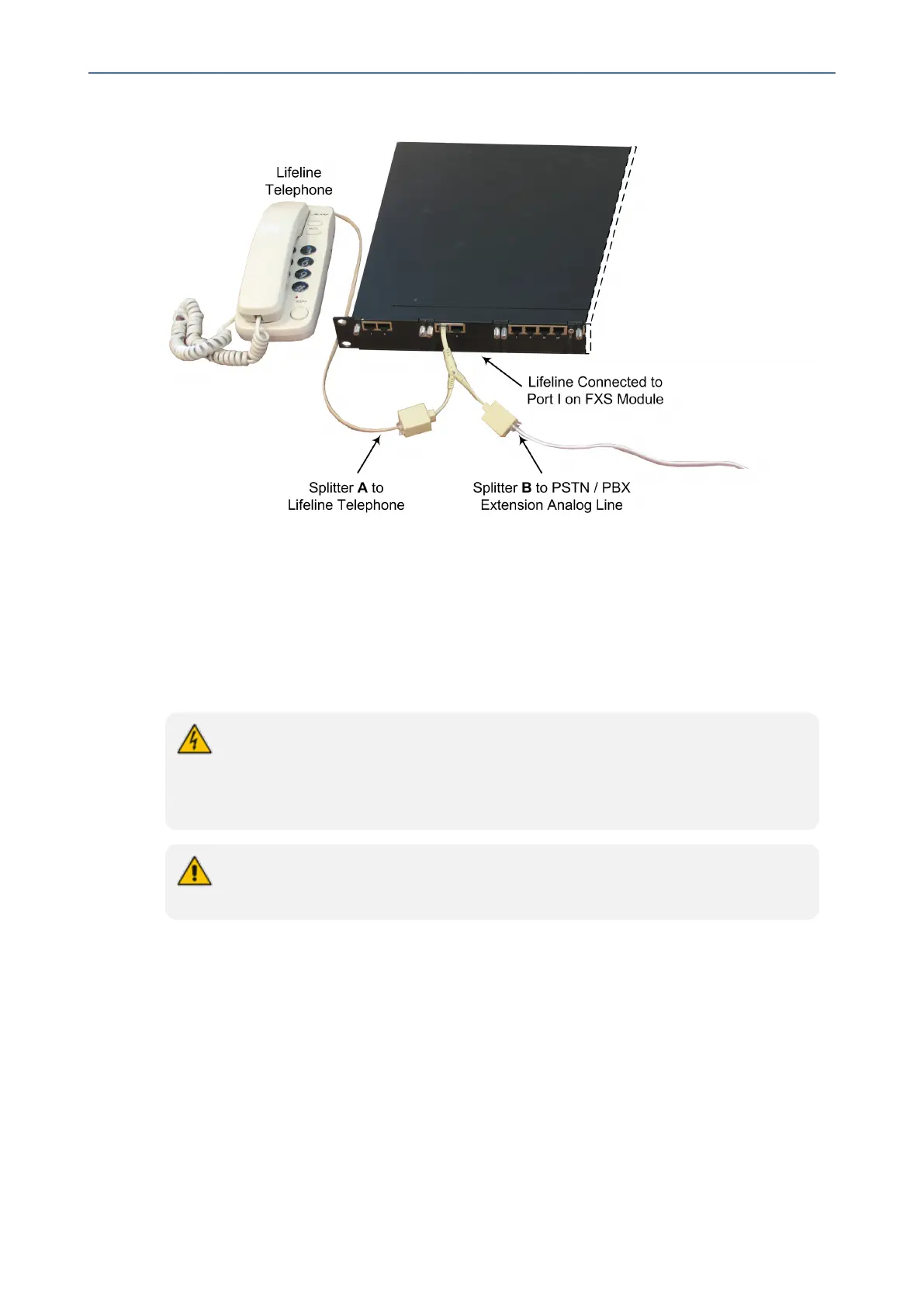

Figure 5-13: Cabling the Analog Lifeline
ISDN BRI Interfaces
This section describes the cabling procedures for BRI interfaces.
Connecting to BRI Lines
The procedure below describes how to connect to BRI lines.
To protect against electrical shock and fire, use a 26 AWG min. wire to connect the
BRI ports to the PSTN.
Avertissements: Pour vous protéger contre l’électrocution et le feu, utilisez un fil de
26 AWG au minimum pour connecter le port BRI au PSTN.
The BRI module is a separate orderable item. This section is applicable only if your
device is installed with such a module.
Cabling specifications:
■ Cable: 26 AWG min.
■ Connector: RJ-45
■ Connector Pinouts: A BRI port can be configured either as TE (Termination Equipment/user
side) or NT (Network Termination/network side). The connector pinouts vary according to
the configuration, as shown below:
- 45 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
