CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
b. Insert the wire into the connector, and then release the orange button to close the
connector, securing the wire in place.

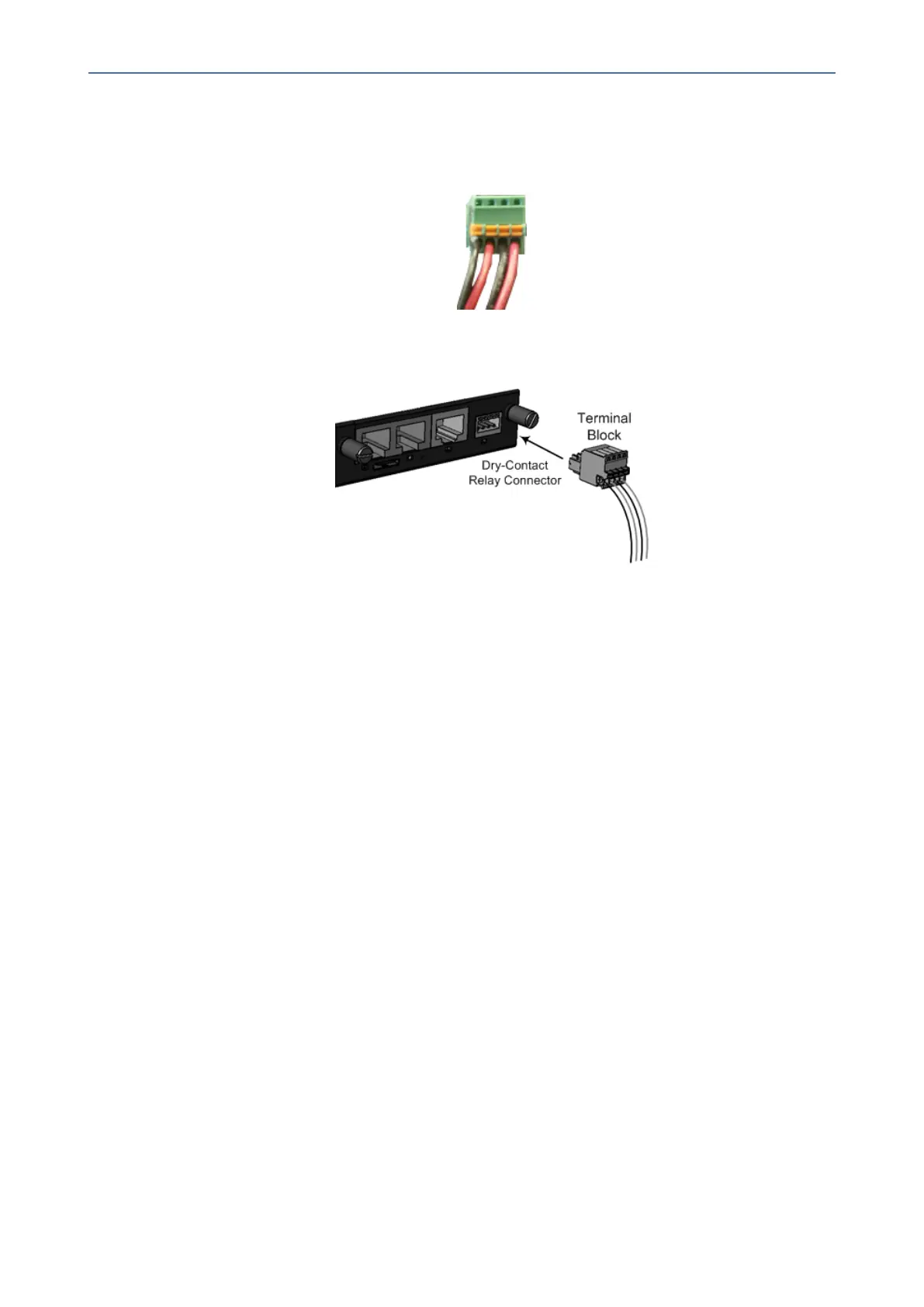

Figure 5-20: Wires Inserted in Terminal Block
2. Plug the terminal block into the dry-contact relay connector on the CRMX module:
Figure 5-21: Plugging Terminal block into Dry-Contact Relay Connector
3. Connect the other ends of the dry-contact wires to your external alarm system, according
to your requirements.
Cabling and Installing OSN Server Platform
This section is intended for customers who wish to install the optional Open Solution Network
(OSN) server platform functionality. The OSN platform allows you to host third- party
applications such as an IP PBX, Pre-Paid, and IP PBX redundancy.
The OSN platform includes a hard disk to provide a complete solution within the device's
chassis. The OSN is based on single and mid- sized Advanced Mezzanine Card / AMC
(AdvancedMC form-factor) modules. These are housed in the chassis' AMC slots on the rear
panel.
The OSN can run on Linux™ or Microsoft Windows® operating systems. To install an operating
system on your OSN4B server, follow the procedure below.
➢ To install the operating system on OSN4B:
1. Disconnect the power cord from the power source, and then remove the power cord from
the power connection on the power socket.
2. Connect the USB port, located on the module, to a USB hub, and then connect the USB hub
to the following computer peripherals:
● Mouse
● Keyboard
- 52 -
