AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

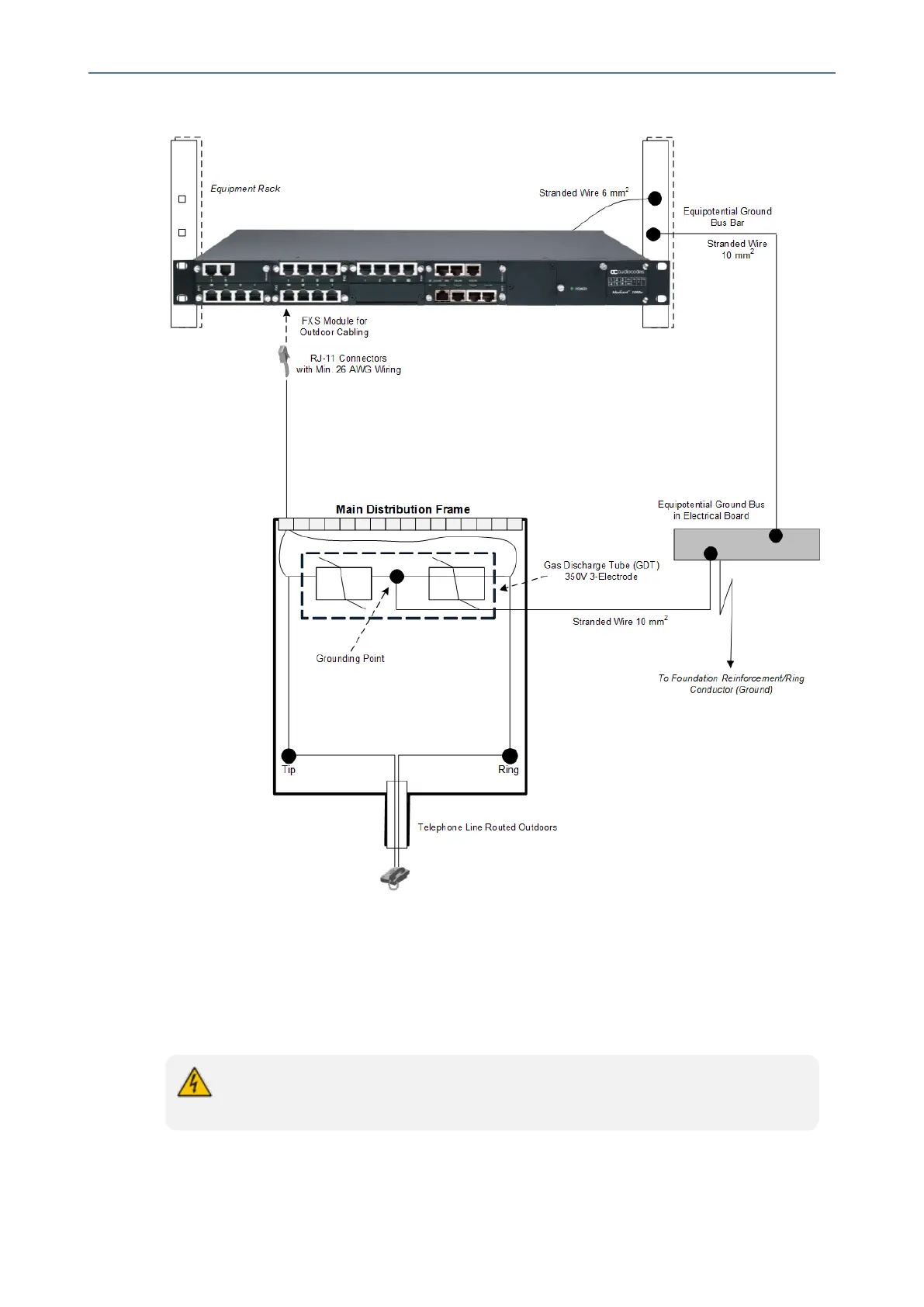

Figure 5-8: FXS Cabling for Outdoor Routing
5. Connect the telephone line from the MDF to your analog equipment.
Connecting to FXO Interfaces
The procedure below describes how to connect the FXO port interfaces to telephone exchange
analog lines or PBX extensions.
● To protect against electrical shock and fire, use a 26 AWG min wire to connect
FXO ports to the PSTN.
- 40 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
