AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
Cabling specifications:
■ Cable: Standard straight-through RJ-11-to-RJ-11 telephone cable
■ Connector: RJ-11
■ Connector Pinouts:

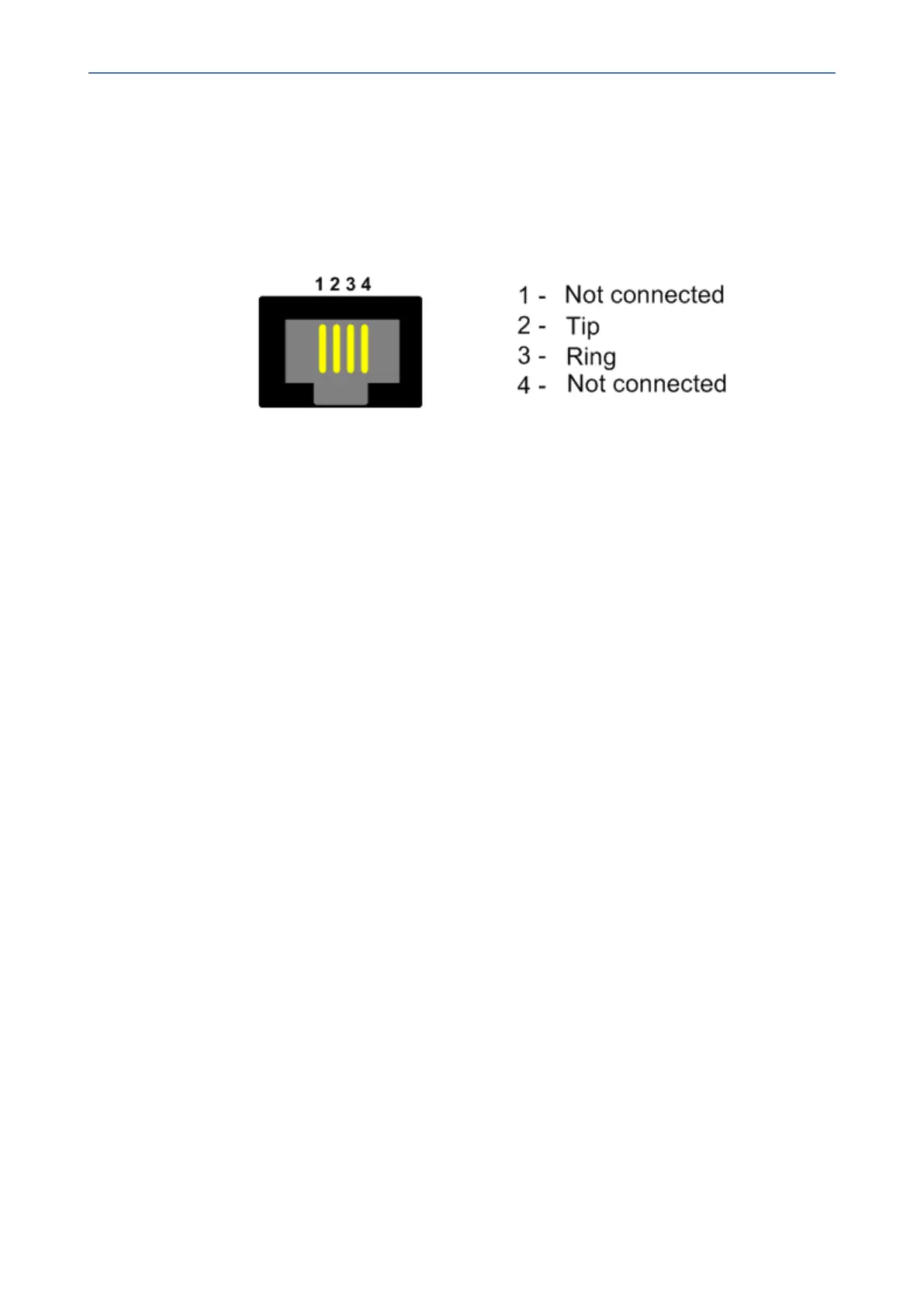

Figure 5-7: RJ-11 Connector Pinouts for FXS
➢ To connect FXS interfaces for outdoor routing:
1. Ground the device as described in Section Earth Grounding and Power Surge Protection.
2. Connect one end of a straight-through RJ-11 cable to the RJ-11 port on the outdoor FXS
module.
3. Connect the other end of the cable to your MDF.
4. Provide primary surge protection, by installing additional three-electrode Gas Discharge
Tube (GDT) rated 350V as a primary protection on the MDF, located at the entrance point
of telephone wiring to the building. The center pin of the GDT must be connected to
ground as shown in the following figure:
- 39 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
