CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
Item Color State Description
On Module shutdown sequence complete and the
module can be extracted from the chassis slot.
- Off Module correctly inserted in chassis slot.
HDMX Module
The HDMX module provides the hard-disk drive functionality for the OSN platform, providing
storage capacity.
The HDMX module is housed in Slot #1 on the rear panel.
● For additional storage capacity per HDMX module, contact your AudioCodes
sales representative.
● You can optionally order the OSN platform with dual hard-disk drives (two HDMX
modules). This second module is housed in Slot #8 on the rear panel of the
chassis.
The HDMX module is shown below and described in the subsequent table.

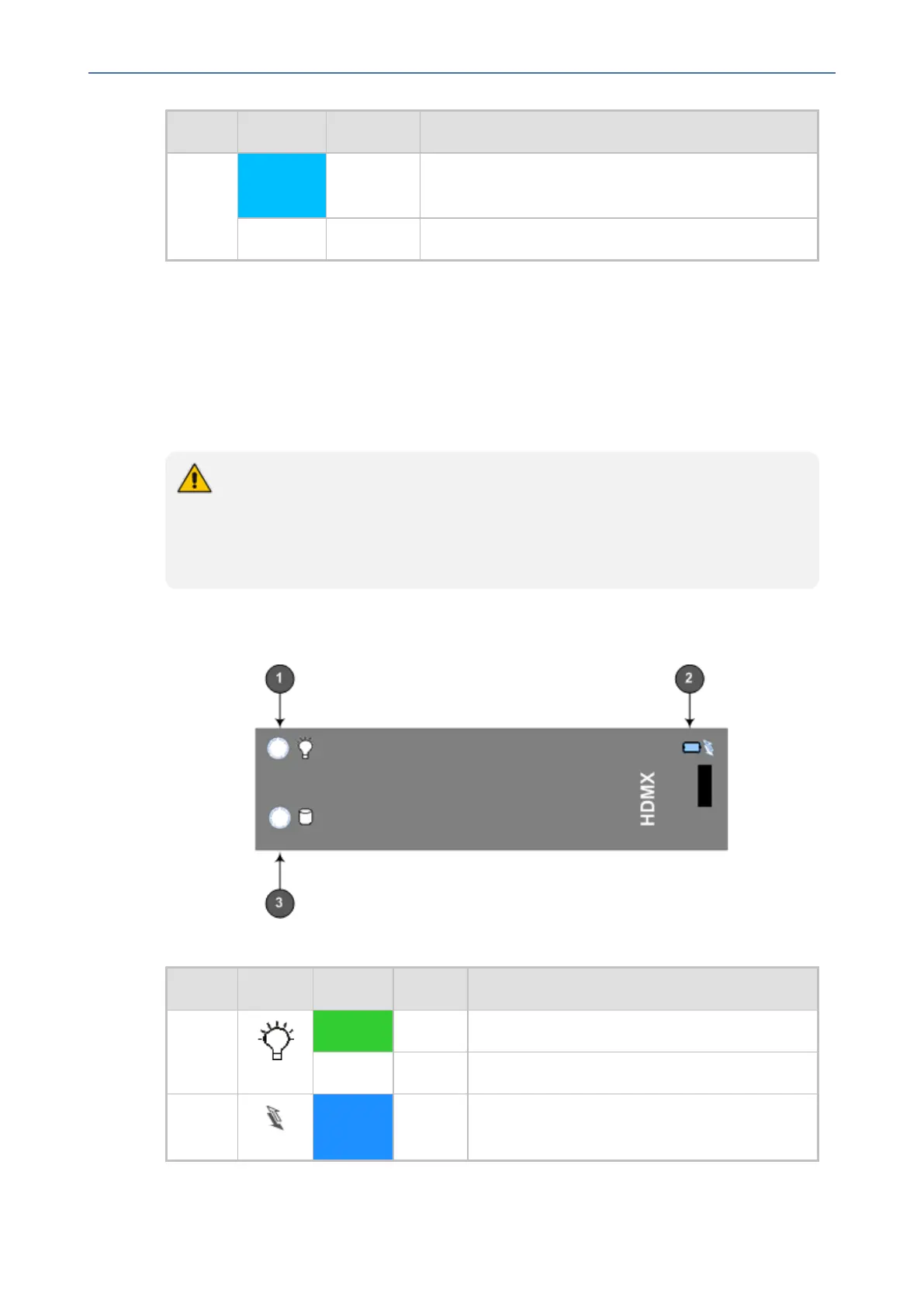

Figure 3-14: HDMX Module
Table 3-17: HDMX Module LEDs Description
Item # Label Color State Description
1 Green On Power received by module.
- Off No power received by module.
2 Blue On Module can be extracted from chassis slot once
dismounted from the OSN operating system.
- 22 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
