AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
● USB storage device containing the operating system installation files (disk-on-key or
external CD-ROM or DVD-ROM drive).
3. Connect the HDMI port, located on the OSN module, to your monitor.

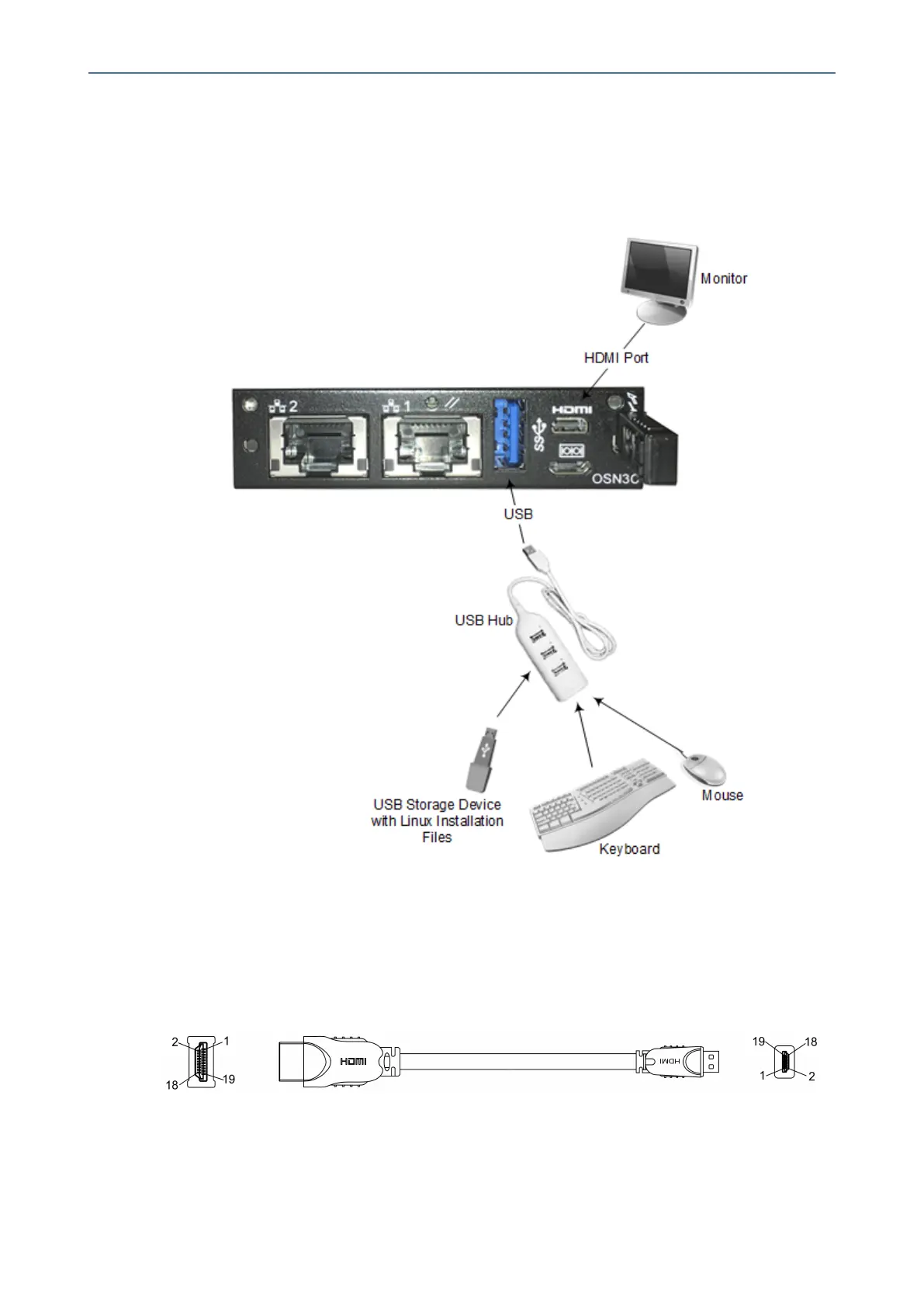

Figure 5-22: Cabling OSN4B Module for Installing Operating System
4. Reconnect the device to the power source; the OSN server boots up from the USB storage
device and the operating system installation begins.
5. Follow the online installation instructions to install the operating system.
The HDMI-to-HDMI cable adaptor is shown below with connector pinouts.
Figure 5-23: Standard HDMI (Type A) to Micro HDMI (Type D) Cable Adaptor
- 53 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
