AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

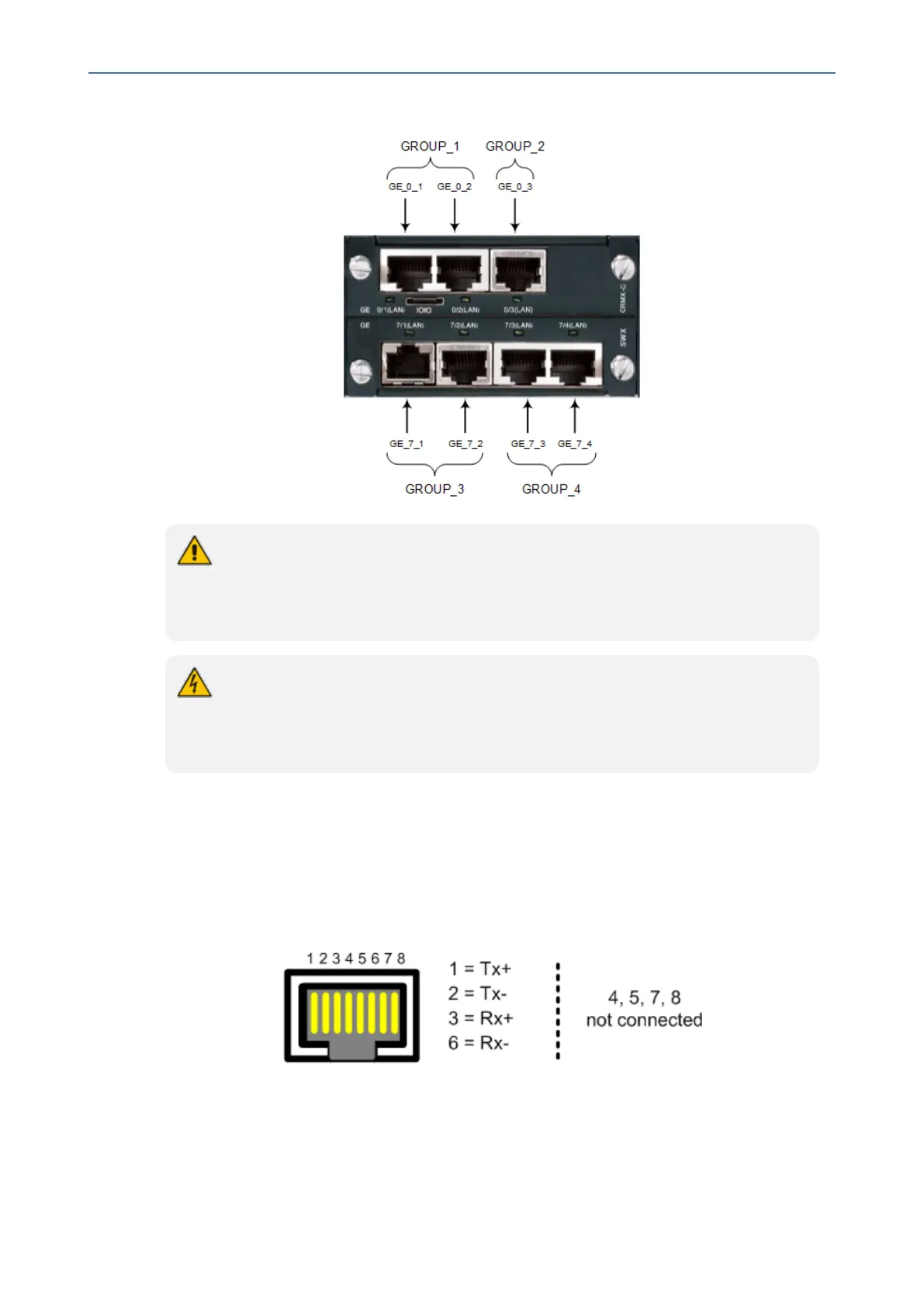

Figure 5-2: Default Ethernet Groups and Web Interface String Names
● The SWX module is a separate orderable item.
● If your SWX module has different port labels (i.e., roman numerals) compared to
those shown in the previous figure, see Ports Description for the corresponding
port numbering.
Ethernet port interface cabling must be routed only indoors and must not exit the
building.
(French) Avertissement: Le câblage de l’interface du port Ethernet doit être acheminé
uniquement en intérieur et ne doit pas sortir du bâtiment.
Cabling specifications:
■ Cable: Category 5e or Category 6 shielded twisted pair (STP) straight-through
■ Connector: RJ-45
■ Connector Pinouts:
Figure 5-3: RJ-45 Connector Pinouts for LAN
- 35 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
