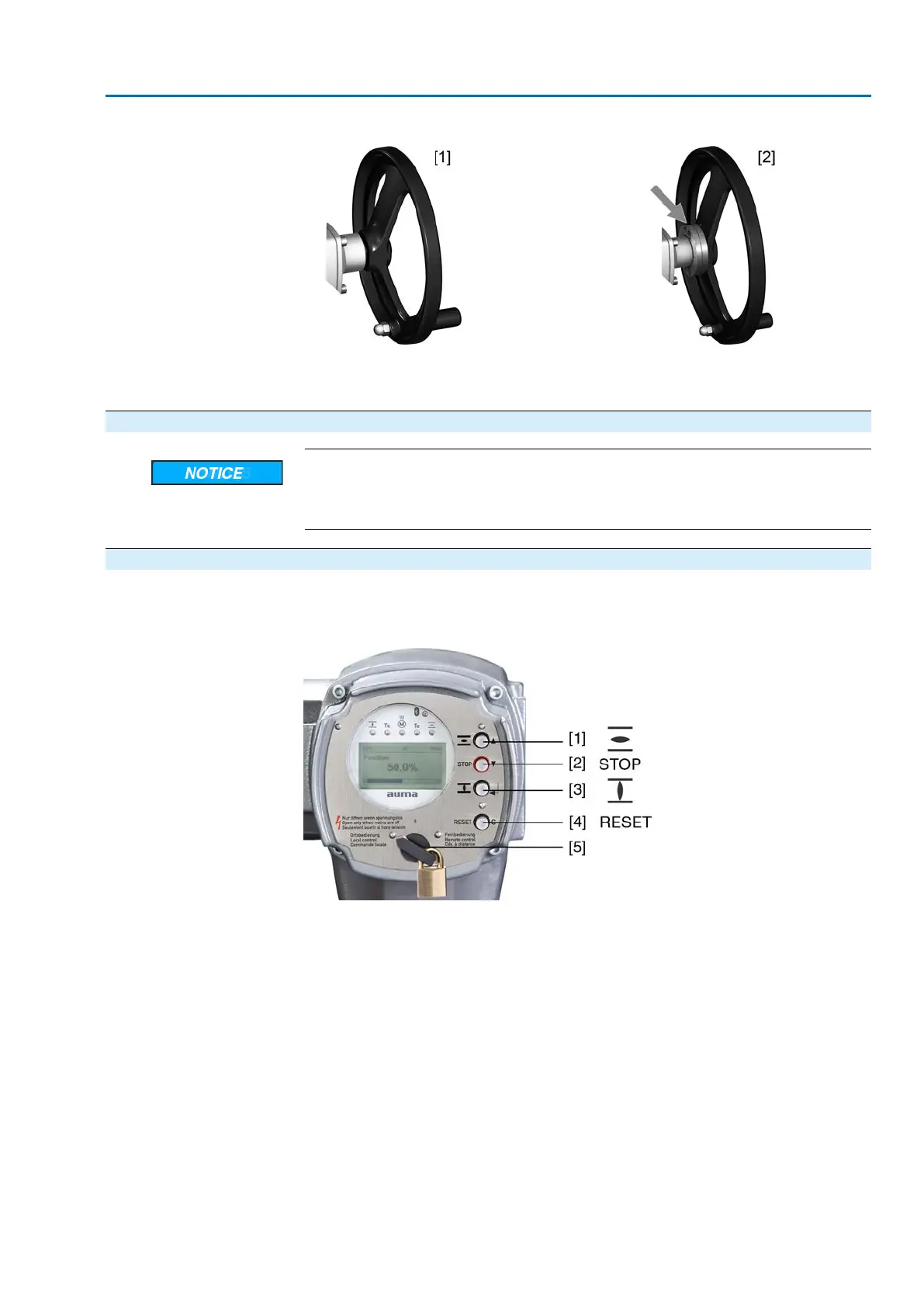

Figure 37: Handwheel without/with overload protection
[1] Handwheel without overload protection (standard)
[2] Handwheel with overload protection/safety hub (option)
7.2. Motor operation
Valve damage due to incorrect basic setting!
Prior to electric actuator operation, perform the basic settings for type of seating
and torque switching.
7.2.1. Operating the actuator from local controls
Local actuator operation is performed using the local controls push buttons of actuator
controls.
Figure 38: Local controls
[1] Push button for operation command in direction OPEN
[2] Push button STOP
[3] Push button for operation command in direction CLOSE
[4] Push button RESET
[5] Selector switch
39
SA 07.2 SA 16.2 / SAR 07.2 SAR 16.2 Control unit: electronic (MWG)
AC 01.2 Non-Intrusive DeviceNet Operation
