Transport and storage
11
4
Transport and storage
4.1
Transport
Actuator For transport to place of installation, use sturdy packaging.
DANGER
Suspended load!
Death or serious injury.
à Do NOT stand below suspended load.
à Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
à Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting by
hoist to valve and NOT to actuator.
à Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
à Respect total weight of combination (actuator, gearbox, valve)
à Secure load against falling down, sliding or tilting.
à Perform lift trial at low height and eliminate any potential danger e.g. by tilting.

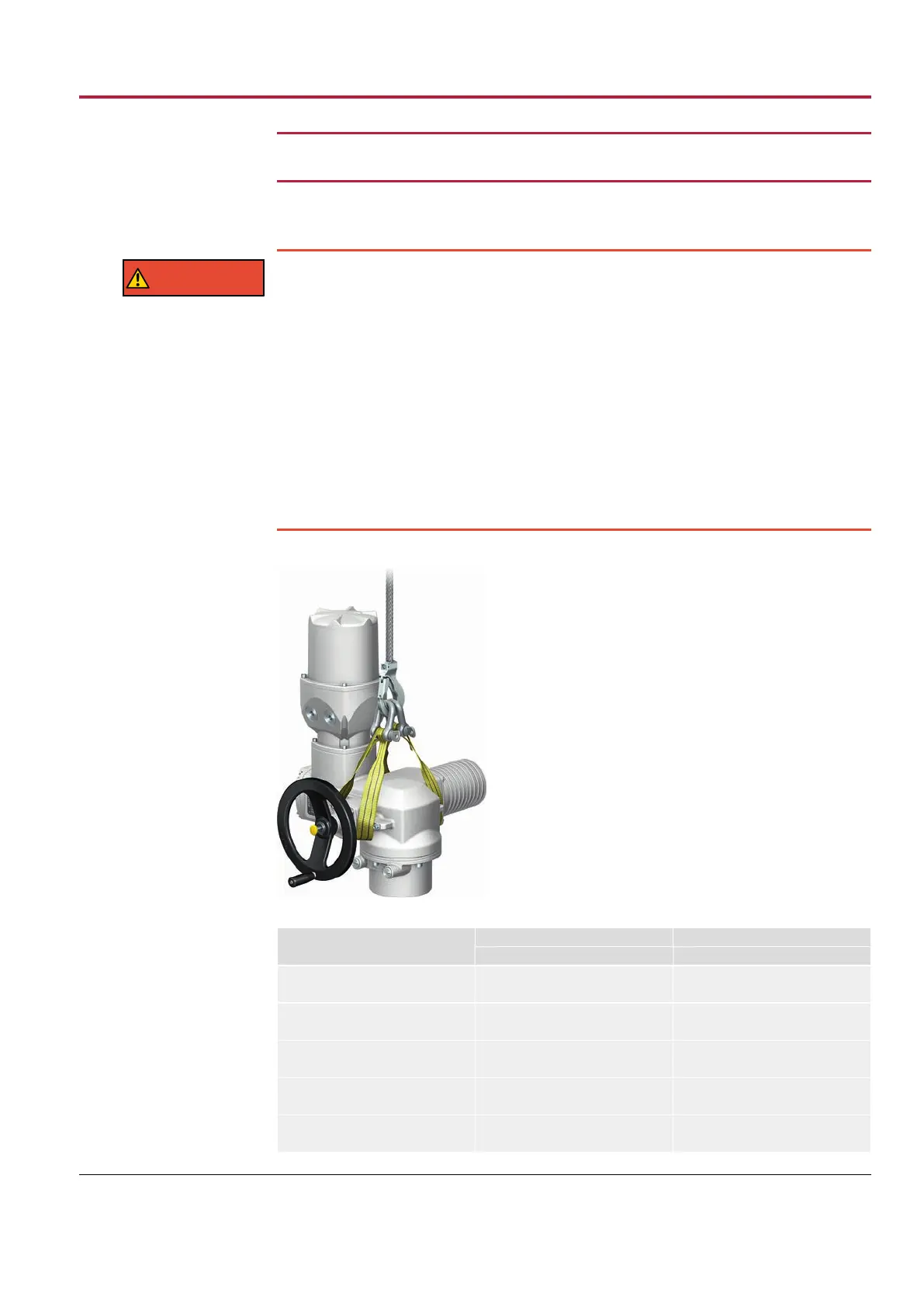

Figure6: Example: Lifting the actuator
Weights
Table6: Weights for SQEx/SQREx part-turn actuators with 3-phase AC motors
Type designation
Actuator
Weight
1)
Weight with base and lever
2)
approx. lbs [kg] approx. lbs [kg]
SQEx 05.2/
SQREx 05.2
64 [29] 75 [34]
SQEx 07.2/
SQREx 07.2
64 [29] 75 [34]
SQEx 10.2/
SQREx 10.2
75 [34] 84 [38]
SQEx 12.2/
SQREx 12.2
93 [42] 110 [50]
SQEx 14.2/
SQREx 14.2
112 [51] 137 [62]
1) Indicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical connection in standard version, unbored
coupling and handwheel. For other output drive types, heed additional weights.
2) Indicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical connection in standard version and hand-
wheel including base and lever. For other output drive types, heed additional weights.
