AUMA SQEx 12.2 Manual

Indications (option)
24
8
Indications (option)
8.1
Mechanical position indication via indicator mark

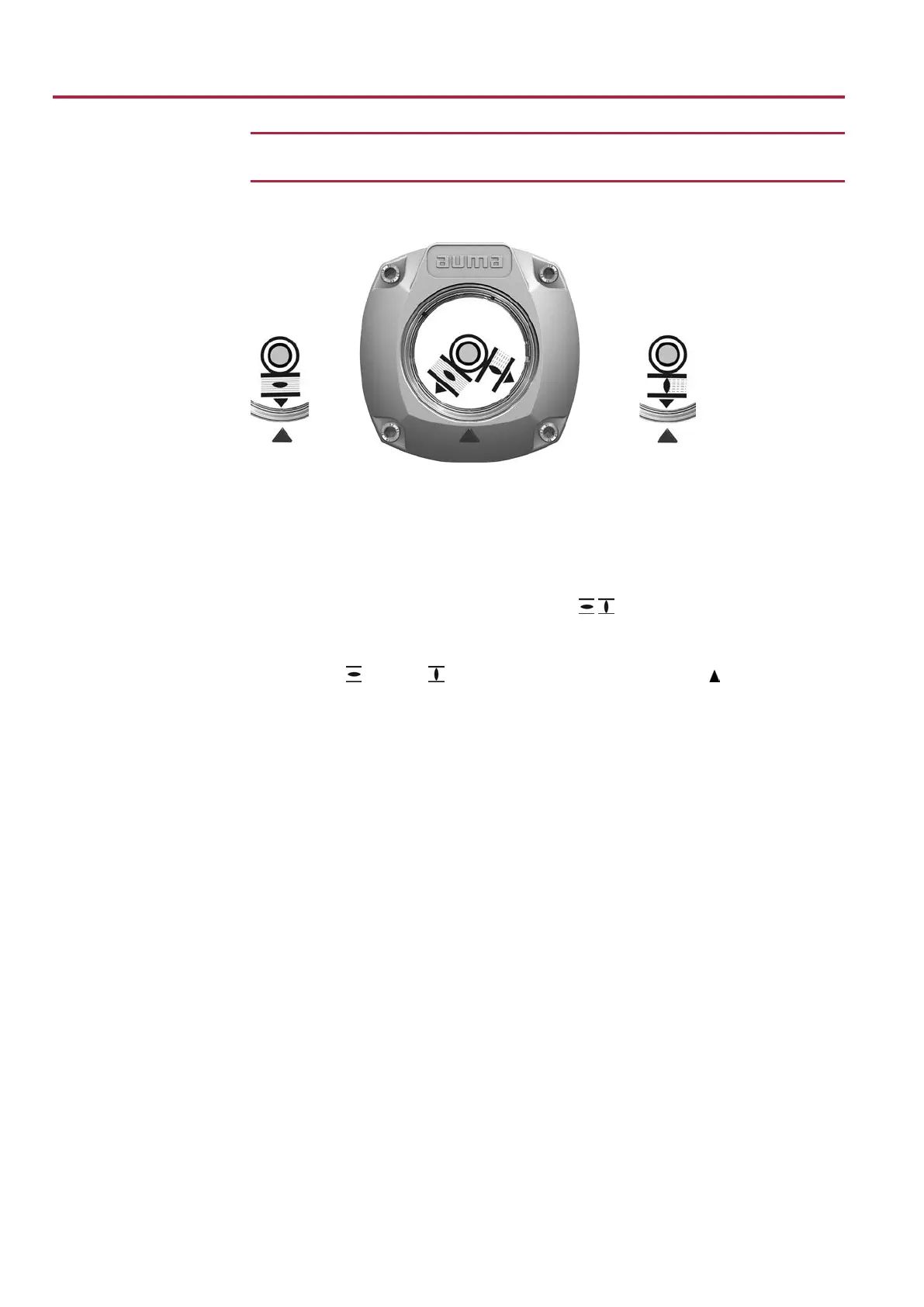

Figure20: Mechanical position indicator
[1] End position OPEN reached
[2] End position CLOSED reached
[3] Indicator mark at cover
Properties • Independent of power supply
• used as running indication: Indicator disc rotates during actuator operation and
continuously indicates the valve position
(For clockwise closing version, the symbols
/ rotate in counterclockwise direc-
tion for operations in direction CLOSE)
• indicates that end positions have been reached (OPEN/CLOSED)
(Symbols
(OPEN)/ (CLOSED) point to the indicator mark at cover)
