Connect the RTD or Thermocouple plug.

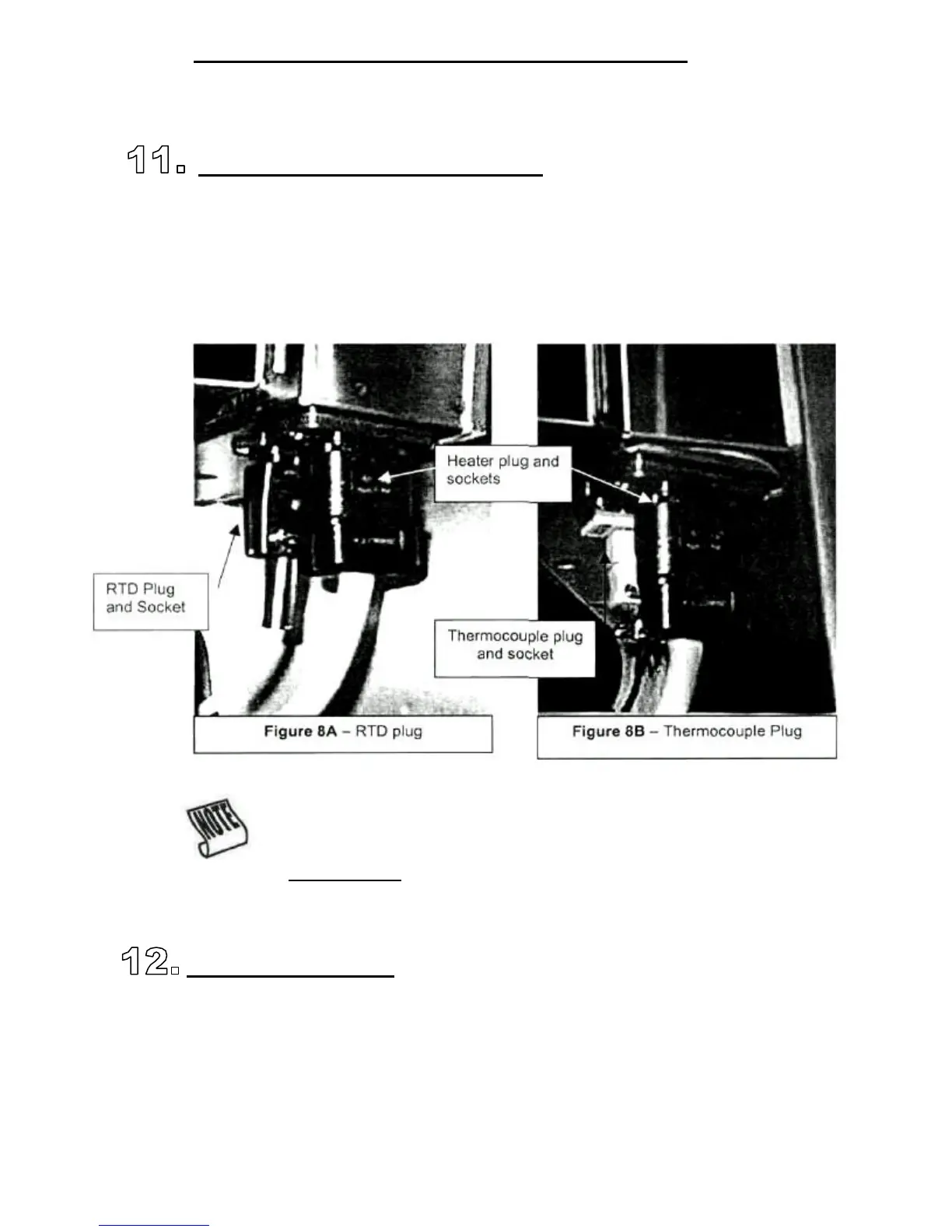

• The RTD plug will install into the smaller socket on the underside of the
heater box (see Figure 8A).
• The yellow thermocouple plug will install into the yellow socket on the
underside of the of the heater box (see Figure 8B).
It is very important that these plugs are seated firmly into their
respective sockets to prevent inaccurate temperature readings.
Connect the heater plug.
• The heater plug will attach to the heater socket on the underside of the
heater box (see figures 8A & 8B).
