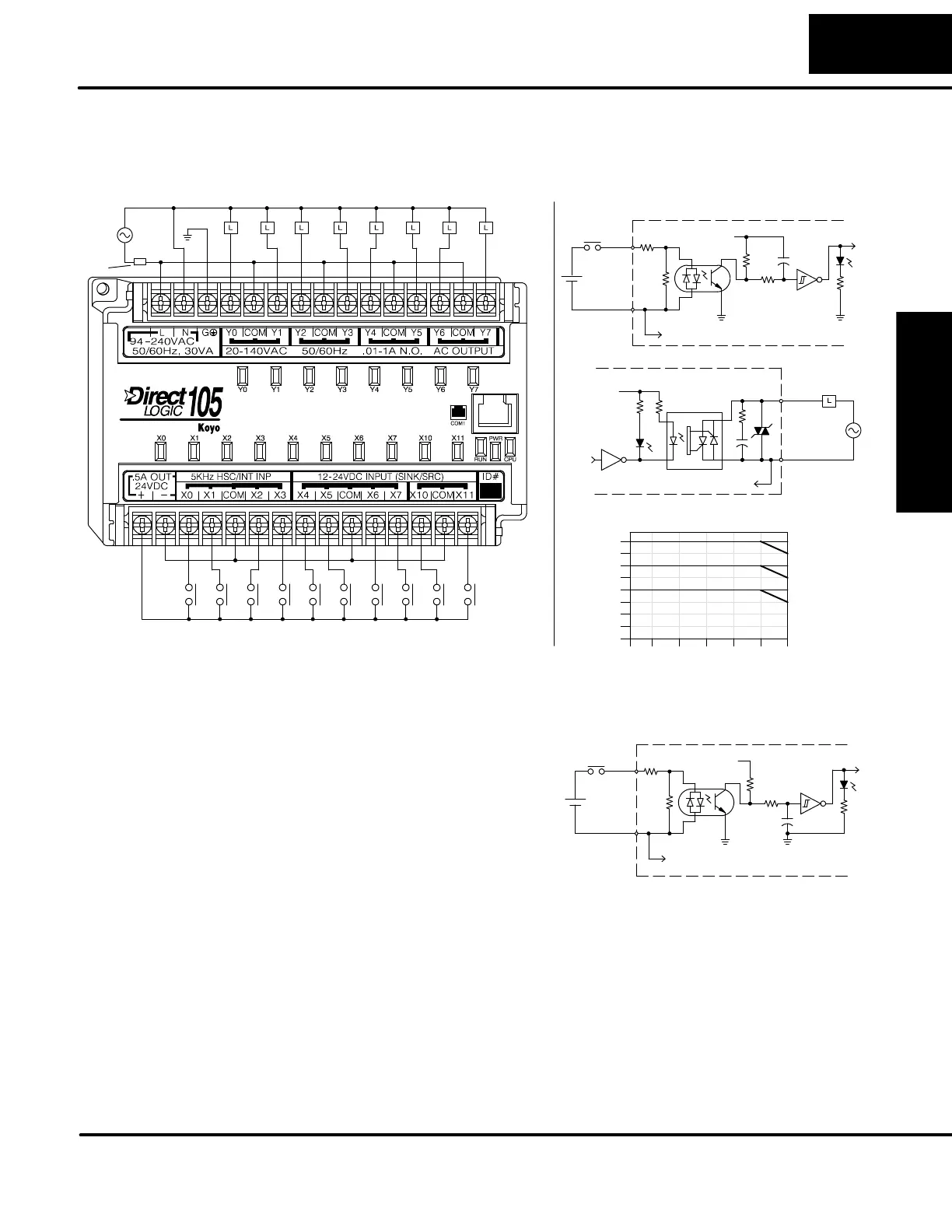

The F1--130DA Micro PLC features ten DC inputs and eight AC outputs. The
following diagram shows a typical field wiring example. The AC external power
connection uses three terminals at the top left as shown.
Output Point Wiring
Ground
Neutral
Line
Input Point Wiring
+--
Optical
Common
Input
+V
Isolator
To other circuits in bank
+
--
Equivalent Circuit,
Standard Inputs (X4 -- X11)
Equivalent Output Circuit
To other circuit in bank
+V
Common
Output
Optical
Isolator/Triac
Derating Chart for AC Outputs
0
2
4
6
8
Points
0102030405060
Ambient Temperature (C/F)
32 50 68 86 104 122 140
C
F
1.3A
1.2A
1.3A
1.4A
1.5A
1.5A
1.6A
1.7A
1.7A
Fuse
or
C.B.
The ten DC input channels use terminals
on the bottom connector. Inputs are
organized into two banks of four, plus one
bank of two. Each bank has an isolated
common terminal, and may be wired as
sinking or sourcing inputs. The wiring
example above shows all commons
connected together, but separate supplies
and common circuits may be used. The
equivalent circuit for standard inputs is
shown above, and the high-speed input
circuit is shown to the right.
Equivalent Circuit, High-
Speed Inputs (X0 -- X3)
Optical
Common
Input
+V
Isolator
To other circuits in bank
+
--
The eight output channels use terminals on the top connector. Outputs are
organized into four banks of two triac switches. Each bank has a common terminal.
The wiring example above shows all commons connected together, but separate
supplies and common circuits may be used. The equivalent output circuit shows one
channel of a typical bank.
The F1--130DA has a +24V supply output to power external devices. The output is
rated at 0.5 Amperes, and includes short-circuit protection and full isolation from
internal CPU circuitry. These features make it ideal for powering sensors, solenoids,
and other field devices. In fact, it can be used as the DC supply for switches or
F1--130DA
I/O Wiring Diagram
Auxiliary +24V
Power Supply
