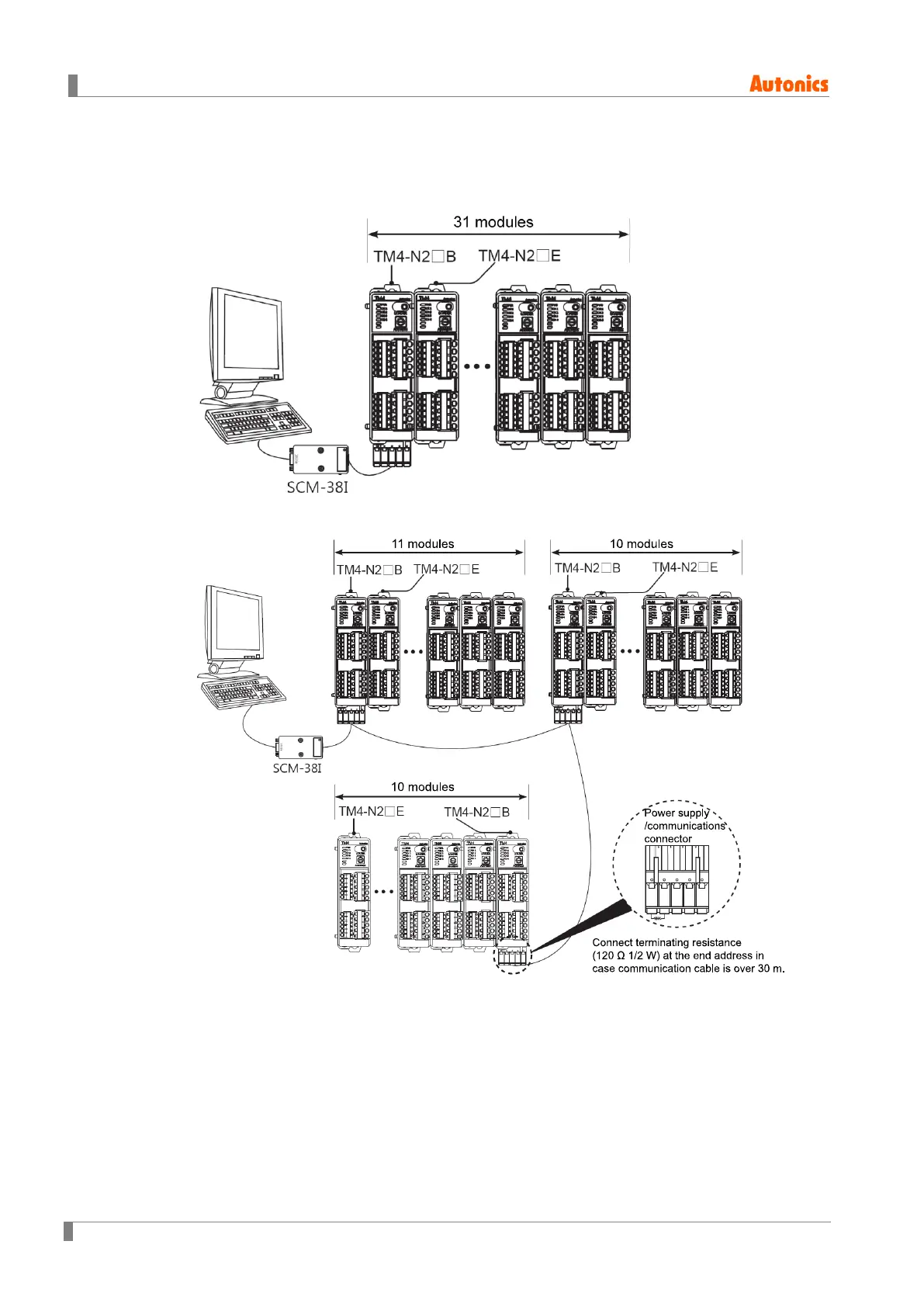

(2) Module Expansion
When using the bottom power supply/communication connection terminal (Power/Comm.
connection terminal), up to 31 modules can be connected at the same time.
Maximum required power = 31 X 5 W = 155 W
When connecting several module sets (31 modules or less), each module set requires
separate power supply.
