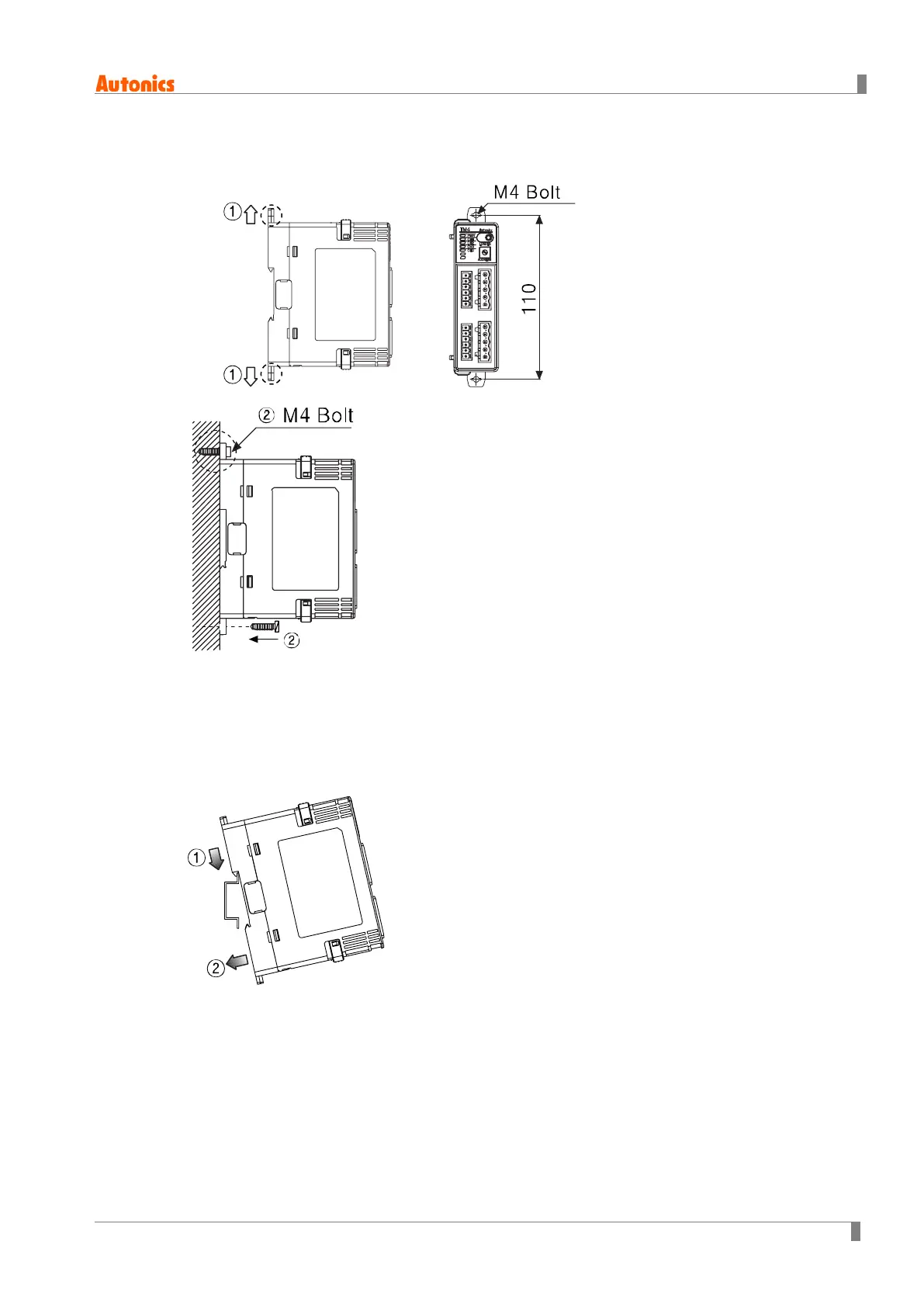

3.1.3 Mounting with bolts
1st Pull each rail lock to up and down.
2nd Insert bolts to fix it on rail lock. (fixing torque is 0.5 to 0.9 N•m).
3.1.4 Mounting on DIN rail
(1) Installation/Removal method of a single module
 Installing
1st Hang the top rail lock to DIN rail.
2nd Push and press the module to down direction.
