6 Parameter Settings and Functions
72 © Copyright Reserved Autonics Co., Ltd.
6.4.10.1 Heater disconnection detection SV
Set the alarm output value (Alarm Low_Ch) as the reference value for heater burnout detection.
Setting group Parameter
Unit
Alarm Setting Alarm Low_Ch 0.0 to 50.0 0.0 A
Set to 00.0 for OFF. Set to 50.0 for ON.
Setting value calculation
: Heater burnout setting value = {(normal heater current values) + (heater burnout current)}/2

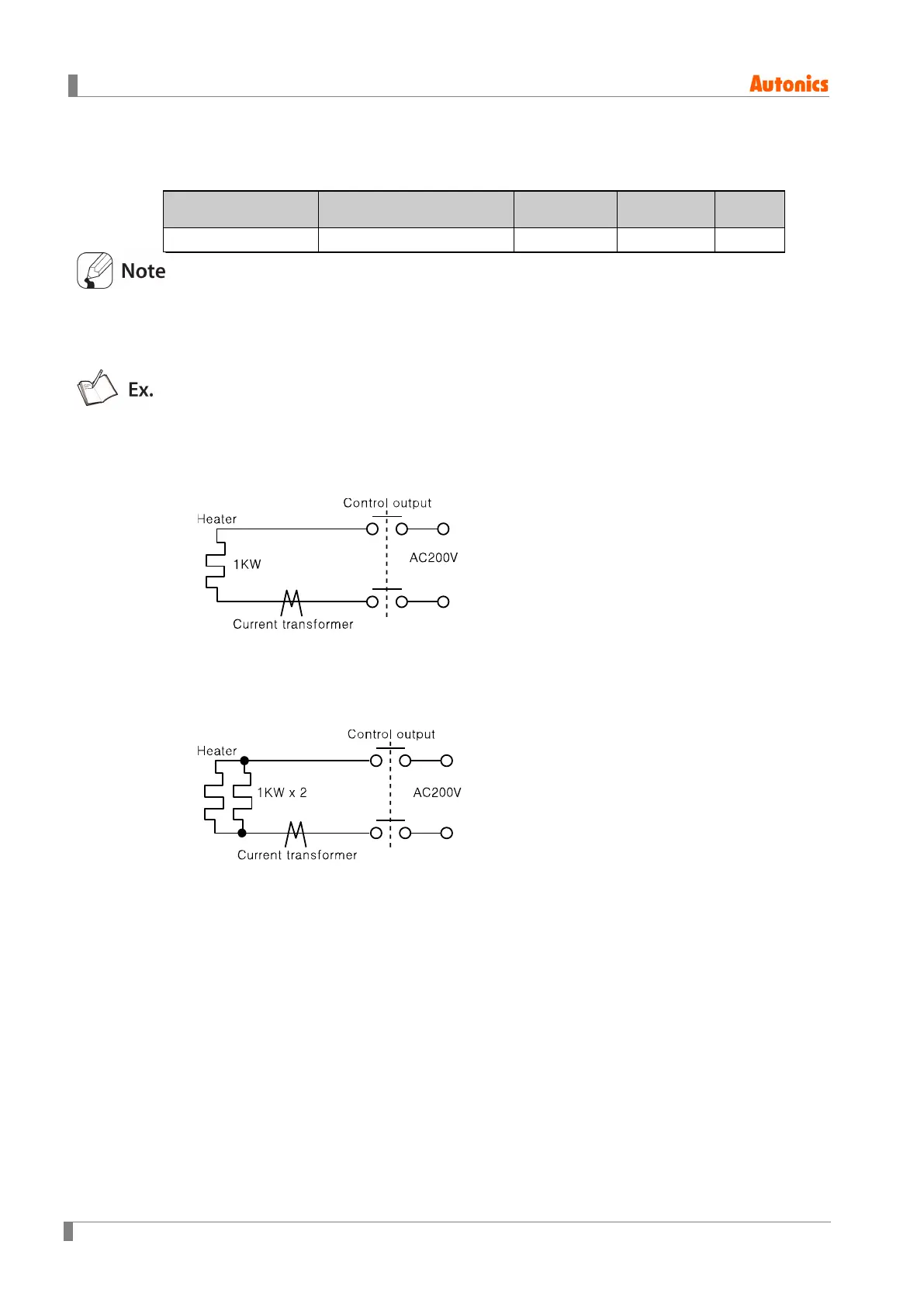

If using a single output heater (Capacity: 200 VAC, 1 KW, 5 A), normal heater current is 5 A,
and burnout heater current is 0 A, the setting value is calculated as (5 A + 0 A)/2 = 2.5 A.
Therefore, heater current values less than 2.5 A (heater burnout setting value) will be
deemed heater burnout and the alarm will activate.
When two output heaters (Capacity: 200 VAC, 1 KW, 5 A) are used, normal heater current is
10 A (5 A×2). If a single heater burns out, the heater current becomes 5A. The setting value
is calculated as (10 A + 5 A)/2 = 7.5 A). Heater current values of less than 7.5 A (heater
burnout setting value) are deemed heater burnout and the alarm activates.
