3.1 Typical Installation Drawings

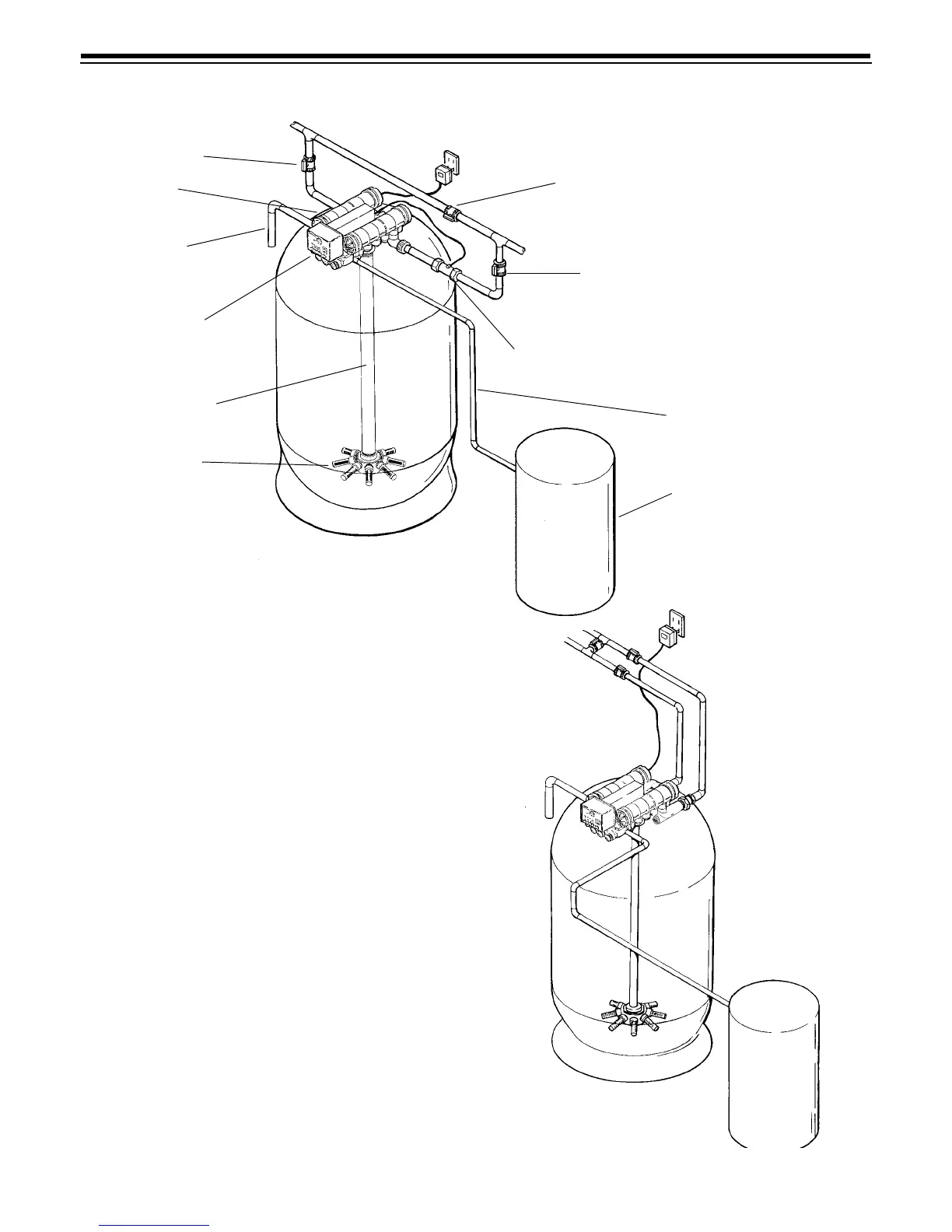

Figure 3.3 Magnum Cv and Magnum IT, Single Tank Softener Units with 962 Electronic Control

Inlet Valve

Drain

962 Control

1.5” Riser Tube

Hub & Lateral

Brine Tank

Brine Line

Turbine (standard

with 962 Control)

Outlet Valve

Manual Bypass Valve

Drain Line Flow Control

Note: Support Inlet and

Outlet Piping

Adequately.

(Required)

Magnum Cv

Magnum IT
