5.4.3 Connecting the 962 Twin and Triple
Parallel Control
The 962 control can be used for twin and triple tank
applications, operating in a parallel mode. Six standard
connections are required for twin parallel operations;
the power transformer and flow sensor for each control
and the twin interconnecting cable between the
controls. Nine standard connections are required for
triple parallel operation: the power transformer and flow
sensor for each control and the triple interconnecting
cable between the controls. Figure 5.16 outlines these
standard features, as well as the battery backup and
the optional remote regeneration feature.

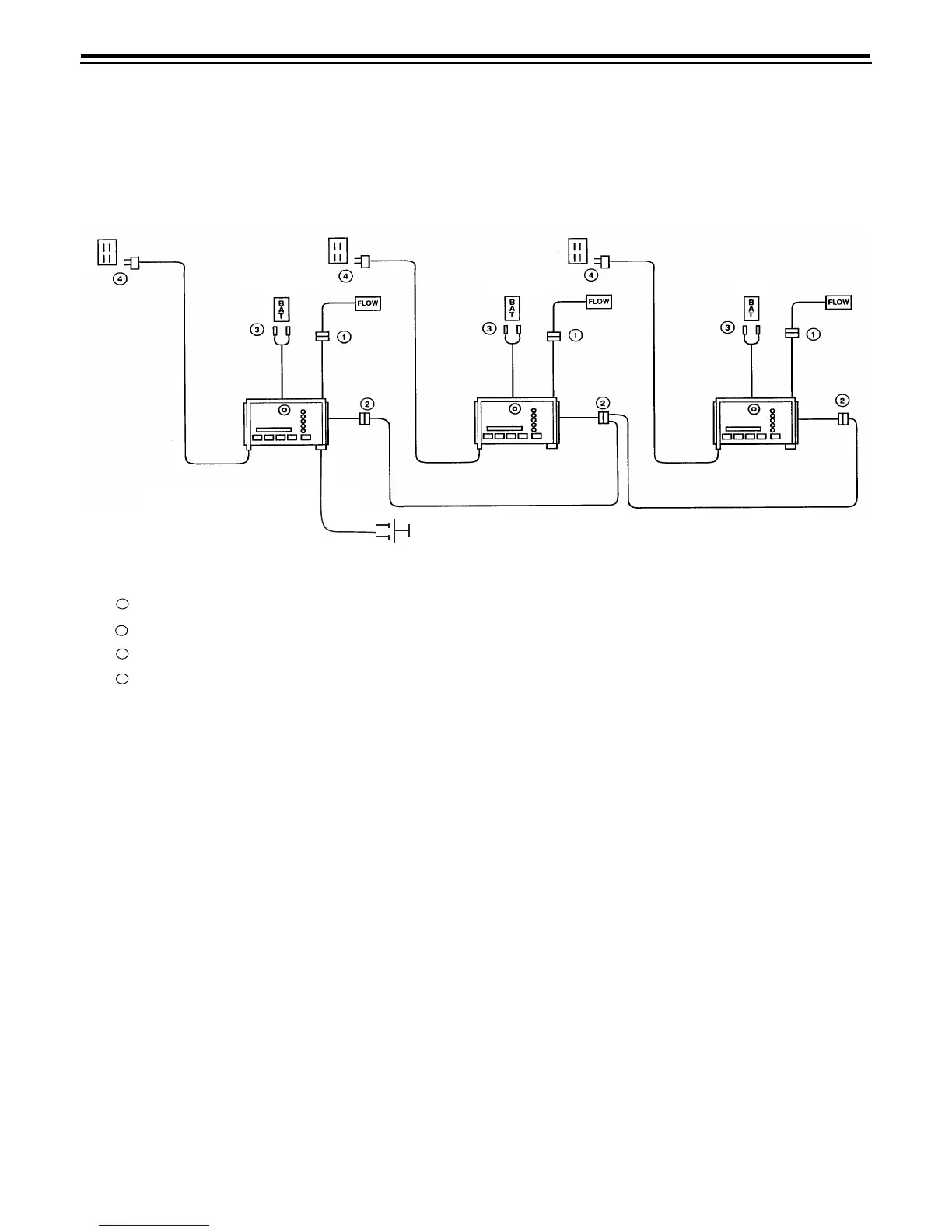

Figure 5.16
Twin Cable
Triple Cable
PARALLEL SYSTEM CONNECTION PROCEDURE
Connect turbine flow meters
Connect interlock cables
Attach optional batteries
Plug transformers into outlets on common circuit
1
2
3
4
PARALLEL INTERCONNECT CABLES
PN 1034312 - Twin System Cable - 10 feet
PN 1035587 - Triplex System Cable - 10 feet
each
PN 1035593 - Extension Cable - 2 feet
Optional Remote
Regeneration Feature
