62

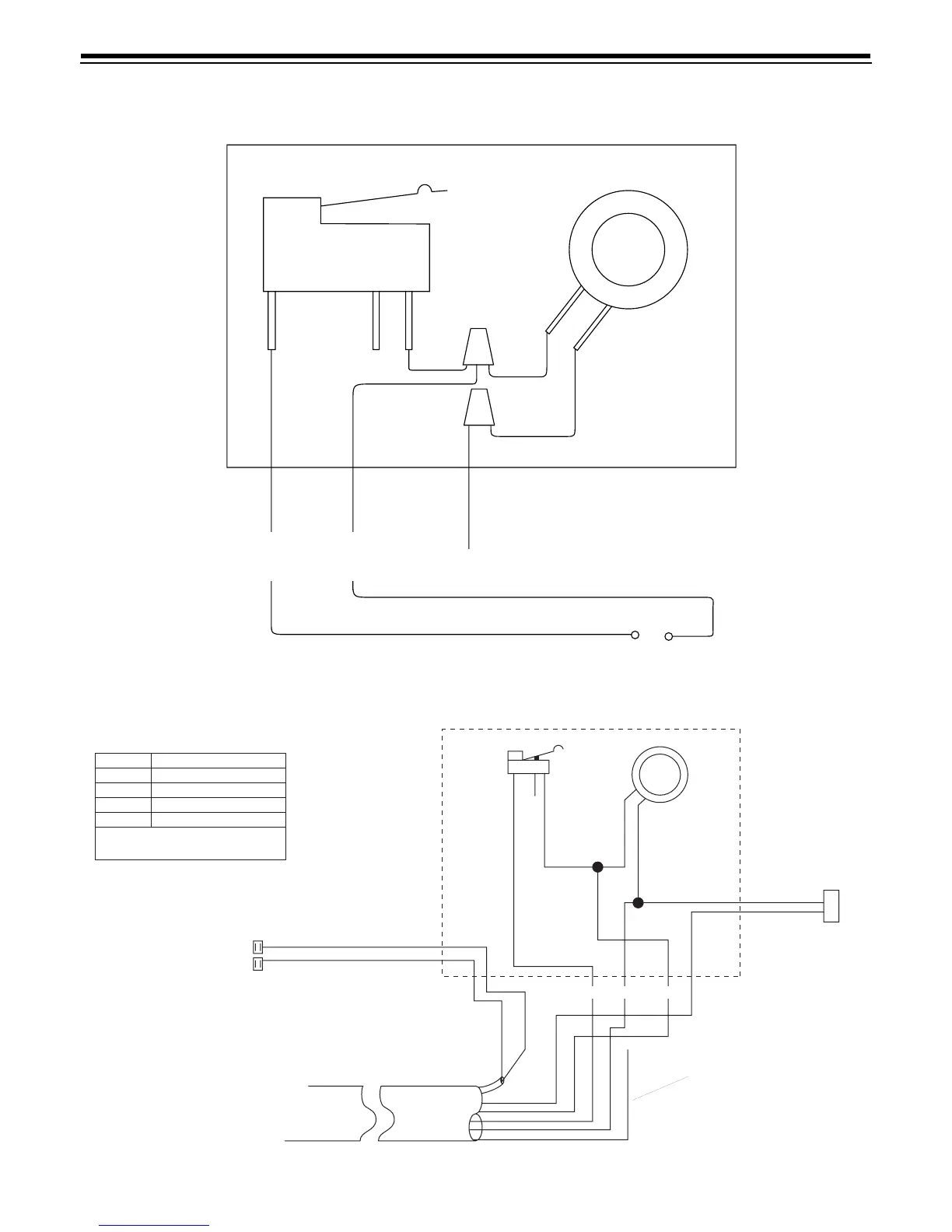

11.2 Model 952 Twin Series Impulse Control
11.3 Model 952QC Impulse Control
Motor
952 Switch
CNONC
White
L2
Red
Start
Black
L1
MOTOR
MOTOR LEADS
YELLOW / WHITE
ISOLATION SIGNAL
GROUND NOT USED IN
THIS APPLICATION
WHITE
RED
RED
CNO NC
BLACK
QC CABLE
FEEDBACK SIGNAL
WIRES / CONNECTORS
YELLOW
RED
BLACK
RED
BLACK
WHITE
GREEN / YELLOW
BLACK WHITE RED
LEGEND
YELLOW ISOLATION
RED START REGENERATION
BLACK HOT
WHITE NEUTRAL
GRN/YEL GROUND
FEEDBACK CABLE
RED AND BLACK
