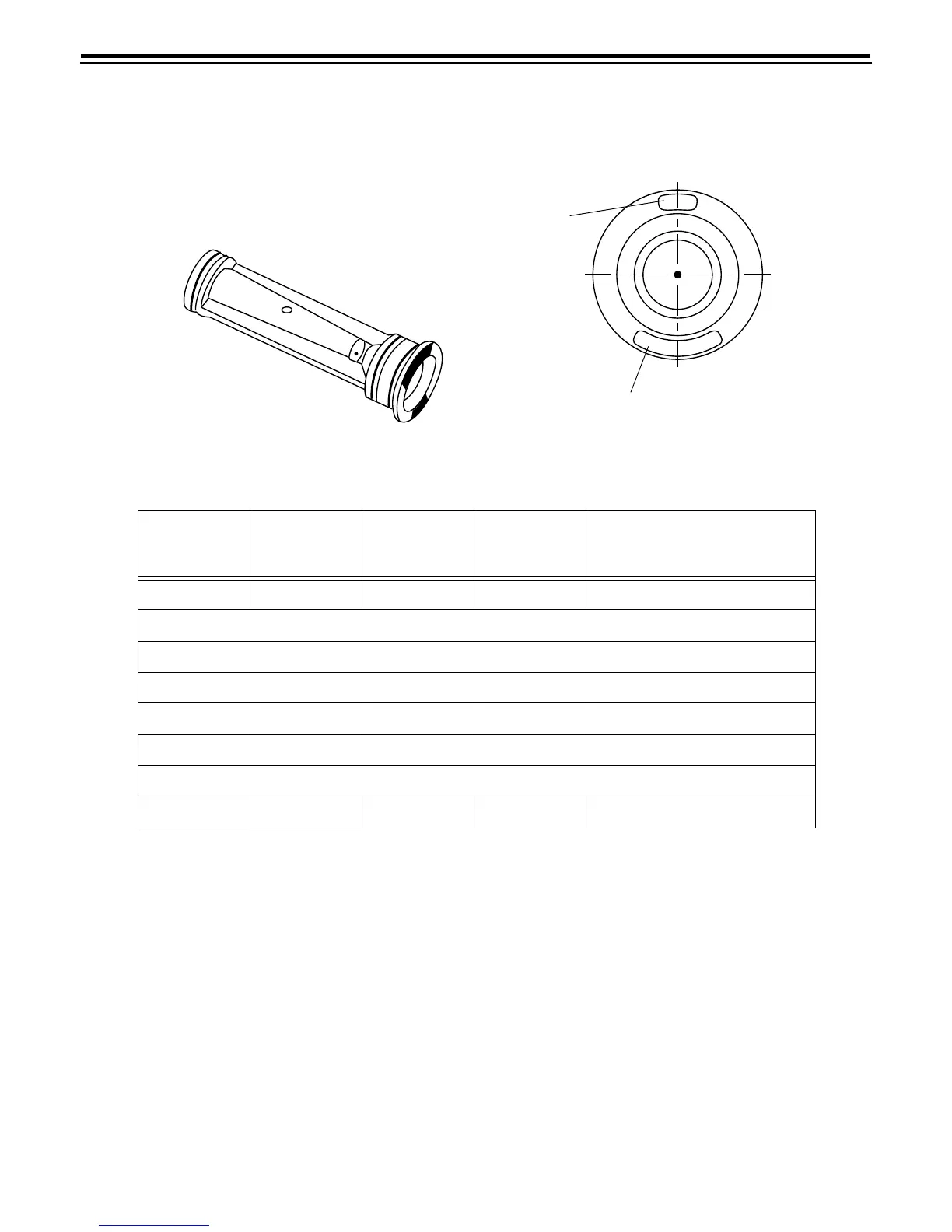

10.3 Magnum Injector Controls

Note: All flow rates are based on an inlet pressure of 60 psig (413 kPa). Actual rates will vary with pressure,

temperatures and other system variables.

Injector Identification

Tan k S iz e

Part Number

Table 10.2 Magnum Injector Chart

Part Number

with O-rings

Tank

Diameter

In. (cm)

Draw Rate

GPM (LPM)

Program P7 Value

1000441 1040670 14 (35.6) 0.5 (1.89) 5

1000442 1040671 16 (40.6) 0.5 (1.89) 5

1000443 1040672 18 (45.7) 0.6 (2.27) 6

1000444 1040673 21 (53.3) 0.9 (3.41) 9

1000445 1040674 24 (61.0) 1.4 (5.30) 14

1000446 1040675 30 (76.2) 2.0 (7.57) 20

1000447 1040676 36 (91.4) 3.3 (12.5) 33

1000448 1040677 Blank 0.0 Filter Application Only
