57
10.2 Magnum Flow Controls
Note: All flow rates are based on an inlet pressure of 60 psig (413 kPa). Actual rates will vary with pressure,
temperatures and other system variables.
X X
X X X
X
.495

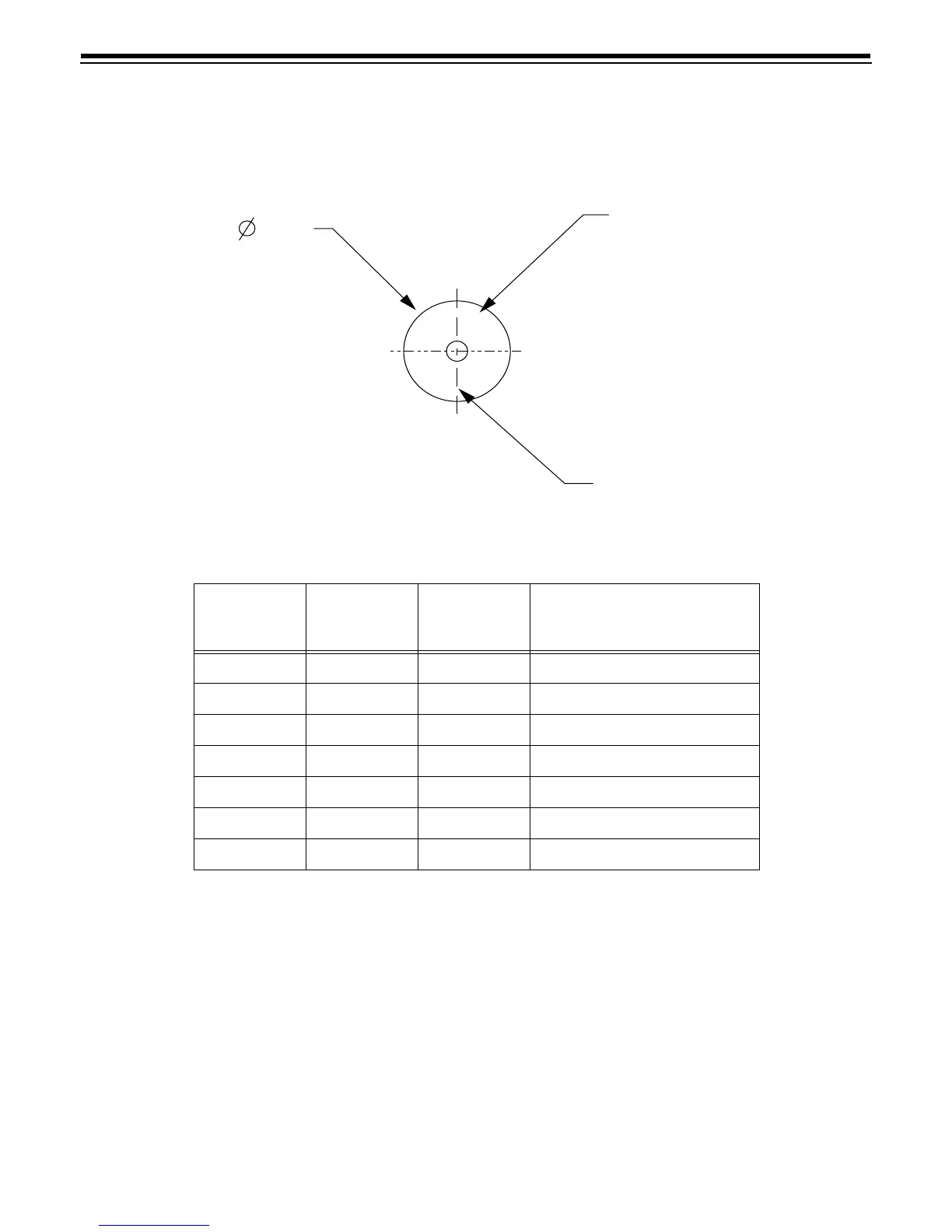

Cavity Number
Flow Rate (gpm)
Refill Control Identification
Table 10.1 Magnum Refill Control Chart (P/N Indicates 3-Pack)
Part Number
Tank
Diameter
In. (cm)
Flow Rate
GPM (LPM)
Program P6 Value
1040679 14 (35.6) 0.7 (2.65) 7
1040680 16 (40.6) 0.8 (3.03) 8
1040681 18 (45.7) 1.0 (3.79) 10
1040682 21 (53.3) 1.4 (5.30) 14
1040683 24 (61.0) 2.0 (7.57) 20
1040684 30 (76.2) 3.0 (11.36) 30
1040685 36 (91.4) 5.0 (18.93) 50
To Next Page
