2.0 Introduction to the Magnum Cv and Magnum IT Series
The Magnum Cv
TM
and Magnum IT
TM
Series valves
offer a high degree of installation simplicity and
flexibility.
Figure 2.1 provides an overview of the major
components and connections of the 2-inch
(5.08-cm) Magnum IT valve.
The Magnum valve is available in either a
1-1/2-inch (3.81-cm) (Magnum Cv
TM
) or a 2-inch
(5.08-cm) (Magnum IT™) configuration. Throughout
this manual, the 2-inch (5.08-cm) Magnum Cv is shown
in illustrations where the model type is irrelevant to
what is being demonstrated.

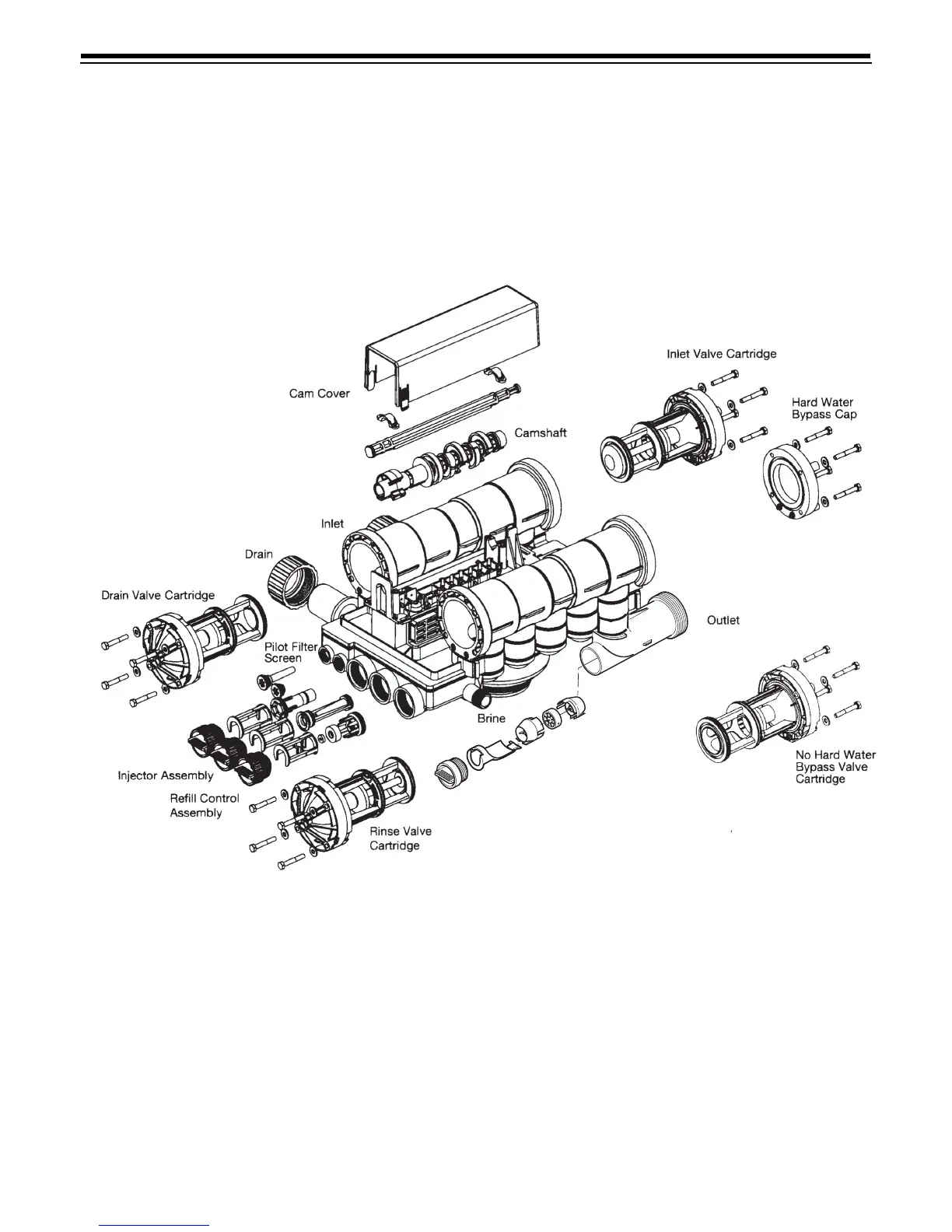

Figure 2.1
Magnum IT Series Valve
TM
Internal Turbine
Assembly
