11.0 Wiring Diagrams

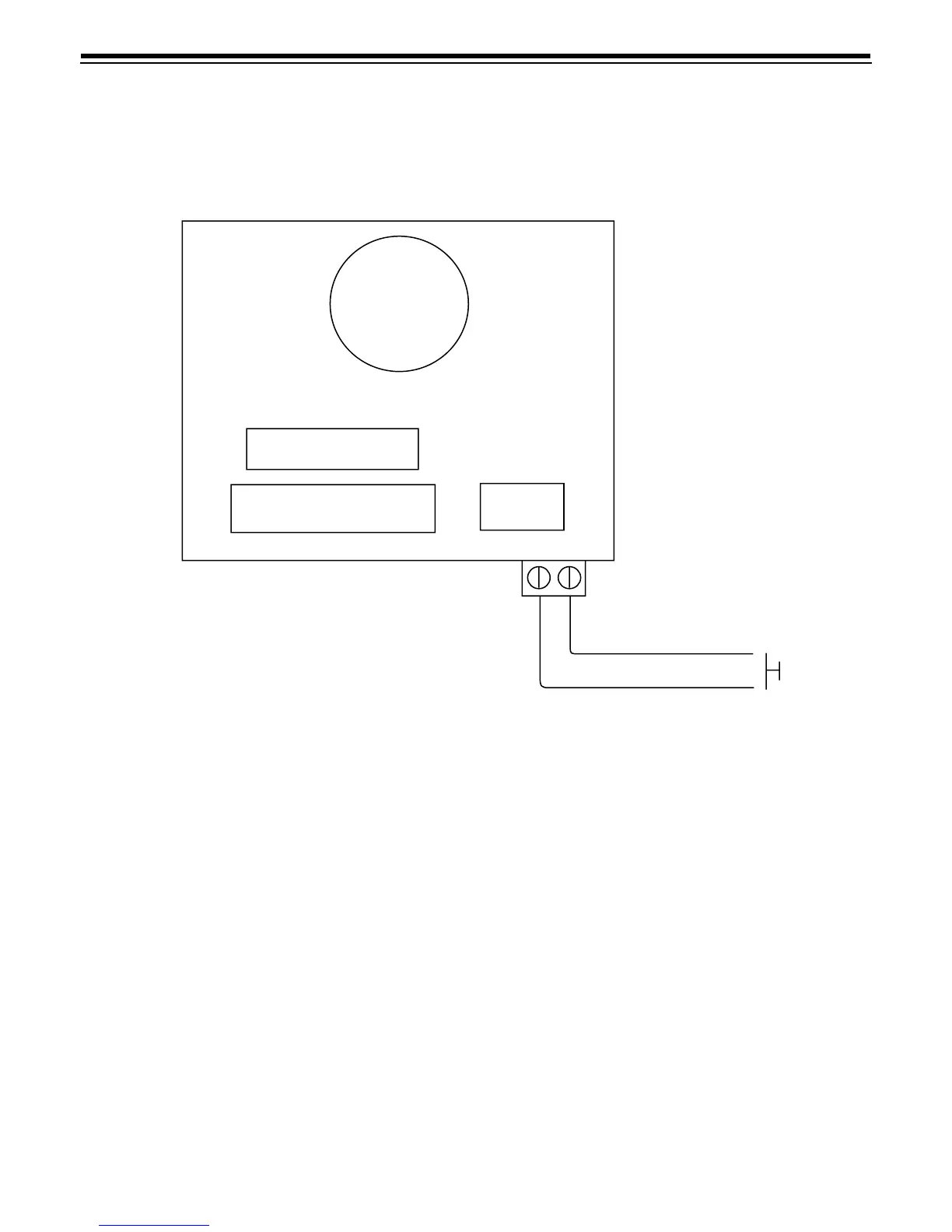

11.1 Model 962 Series Electronic Control
Remote Regeneration Initiation
NOTE: The 962 Series Electronic Control is not recommended for pressure differential initiation or sequential
regeneration of multiple tank systems. Please consult GE Osmonics for these applications.
SOURCE POWER ..... 2mA@
(FROM 962, 962M) 12VDC
PUSH BUTTON SWITCH
OR ALTERNATE SWITCH
OPERATION
MINIMUM SIGNAL LENGTH
... 3 SECONDS
Magnum 962
CONTROL SOURCE
POWER .2mA @ 12 VAC
(FROM 962, 962M
TRANSFORMER)
INITIATE BY PUSH BUTTON
SWITCH OR ALTERNATE
SWITCH OPERATION - DRY
CONTACT CLOSURE
MINIMUM SIGNAL LENGTH
0.3 SECONDS
MAXIMUM SIGNAL LENGTH
254 SECONDS
