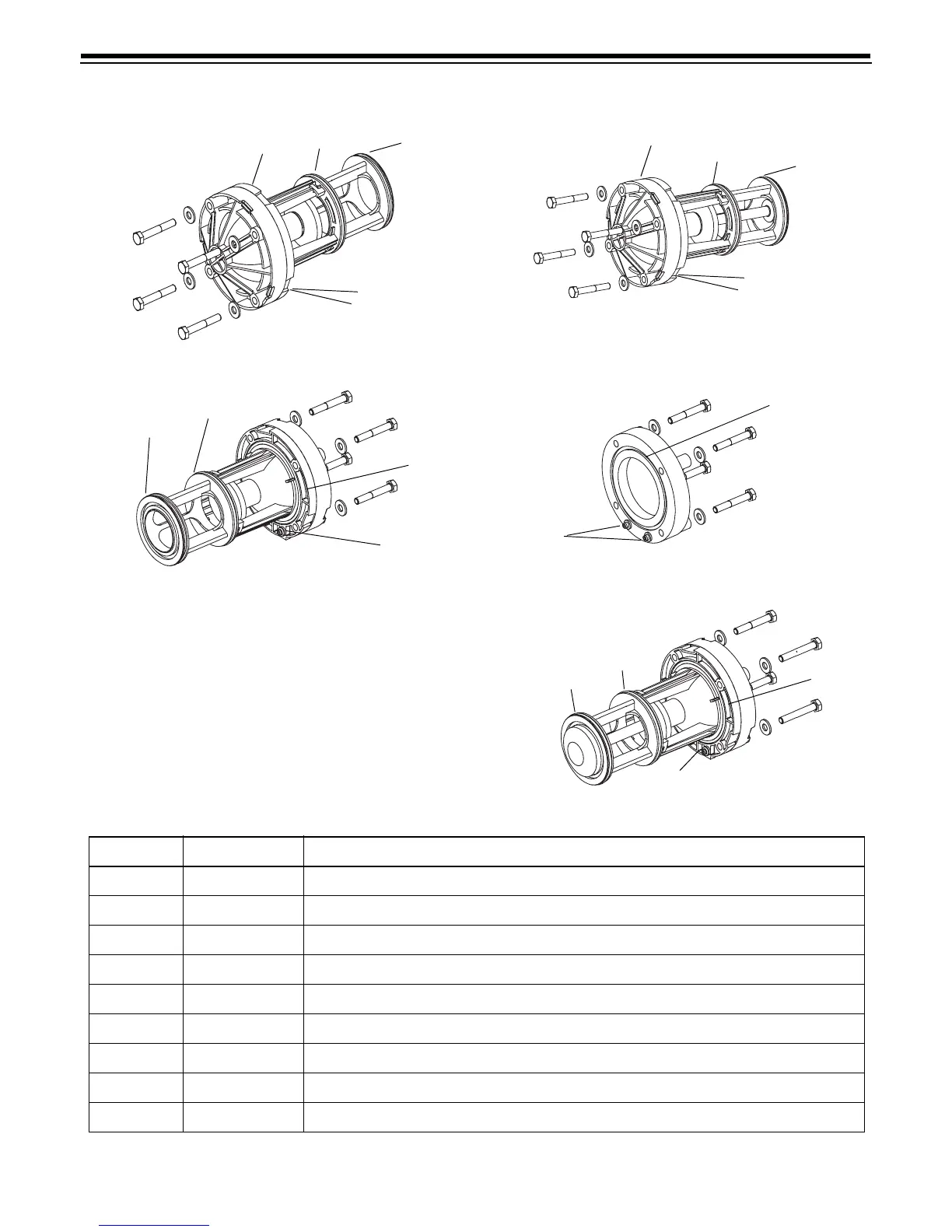

12.9 Magnum Valve Cartridges
Note: Items 1 and 3 are identical valve cartridges.
Item Part Number Description
1 1000366 Drain Valve Cartridge
2 1000365 Rinse Valve Cartridge
3 1000366 No Hardwater Bypass Valve Cartridge
4 1000336 Hardwater Bypass Cap
5 1000317 Inlet Valve Cartridge
6 1010157 O-Ring
7 1010158 O-Ring
8 1010159 O-Ring
9 1010116 O-Ring (qty. 2 per Cartridge)
8
7
6
9
9
6
7
8
9
6
7
9
8
8
9
1 - Drain Valve Cartridge
3 - No Hard Water Bypass Valve Cartridge
5 - Inlet Valve Cartridge
4 - Hard Water Bypass Cap
2 - Rinse Valve Cartridge
8
7
6
9
9
