Rated operating capacity
To determine how much the loader can handle safely, a
table of the tipping load and a calculated Rated Operating
Capacity (ROC) is shown in the adjacent label.
A rated Operating capacity label is located near the driver’s
seat and can be read while you sit on the driver’s seat
Rated operating capacity depends on type of use of the
loader:
• In bucket and general application the rated operating
capacity is 50% of tipping load
• In pallet fork application the rated operating capacity is
60% of tipping load
The information shown in the table is the worst case
minimum load, with the conditions listed below. Actual lifting
capacity could be signicantly higher, or it may be lower,
depending on terrain conditions, available lifting force, and
load distribution. Adding or removing counterweights will
affect the indicated ROC.
The ROC table is valid, when:
• The ground is rm and level
• Loader is stationary or driven max 2 km/h, with smooth
and slow control movements
• Driver 75 kg is seated on the driver’s seat
• Load is distributed evenly on pallet forks, with the load
centre of gravity at 400 mm from the vertical part of
pallet fork arms. The weight of the fork attachment is
taken into account in the indicated load values
Risk of tipping over when handling
heavy loads - See the warnings and
safety instructions about handling of
heavy loads shown in this manual.

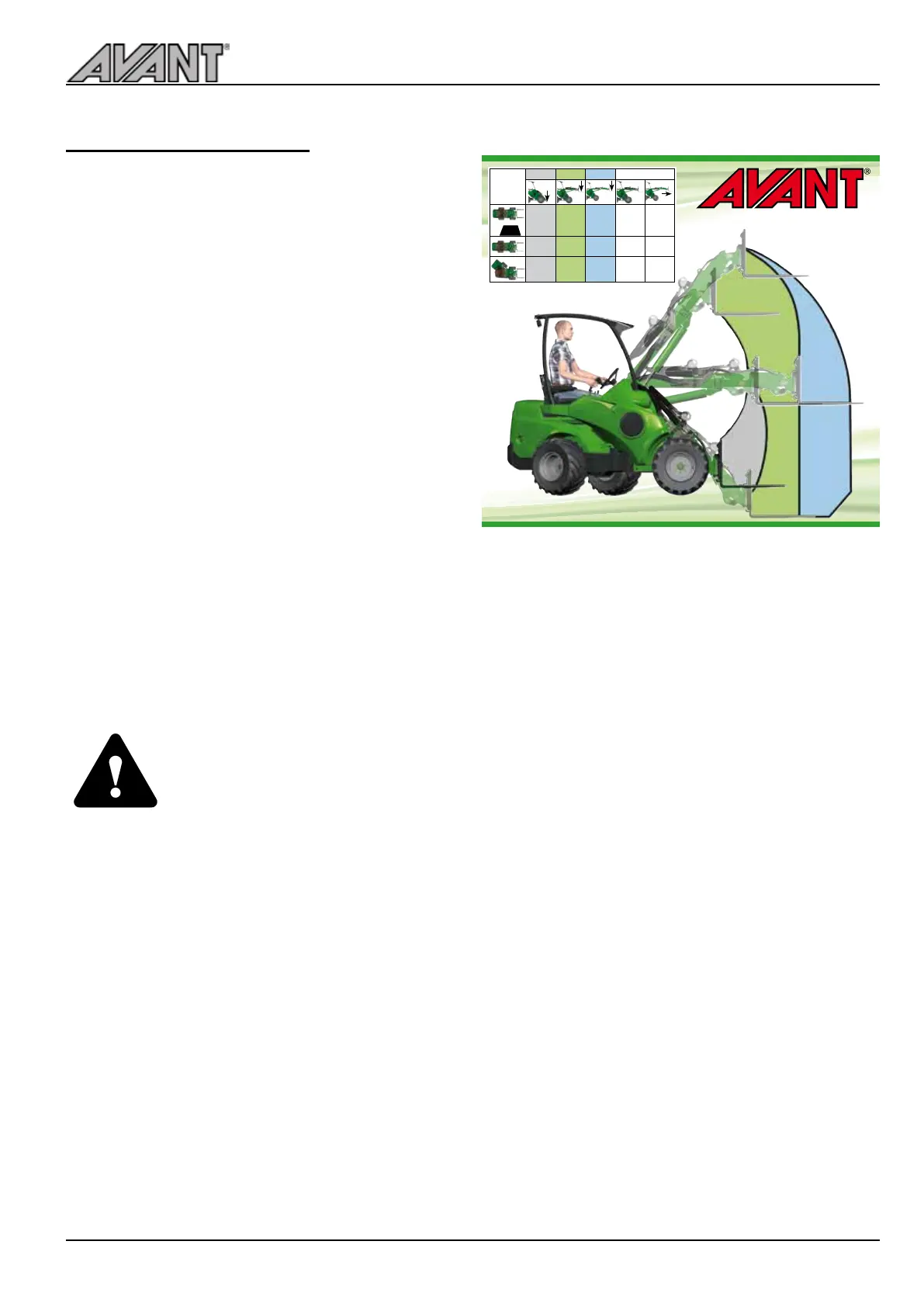

Rated operating capacity
Different loader congurations, rows in the label:
1. Loader frame in straight position, standard
counterweight tted
2. Loader frame in fully articulated position, standard
counterweight tted
Different positions of the loader boom, columns in the
label:
1. Maximum tipping load, stability when lifting load just
off the ground
2. Boom lifted to horizontal position (least stable
position)
3. Rated operating capacity in pallet fork application
1 2 3
420
kg
1 2 3
Rated Operating Capacity
790 550 370 280 180
650 450 290 220 150
540 370 230 180 120
o
+
80 kg
A419541
ISO 14397-1
Tipping load
Rated operating capacity (ROC)
The loader In max. articulation
Driver 75 kg
WARNING
