AVANT 423 - Dashboard: Indicators, Gauges, and Switches

26
400 Series

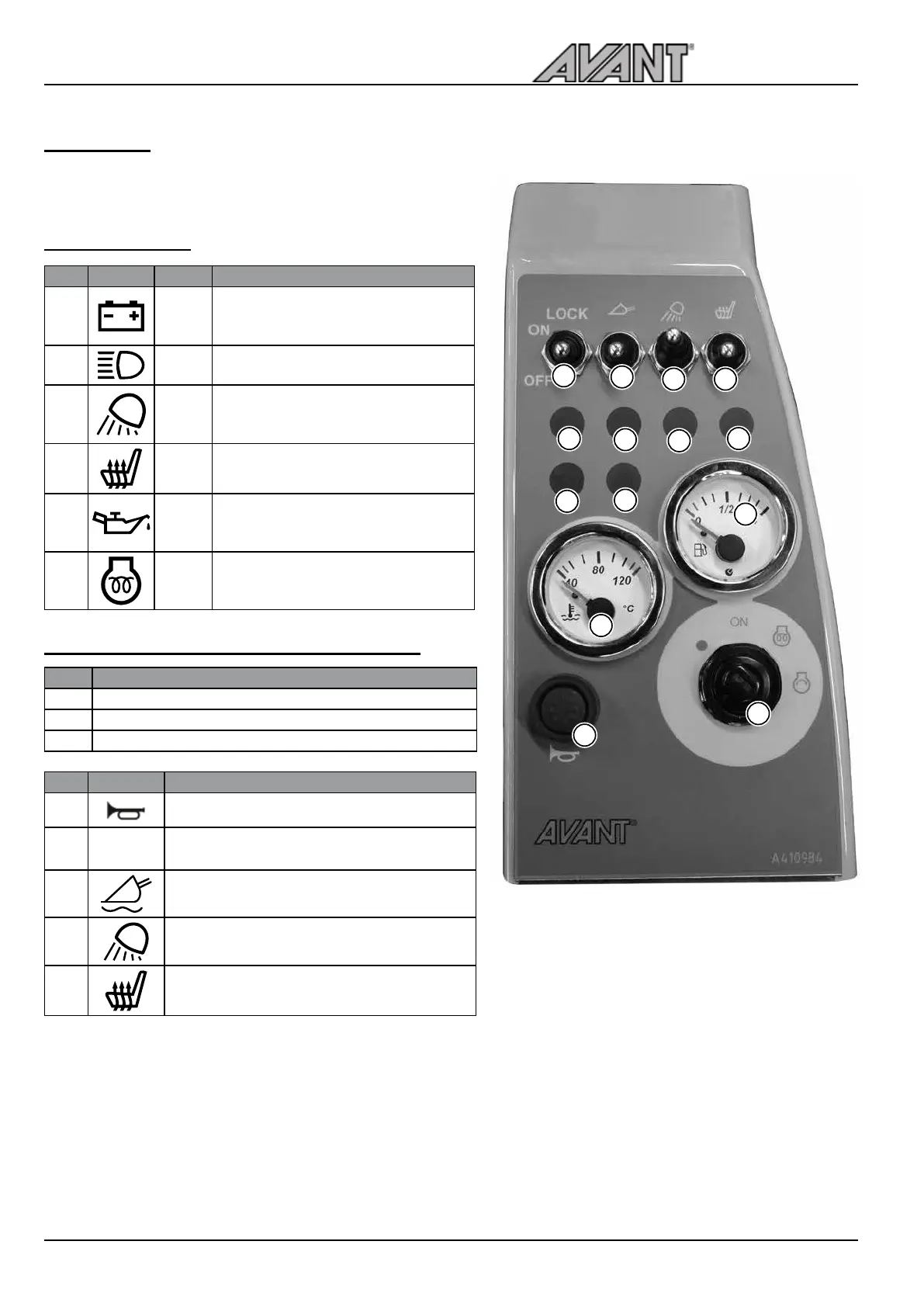

Dashboard
On the dashoard on the right side of the driver’s seat are mounted
gauges, indicators and switches which help you to control the loader.
Operating instructions
Indicator lights
Ref. Symbol Color Remarks
1 Red
Charge indicator
Alternator low charging voltage
warning. Contact service.
2
Blue
High beam headlights on
Road trafc light kit only
3 Green
Work lights on
Work light switch at lower part of
dashboard
4
Green Seat heater on
5
Red
Oil pressure low warning
Stop engine immediately to avoid
severe engine damage. Contact service.
6 Yellow Glow plug indicator
Gauges and switches on the dashboard
Ref Gauge
10 Fuel gauge
11 Thermometer - Engine coolant temperature
12 Ignition switch - See page 35
Ref. Symbol Switch
13
Signal horn
14
LOCK
Drive release valve switch. See page 29
15
Boom oating switch (optional extra)
16 Work light switch
17
Seat heater switch
3
17
14
15
5
2
4
6
1
11
13
12
10
16
