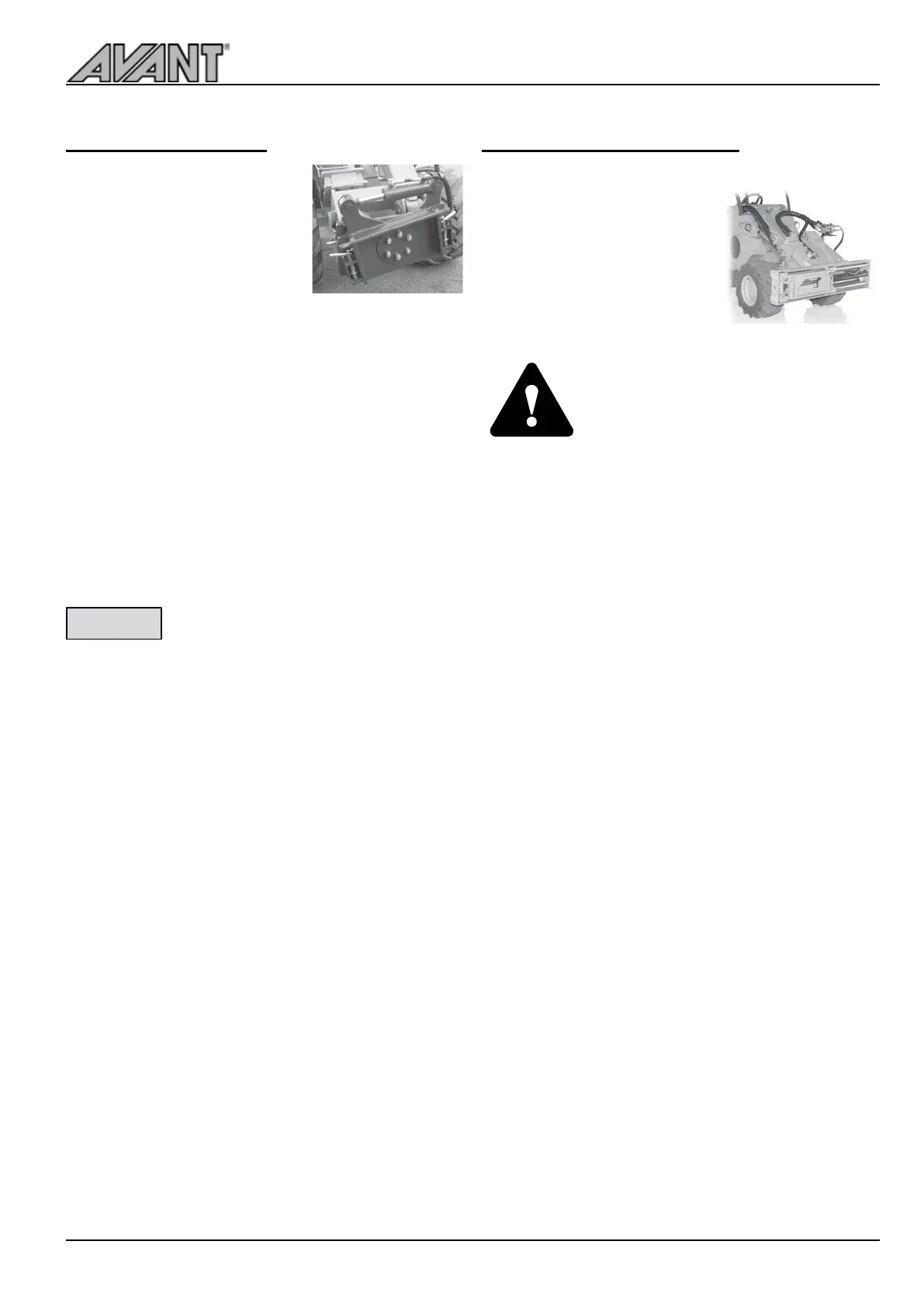

AVANT 423 - Tilt Adapter

31
400 Series Operating instructions
Tilt adapter (option)
A hydraulic tilt adapter can be
mounted between the attachment
and the attachment coupling
plate. It makes it possible to tilt
the attachment sideways from the
driver’s seat.
• Tilt adapter A34148, tilting angle ±12.5°
• Tilt adapter A36505, tilting angle ±45°
• Rotating adapter A424406, continuous 360°
Tilt adapter is intended mainly for non-hydraulic
attachments. With the optional double acting extra
auxiliary hydraulics outlet in the front it is possible to mount
a hydraulically operated attachment (e.g. a 4 in 1 bucket)
at the same time.
See the operator’s manual of each attachment for
recommendations about the use of the tilt adapter.
Tilt adapter is operated with the auxiliary hydraulics control
lever. If the tilt adapter is connected to the optional extra
auxiliary hydraulics outlet in the front, see page 33 in this
manual for instructions about use.
Tilt adapters increase the distance
of the load from the loader, thus they
decrease the tipping load of the loader.
Use tilt adapters only when needed to
complete specic tasks.
Side shift adapter (option)
A side shift adapter is a coupling
bracket that makes it possible to
operate an attachment off the the
centerline of the loader. There are
two kinds of side shift adapters
available (as of 5/2018):
• Fixed side shift adapter models
• Hydraulic side shift adapter
Risk of tipping over - A side shift
adapter decreases the sideways
stability of the loader signicantly.
Use all adapters only for specic tasks,
as instructed in the operator’s manuals
of each attachment. Remove all
adapters for general use of the loader.
Adapters decrease lateral stability of
the loader and must be used only on
level ground.
WARNING
NOTICE
