55
400 Series
Maintenance and service

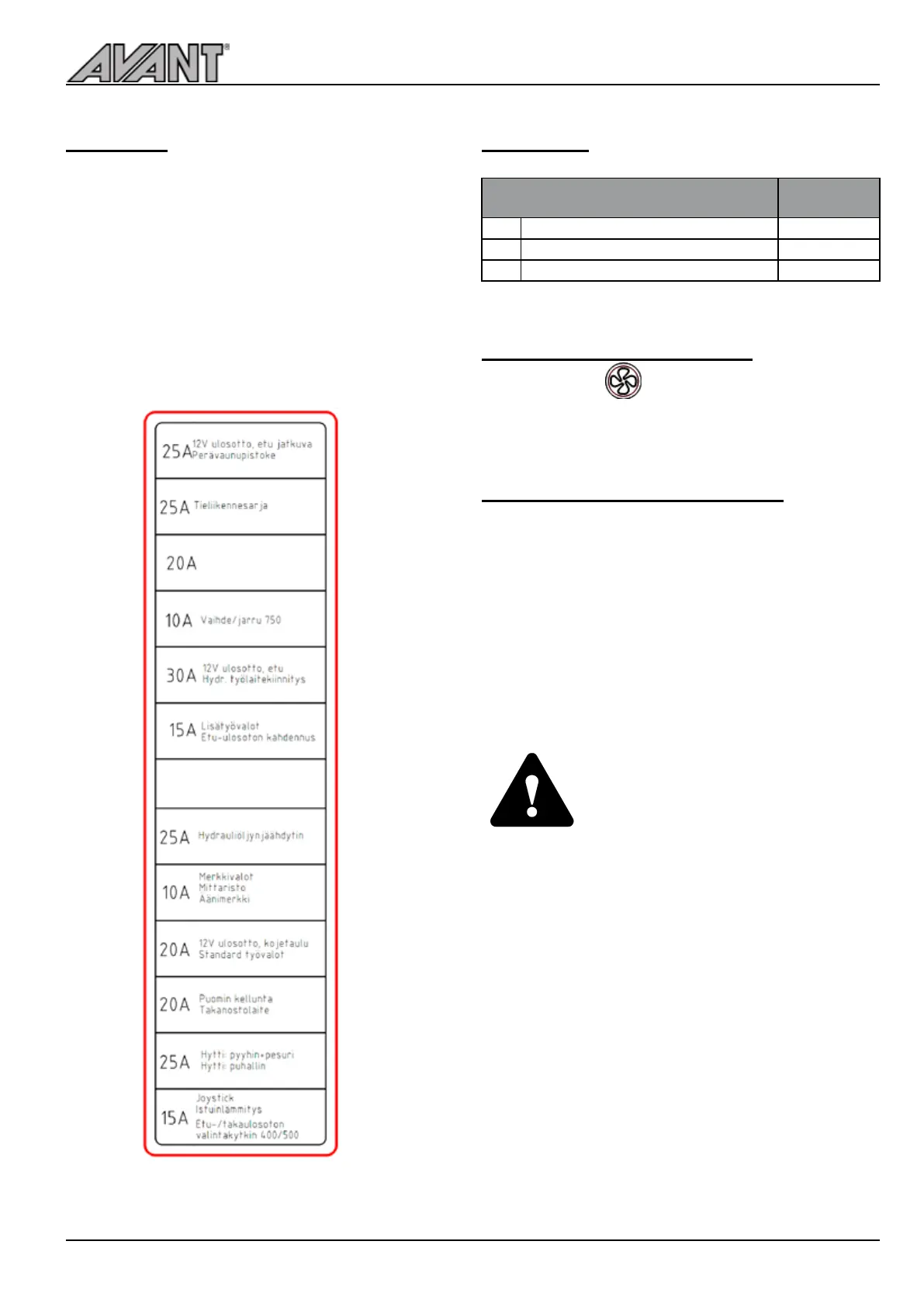

Main fuses
In the event of electric malfunction, always check the
fuses rst. If fuse is blown repeatedly, search for cause of
burning fuse. Electric cables may be damaged. Contact
Avant service, if necessary.
Main fuse box L and ROPS
located outside the cab, on the right side of the loader
boom. Lift the boom rst for easier access to the main
fuses, if possible. Remember to use the service support.
If the boom cannot be lifted, the fuses can be checked
after removing the right side cover plate.
Light bulbs
Hydraulic oil cooler fan fuse
The red indicator on the dashboard indicates blown
hydraulic oil cooler fan fuse. If the indicator is lit, check
the 25A fuse of the oil cooler fan. Contact Avant service if
necessary.
Jump start and auxiliary power
The engine can be started with auxiliary power if necessary,
by using appropriate (strong enough) jump start cables.
1. Connect rst one end of the positive cable to thepositive
(+) post of the dead battery.
2. Connect the other end of the positive jumper cableto the
positive (+) post of the charged battery.
3. Connect one end of the negative jumper cable tothe
negative (-) post of the charged battery.
4. Connect the other end of the negative jumpercable to
a solid, non-paint coated metal part of theengine of the
dead loader, as far from the deadbattery as possible.
Read Operator’s manual of the vehicle
that is giving auxiliary power, in order
to make sure that the vehicle is suited
for that. The vehicle can get damaged
when giving auxiliary starting power.
Never bypass battery or connect
cables directly to starter motor. Engine
may get damaged.
Light bulb Part no.
Lamp type
1. Front light 1000 lumen 66266
2. Work light 700 lumen (option) 66068
3. Work light 2500 lumen (option) A419163
CAUTION
