Avanzini Drago PZERO - 4.5. MAIN COMPONENTS

CHAPTER 4
Instructions, use and maintenance manual
Page 28
Drago PZero

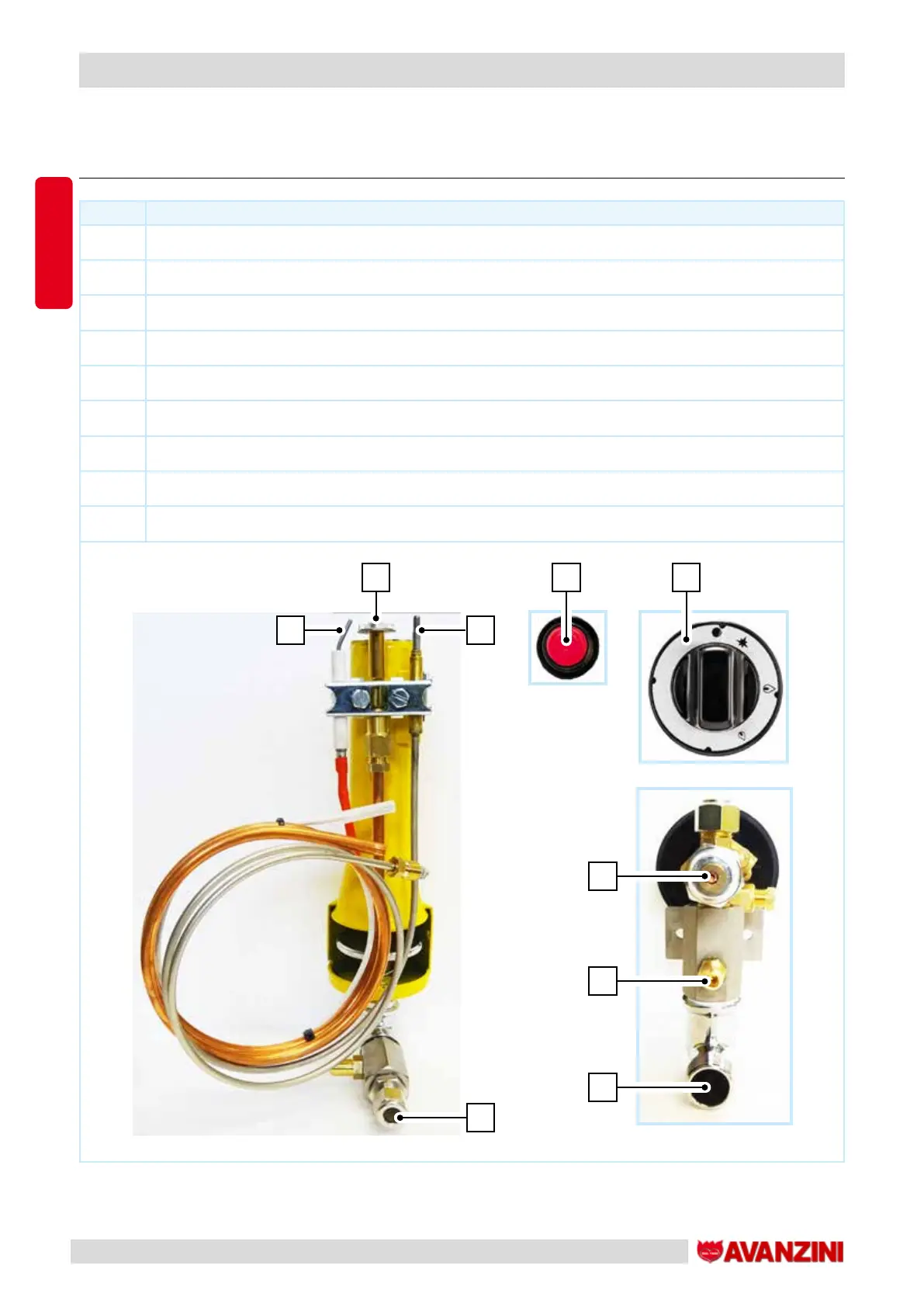

4.5. MAIN COMPONENTS
POS. ELEMENT
1 IGNITION KNOB AND FLAME ADJUSTMENT
2 PILOT FLAME IGNITION BUTTON OR ON BUTTON
3 THERMOCOUPLE TIP
4 GAS CONNECTION FITTING Ø 8 mm
5 IGNITION ELECTRODE
6 3-POINT PILOT FLAME
7 GAS SUPPLY 1/2”
8 GAS PRESSURE INLET
9 THERMOCOUPLE CONNECTION
5
4
6 2 1
3
8
9
7
