Drago PZero

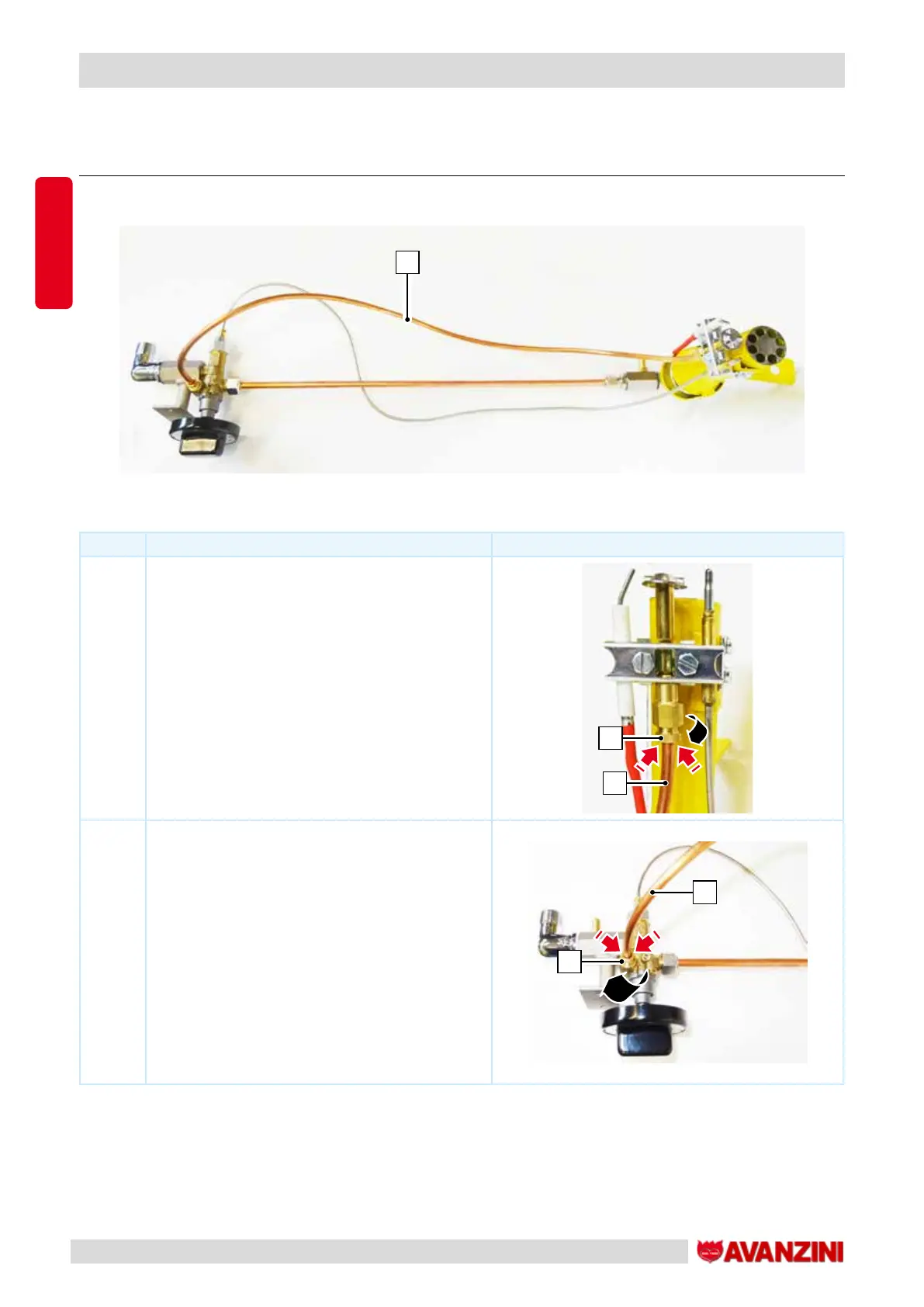

5.8.3. COPPER PIPE (PILOT FLAME) CONNECTION FROM THE BURNER TO
THE VALVE UNIT
F
Make the connection by following the steps below:
STEP ACTION PICTURE
1
Insert the copper pipe “F” into the grip point “G”
of the burner and tighten nut “G” with a spanner.
F
G
2
Insert the copper pipe “F” in the valve unit “H”
and tighten nut “H” with a spanner.
F
H
