CHAPTER 5
Instructions, use and maintenance manual
Drago PZero
Page 41

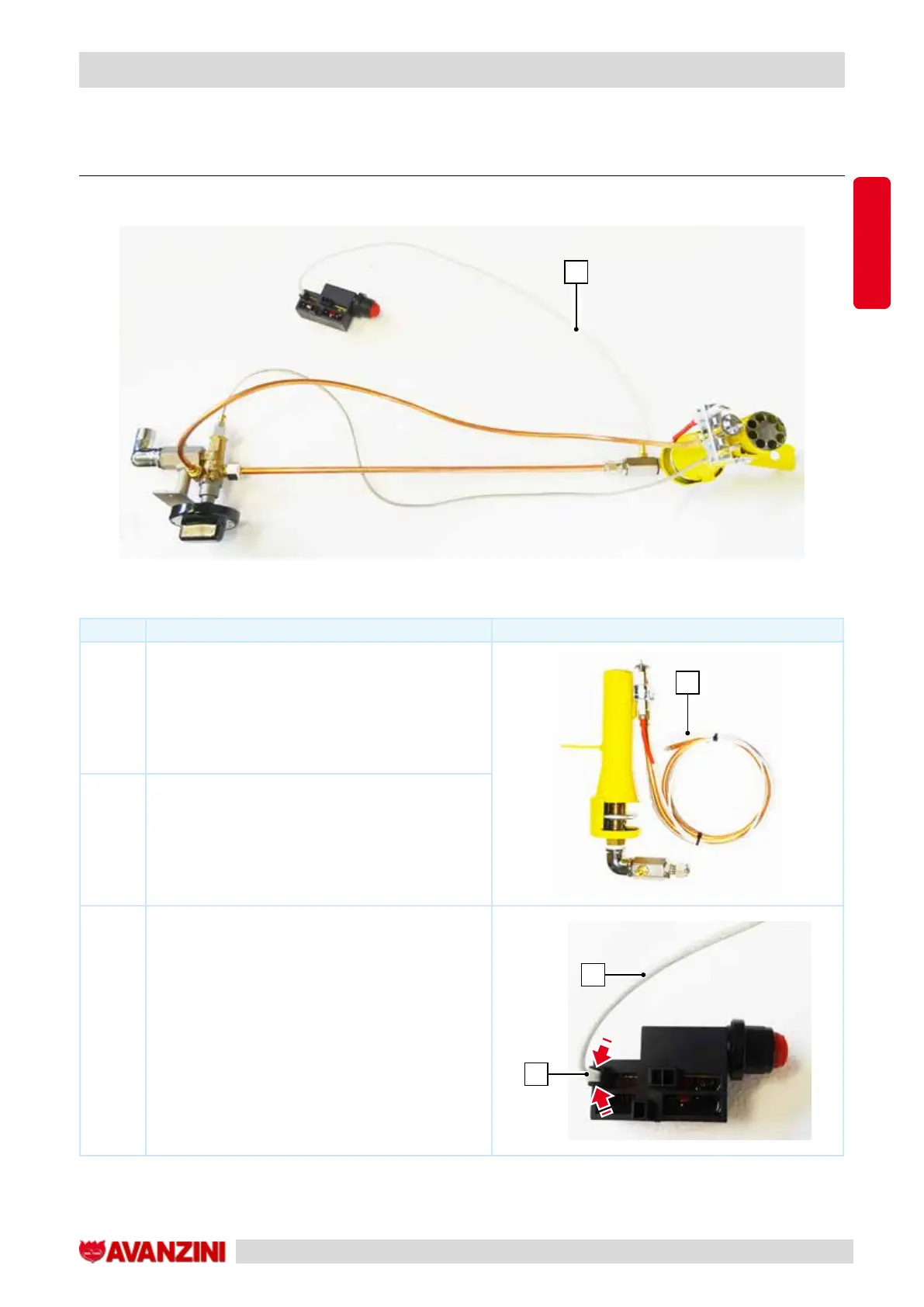

5.8.4. IGNITION ELECTRODE CONNECTION FROM THE BURNER TO THE
VALVE UNIT
I
Make the connection by following the steps below:
STEP ACTION PICTURE
1 Cut the plastic clamp that holds the cable.
I
2
Completely unroll the white cable “I” leaving
the burner.
2
Insert the end of the white cable “I” into the
connection point “L” of the trigger button.
NOTE: If necessary, secure the cable along its
path with plastic clamps, without tightening them.
Do NOT use metal clamps that could short-circuit
the electrical ignition.
L
I
