CHAPTER 5
Instructions, use and maintenance manual
Drago PZero
Page 39

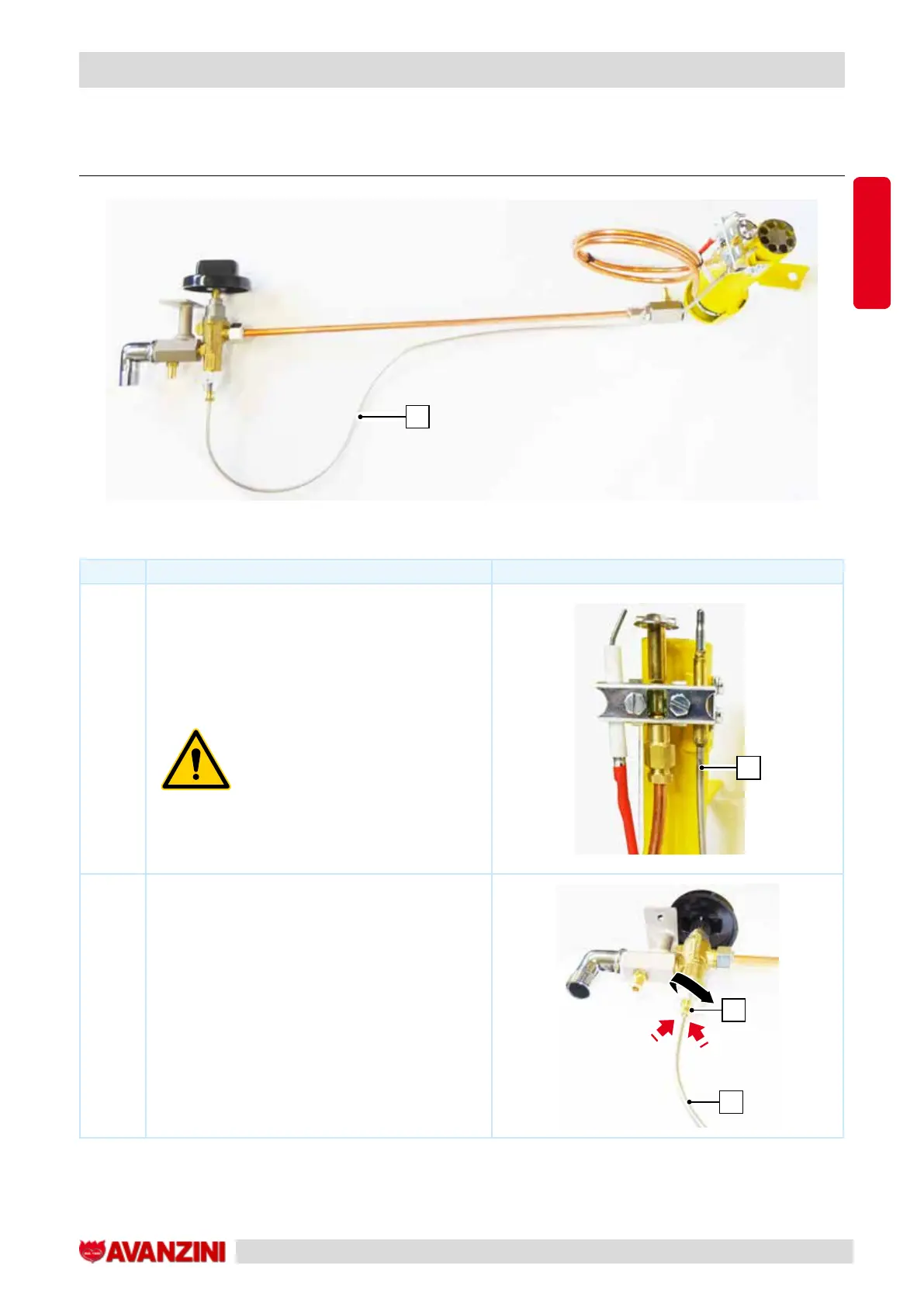

5.8.2. THERMOCOUPLE CONNECTION FROM THE BURNER TO THE VALVE UNIT
D
Make the connection by following the steps below:
STEP ACTION PICTURE
1
Unroll the thermocouple “D” leaving the burner.
CAUTION!
Be careful to shape the
thermocouple with wide
curves so as not to damage it.
D
2
Insert the screw-on end of the thermocouple “D”
to the grip point “E” of the valve unit and tighten it
gently with a spanner.
D
E
