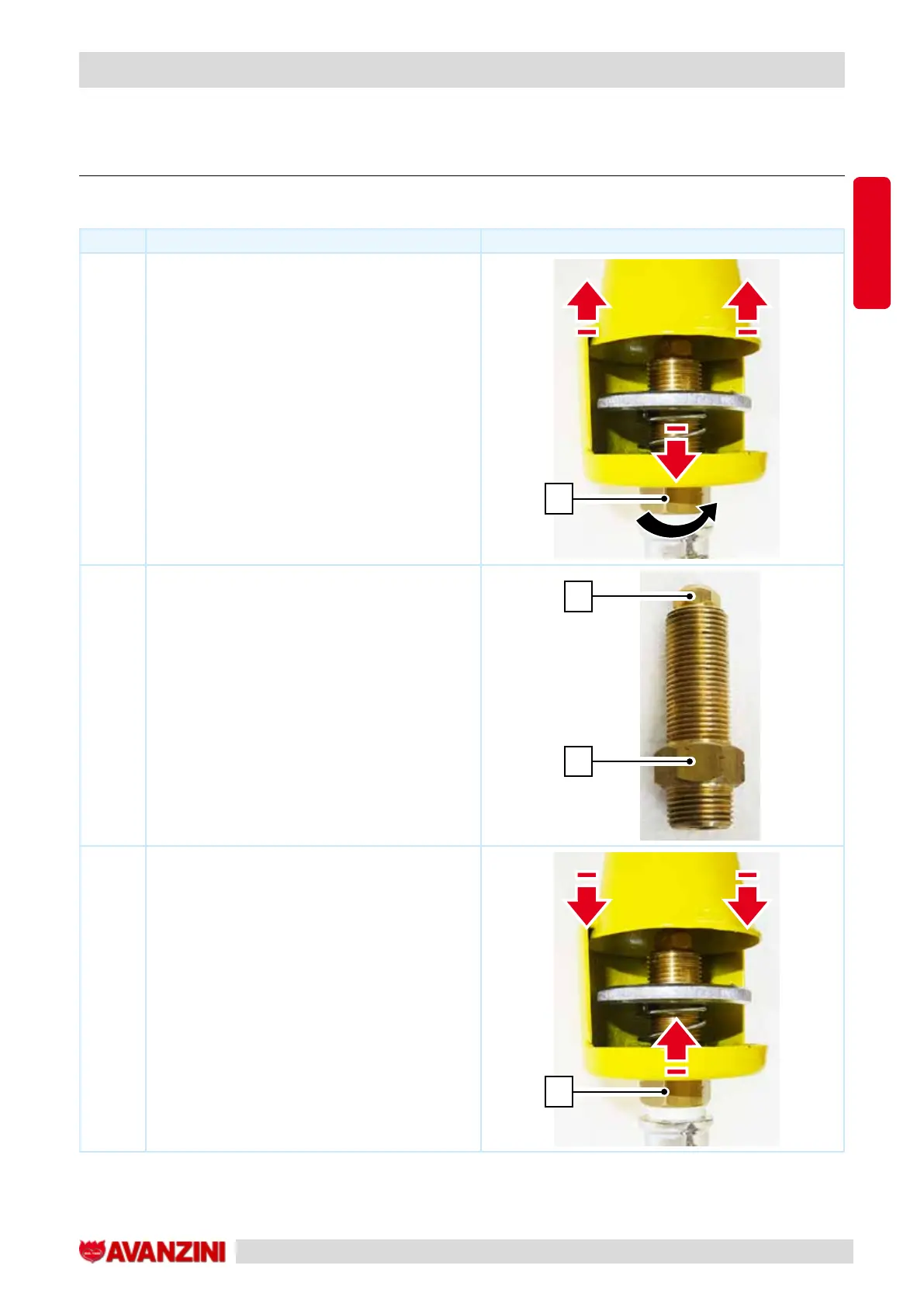

7.5.2. NOZZLE REPLACEMENT
For the gas nozzles replacement procedure, carry out the operations described below:
STEP ACTION PICTURE
1
Use a 20 mm spanner to loosen the stud bolt
“A” and remove it from the burner.
A
2
Use an 11 mm spanner to unscrew nozzle
“B” from stud bolt “C”, and replace the nozzle
required for the type of gas.
B
C
3
Use a spanner to tighten stud bolt “A” to the
burner.
