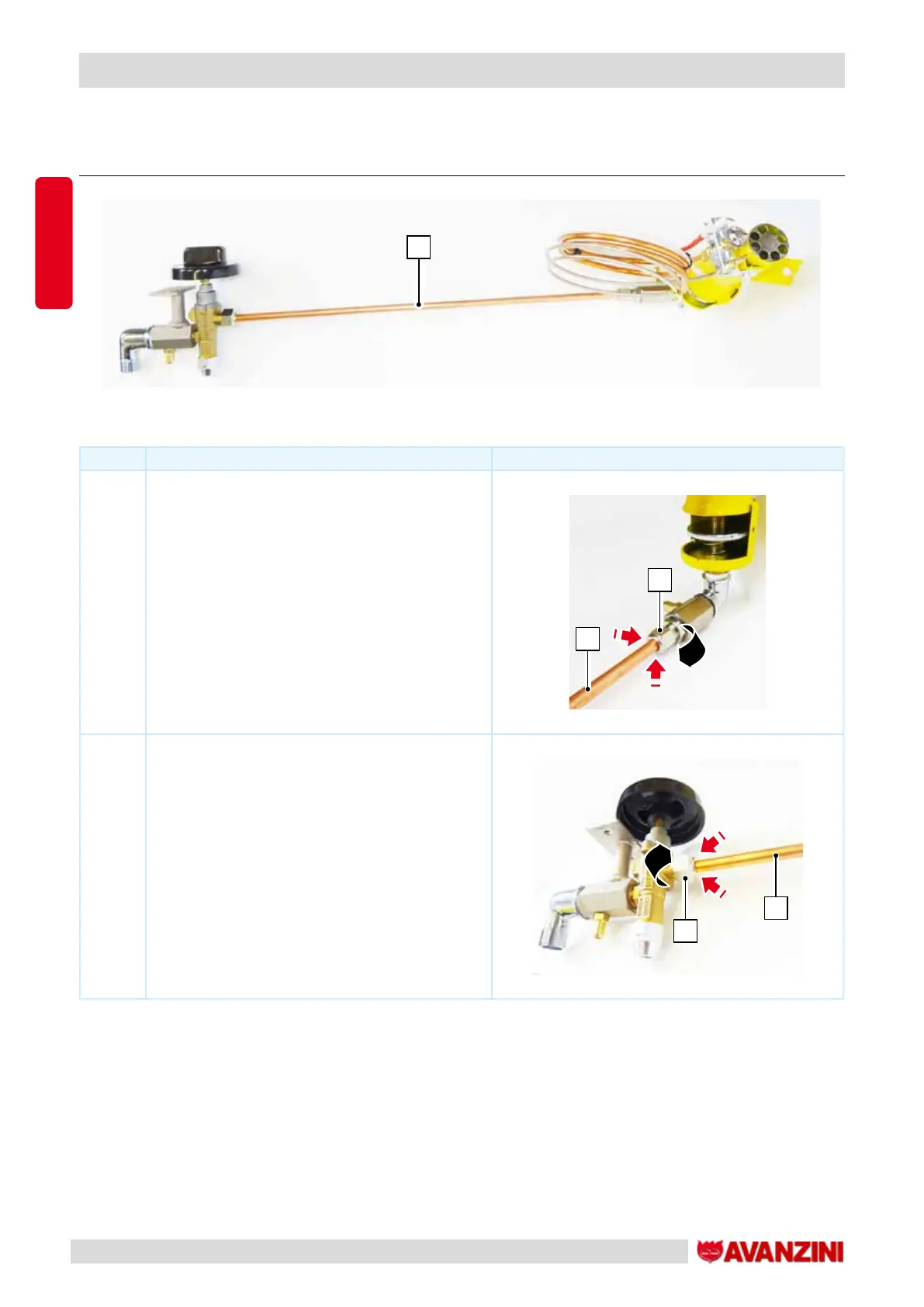

5.8.1. GAS PIPE CONNECTION FROM THE BURNER TO THE VALVE UNIT
A
Make the connection by following the steps below:
STEP ACTION PICTURE
1
Insert the copper pipe “A” into the grip point “B”
of the burner and tighten nut “B” with a spanner.
B
A
2
Insert the copper pipe “A” in the valve unit “C”
and tighten nut “C” with a spanner.
A
C
