CHAPTER 5
Instructions, use and maintenance manual
Page 42
Drago PZero

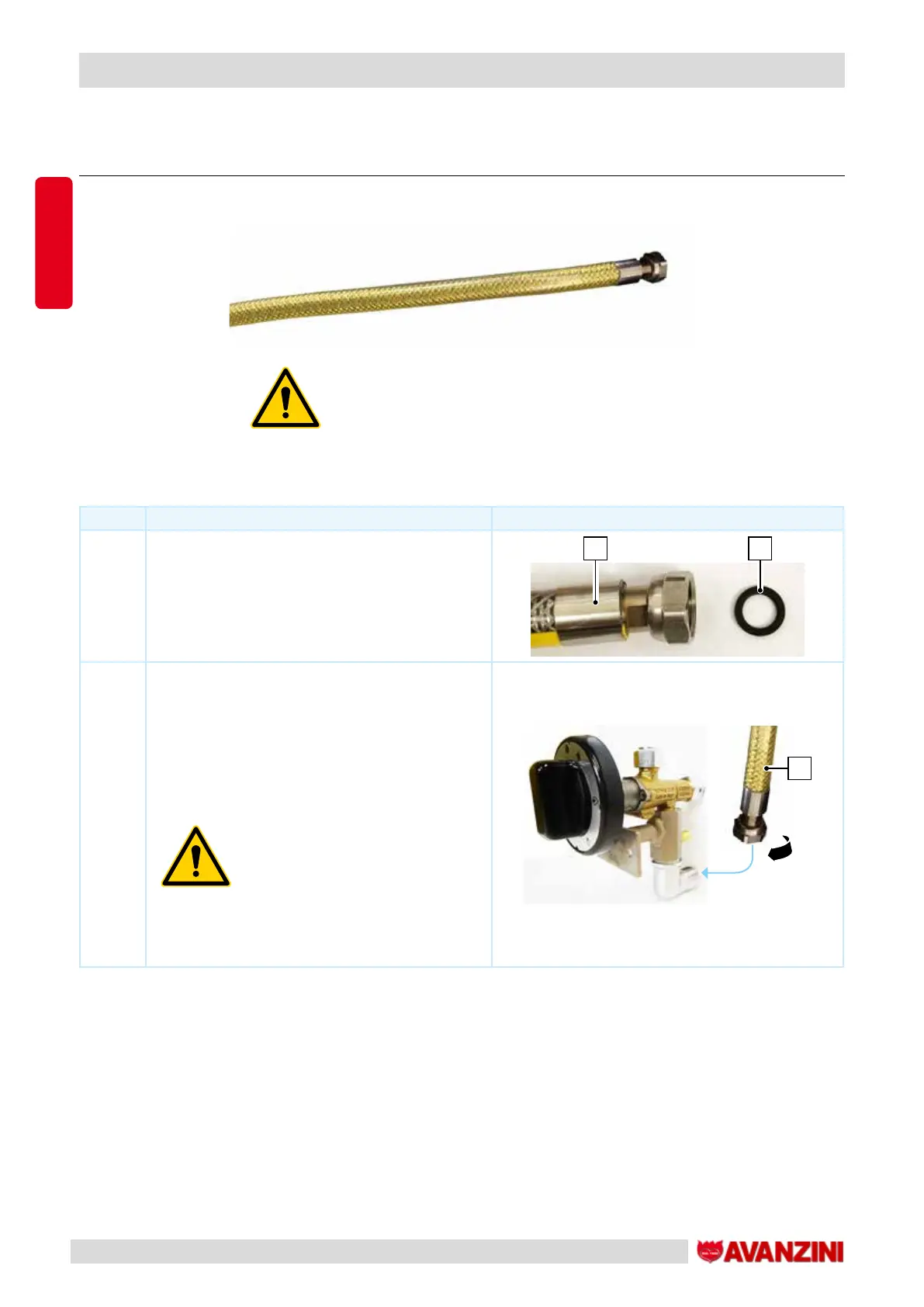

5.8.5. GAS PIPE CONNECTION FROM THE VALVE UNIT TO THE DISTRIBU-
TION SYSTEM
CAUTION!
PIPE NOT SUPPLIED, BUT CAN BE
REQUESTED AS AN OPTIONAL ACCESSORY.
Make the connection by following the steps below:
STEP ACTION PICTURE
1
Take the end of the 1/2” connection pipe “O”
(optional - NOT SUPPLIED) and its gasket “P”.
O P
2
Insert the gasket “P” and tighten the 1/2”
connection pipe “O” (optional - NOT SUPPLIED)
to the valve unit.
CAUTION!
The connection pipe “O” must
be long enough between the
valve unit and the distribution
system:
• min: 50 cm;
• max: 200 cm.
O
