Avaya CMC1 - PRI-To-BRI Converter

Adding or Removing Hardware
342 Installation, Upgrades and Additions for Avaya CMC1 Media Gateways
PRI-to-BRI converter
Figure 110 shows typical connections from the PRI-to-BRI converter to the coaxial facility. The
Communication Manager administration PC is connected to the RS-232 connector on the front
of the PRI converter circuit pack.

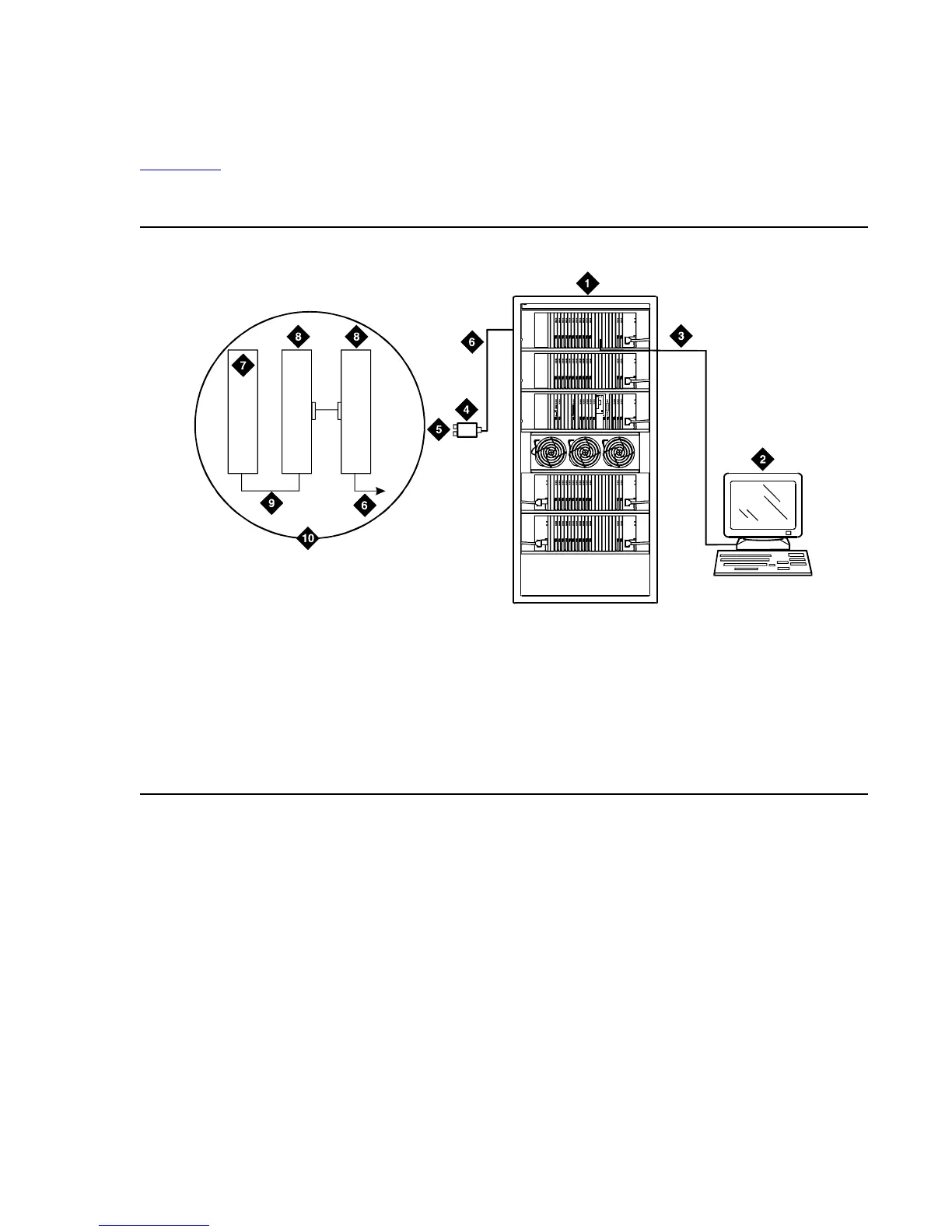

Figure 110: Typical PRI to BRI converter cabling
Note:
Note: The inset shows details of the cable connections between the circuit packs.
Figure notes:
1. TN464GP DS1 circuit pack and PR-to-BRI
converter circuit pack
2. Communication Manager administration PC
3. RS-232 cable to front of converter circuit
pack
4. 888B 75-ohm coaxial converter
5. Coaxial connection to 2-Mbps facility
6. Coaxial cable from PRI converter
circuit pack to coaxial converter
7. TN464GP circuit pack
8. PRI-to-BRI converter circuit pack
9. Jumper coaxial cable
10. Inset showing connections on
rear of carrier
ALARMS
EMERTR
C
A
R
D
I
N
U
S
E
ENTER /YES
NEXT /NO
BACK
AUDIX
BOOT/ SHUTDOWN
0022
_
1 PDH 062596
7
(2B+D)
1
(2B+D)
8
(2B+D)
