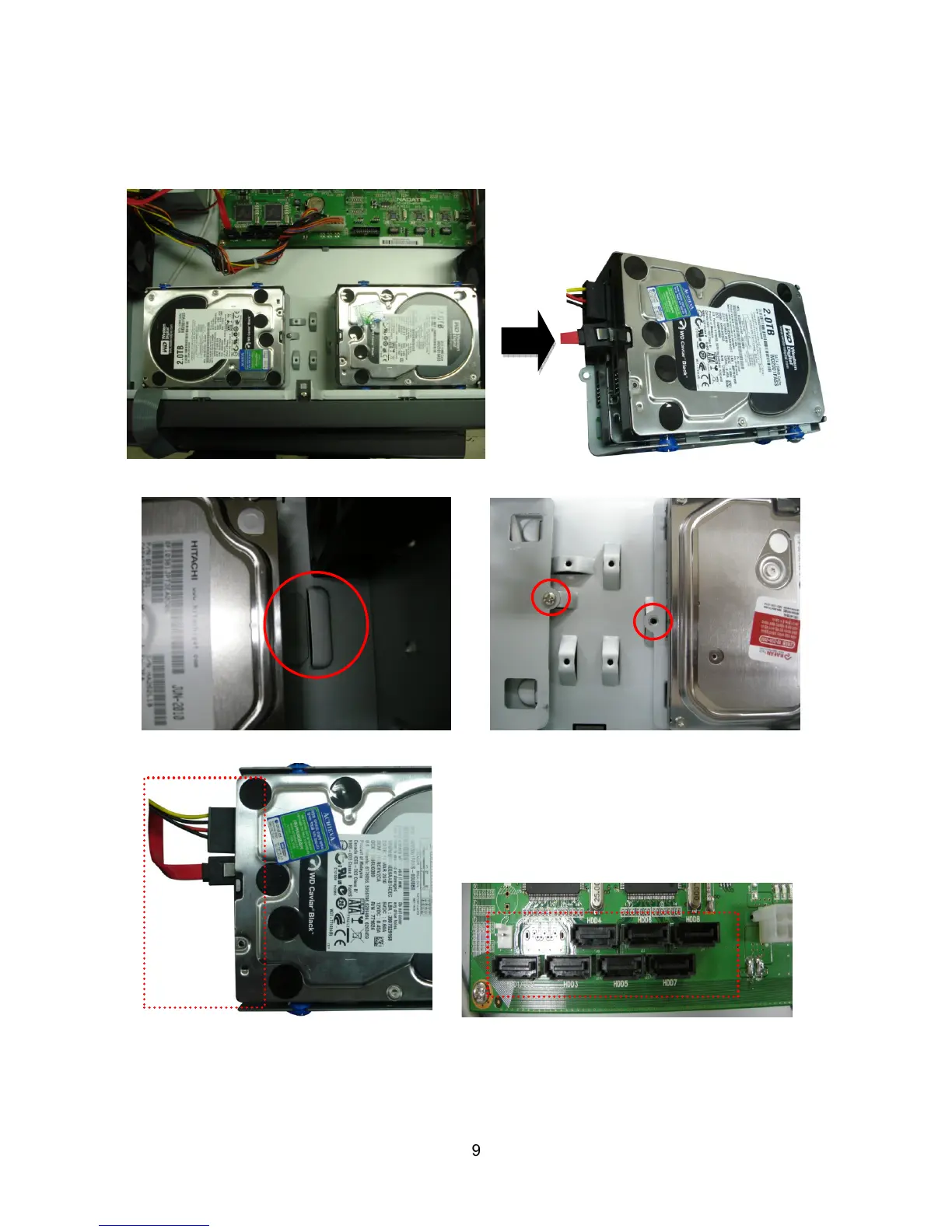

Mounting HDD or DVDRW (8 &16 ch)
1. Mount the HDD(DVDRW) into the mounting bracket as specified below.
2. Insert the HDD(DVDRW) bracket and mounting screw as specified below.
3. Connect the HDD SATA and HDD power cable as specified below.
NOTE) A system has DATA ports like the above red box. (A number of port could be different from a model.) It
would be better when installing the first HDD to HDD1 port because the system recognizes the first HDD as a
master HDD. For a system stability, it would be better to keep the position and a number of HDD at the first
installation. The system has to be power off to add or remove some HDD in use, unavoidable.
